Snapper NX100 7800971-00 Handle Group

Name: Snapper NX100 7800971-00 Handle Group
SKU: nx100_7800971_00_handle_group-group
Price: 2.24 GBP
Availability: InStock

Part No. nx100_7800971_00_handle_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

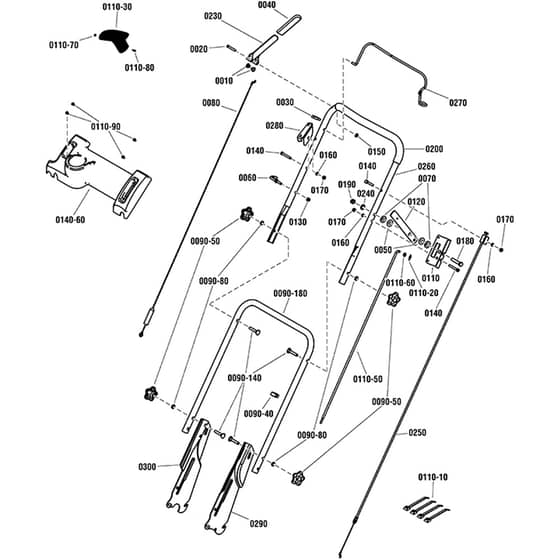

Snapper NX100 7800971-00 - Handle Group - Parts Diagram

	Part No.	Details
10	BP7014343YP Available to backorder	Flange .27 Id X .35 X .4	£3.35 £2.79
20	SN704031 Available to backorder	1/4 X 1.5”	£3.48 £2.90
30	SN7026219YP Available to backorder	7/8” Double Cable Clamp	£3.71 £3.09
40	BP7028407YP Available to backorder	International Symbol	£6.02 £5.02
50	SN704004 Available to backorder	.406 Id X 1.0 Od X .063 Thk	£2.89 £2.41
60	BP7028488MA Available to backorder	1/4-20	£5.80 £4.83

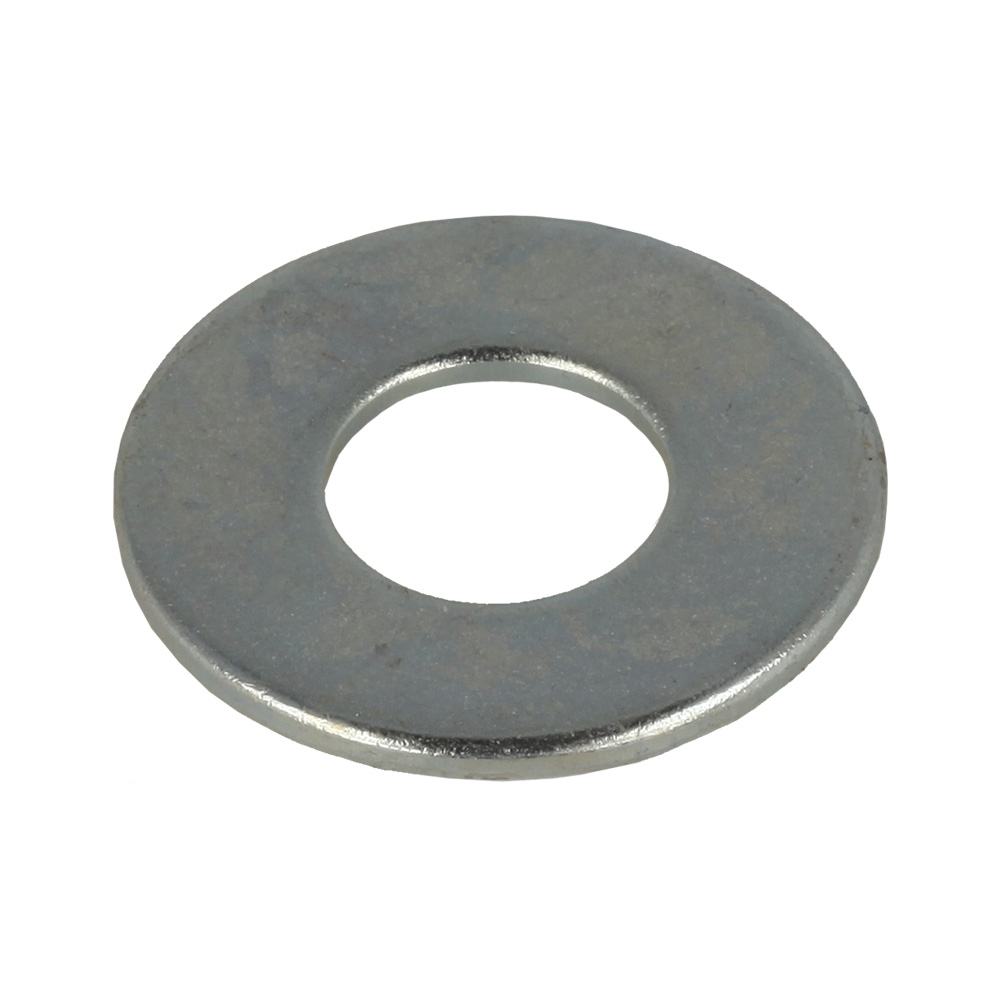

70	SN703964 Available to backorder	7/16” Id	£3.34 £2.78
80	SN7034604YP Available to backorder	Clutch Control	£20.71 £17.26
110	BP7074003YP Available to backorder	Shift	£7.68 £6.40
120	BP7074113YP Available to backorder	Shift Lever	£9.35 £7.79
130	SN703232 Available to backorder	Hex Lock	£2.89 £2.41
140	SN703234 Available to backorder	Hex Head	£2.98 £2.48
150	SN704005 Available to backorder	1/4”	£2.75 £2.29
160	SN703462 Available to backorder	1/4 Internal Tooth Lock	£2.69 £2.24
170	SN703127 Available to backorder	Hex	£2.69 £2.24
180	SN703589 Available to backorder	3/8-16X2 Capscrew	£3.46 £2.88
190	SN703347 Available to backorder	3/8-16	£2.98 £2.48
200	BP7023810YP Available to backorder	18.75” Foam Grip	£11.81 £9.84
230	BP7074473BMYP Available to backorder	Clutch Handle	£11.59 £9.66
240	SN704006 Available to backorder	3/8” Id X 3/4” Od	£2.75 £2.29
250	SN7106257YP Available to backorder	Opc	£20.86 £17.38
260	SN7106258AYP Available to backorder	Upper	£108.48 £90.40
270	SN7106255AYP Available to backorder	Opc	£37.16 £30.97
290	SN7033985AYP Available to backorder	Lower	£53.00 £44.17
300	SN7033986AYP Available to backorder	Lower	£37.16 £30.97
9040	SY7023813SM Available to backorder	Wiring Harness Clip	£3.41 £2.84

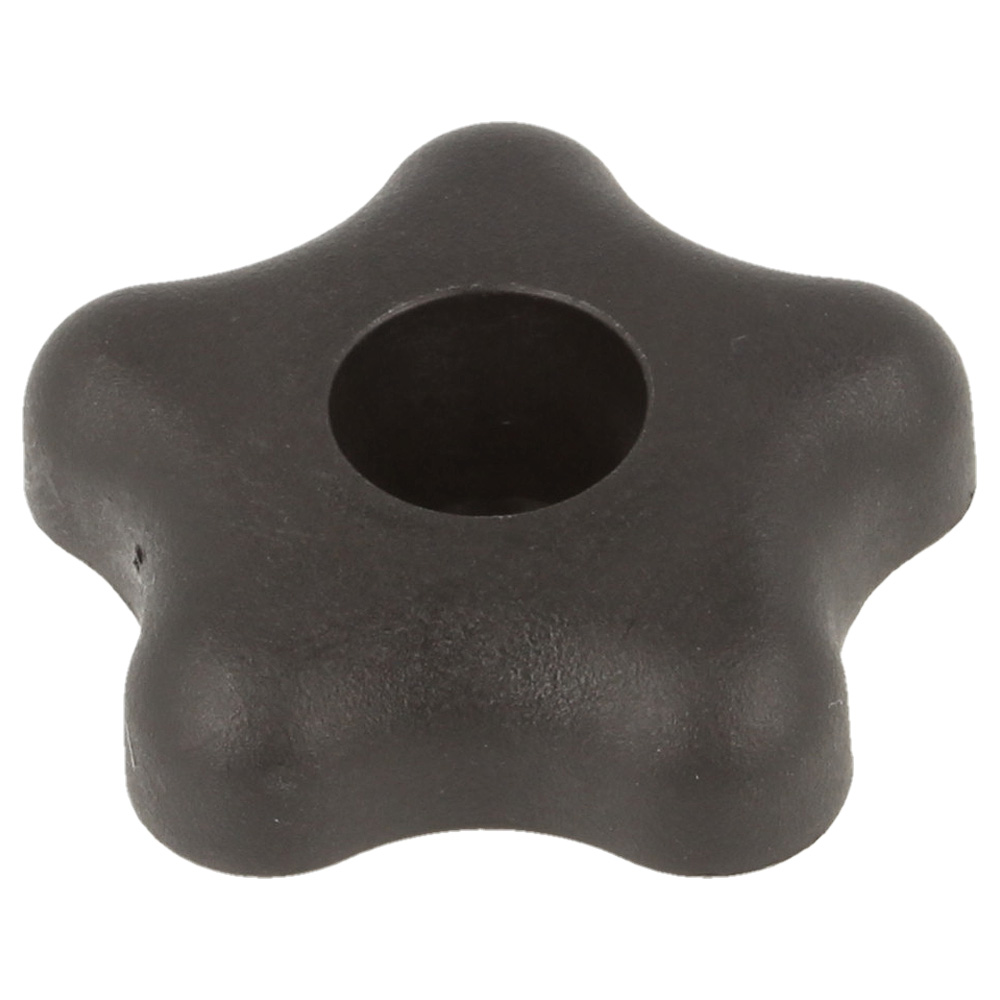

9050	SN7105085YP Available to backorder	5 Prong	£4.26 £3.55
9080	SN703587 Available to backorder	5/16	£2.69 £2.24
11010	SN7024641YP Available to backorder	5.5” L Wire Tie	£5.00 £4.17
11020	SN704030 Available to backorder	5/16 X 1.044	£3.19 £2.66
11030	BP7075182YP Available to backorder	Shift	£7.54 £6.28
11050	SN7074133YP Available to backorder	Speed Control (35.5” L	£25.00 £20.83
11060	SN703350 Available to backorder	Washer	£2.69 £2.24
11070	SN703460 Available to backorder	Hex	£2.69 £2.24
11080	BP703351 Available to backorder	#8-32 X 0.50	£5.44 £4.53
11090	SN7900067YP Available to backorder	1/4-20 X .550	£2.75 £2.29
14060	BP7106275YP Available to backorder	Dash	£83.64 £69.70
90140	SN703059 Available to backorder	5/16-18 X 2.00 Conical Head	£3.41 £2.84
90180	SN7106232AYP Available to backorder	Middle	£99.12 £82.60
