Snapper NX100 7800971-00 Drive System

Name: Snapper NX100 7800971-00 Drive System
SKU: nx100_7800971_00_drive_system-group
Price: 2.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Snapper NX100 7800971-00 - Drive System - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	BP703118 Available to backorder	Flat	£3.34 £2.78
30	SN704008 Available to backorder	1.0 Id X 1.25 Od X 0.125 Thk O-Ring	£2.75 £2.29
40	BP7012114SM Available to backorder	Differential Bushing	£3.78 £3.15
70	SN704009 Available to backorder	Split	£3.12 £2.60

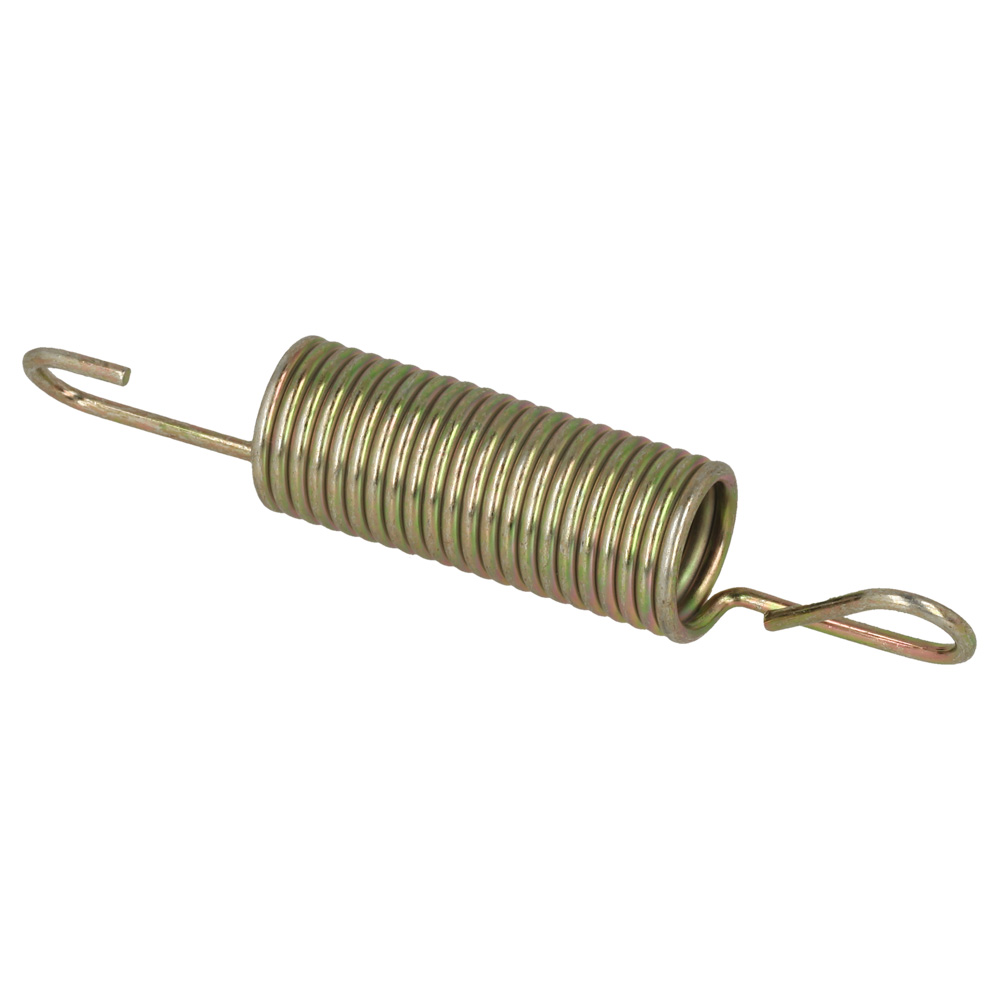

80	SN7029025YP Available to backorder	Extension	£9.96 £8.30
90	BP7031809YP Available to backorder	Bearing (Outer Half)	£4.76 £3.97
110	BP7073528YP Available to backorder	Steel (Includes Bushing) Drive Disc	£42.08 £35.07
150	SN7034179BMYP Available to backorder	Differential	£16.08 £13.40
170	BP910828MA Available to backorder	5/16-24 X 1 Hex Head Cap	£119.99 £99.99
190	SN704130 Available to backorder	Hex	£2.89 £2.41
210	BP9357MA Available to backorder	Tapping	£4.36 £3.63
220	BP703947 Available to backorder	5/16-18 X .625	£4.04 £3.37
230	BP703409 Available to backorder	5/16-18	£2.88 £2.40
240	SN703896 Available to backorder	5/16-24	£3.04 £2.53
250	SN703167 Available to backorder	Taptite	£5.94 £4.95
260	SN703457 Available to backorder	3/8-16	£2.83 £2.36
290	SN7033985AYP Available to backorder	Lower	£53.00 £44.17
300	SN7033986AYP Available to backorder	Lower	£37.16 £30.97
340	SN703447 Available to backorder	Carriage	£3.04 £2.53
350	SN703350 Available to backorder	Washer	£2.69 £2.24
360	SN7032664YP Available to backorder	Hex Shaft Shield	£11.15 £9.29
11010	SN703971 Available to backorder	0.385 Id X 0.925 Od X 1.018 Thk	£6.31 £5.26
12010	BP703836 Available to backorder	3/8-24 X 2.38	£7.42 £6.18

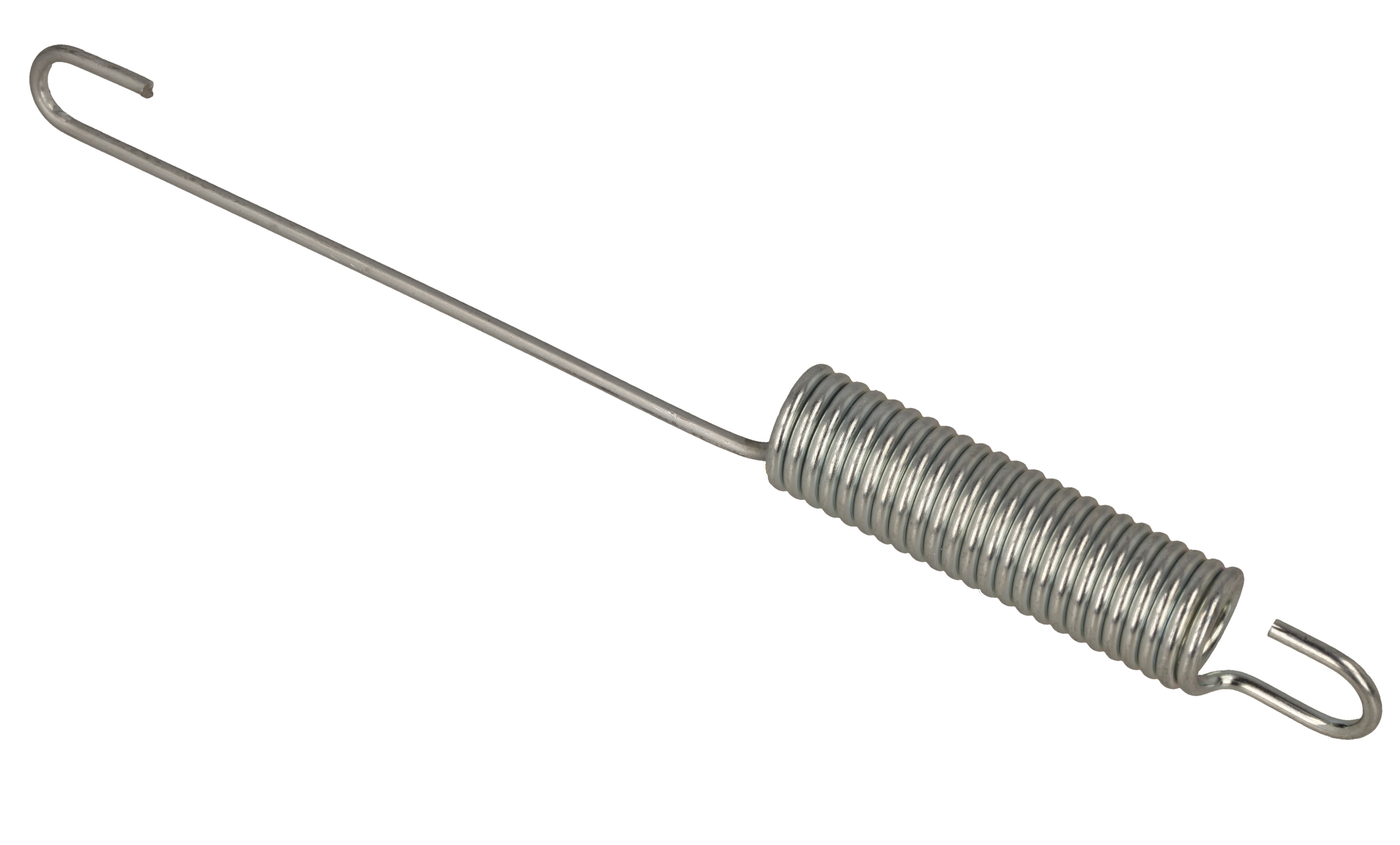

12020	SN7012122YP Available to backorder	Clutch	£10.37 £8.64
12030	BP7012126YP Available to backorder	Idler Torsion Spring	£3.92 £3.27
12040	SN703946 Available to backorder	Flat Washer	£2.98 £2.48
12050	SN703930 Available to backorder	3/8” Internal Tooth Lock	£2.69 £2.24

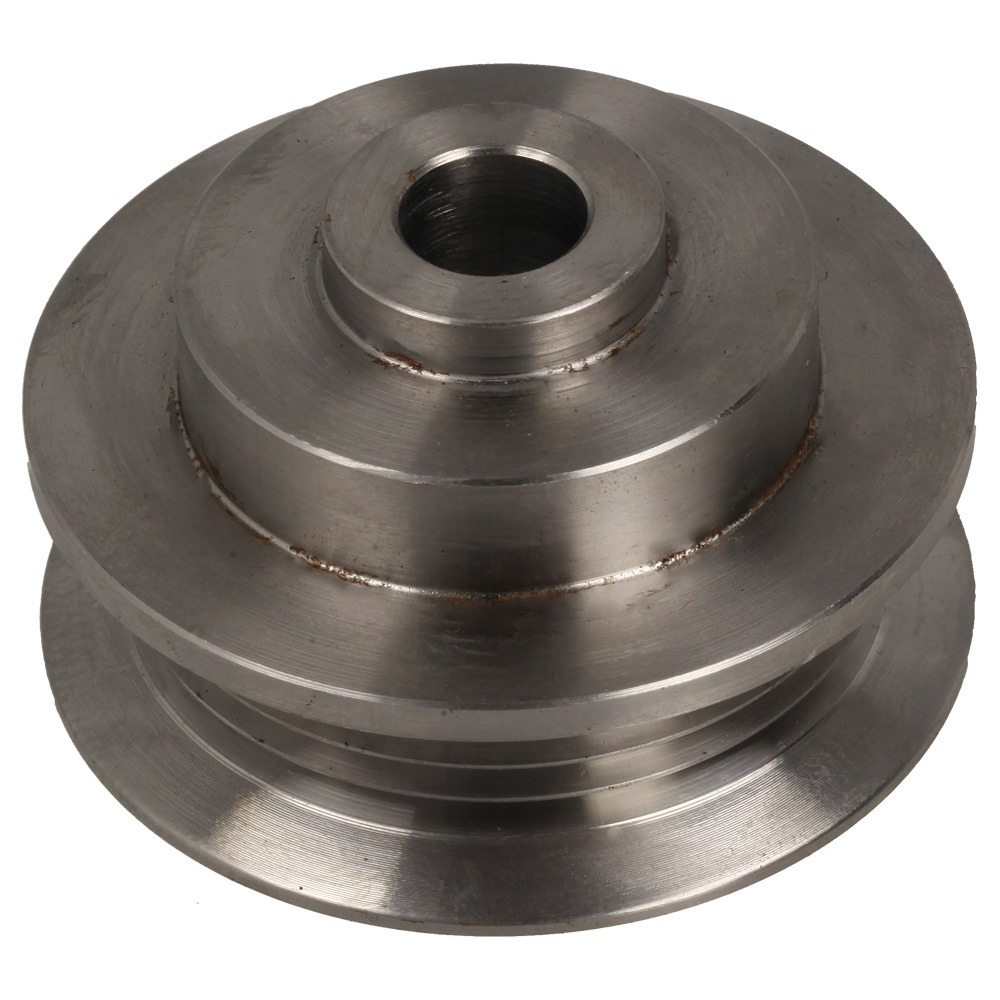

12060	SN7019383YP Available to backorder	Poly-V	£44.28 £36.90
12070	BP7028014YP Available to backorder	Spherical O.D.	£22.38 £18.65
12090	BP7051921YP Available to backorder	Clutch Idler Assembly	£122.32 £101.93
13010	SN703940 Available to backorder	0.445 Id X 0.780 Od X 0.025 Thk	£2.89 £2.41

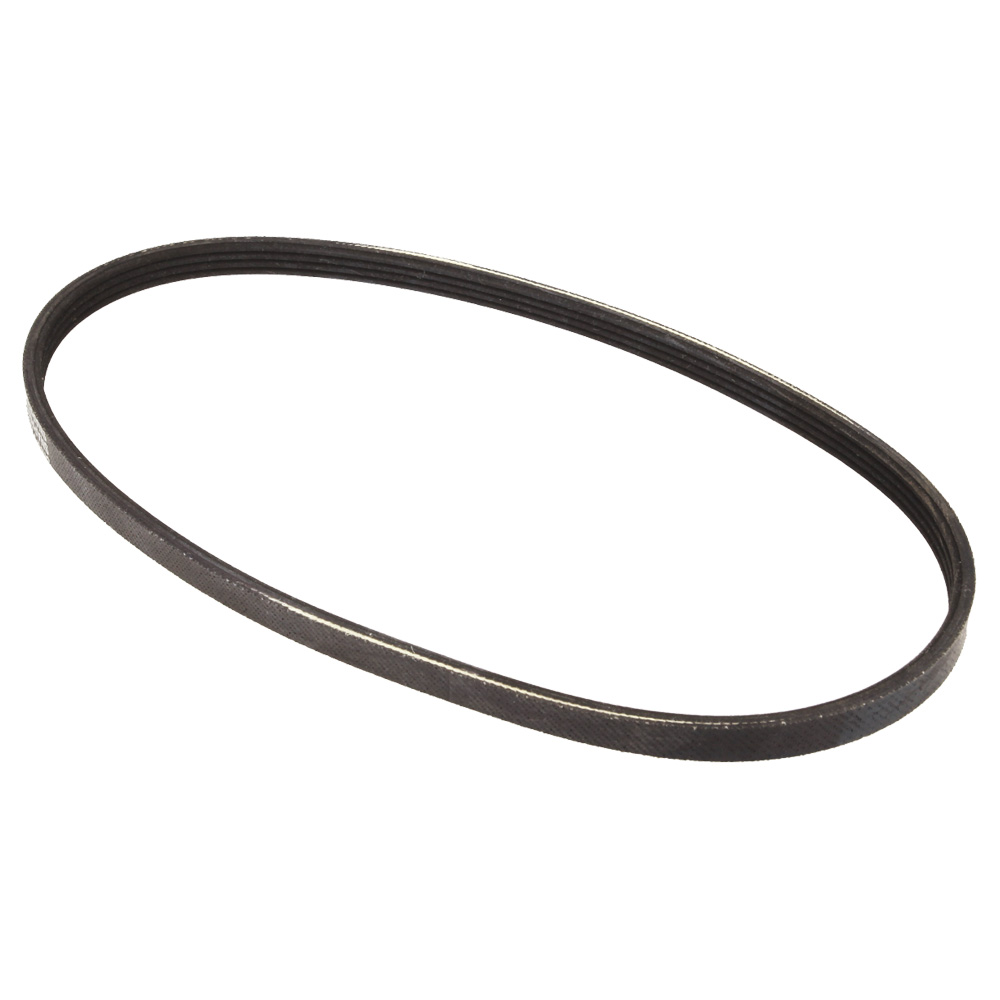

13020	SN7012354YP Available to backorder	Poly-V	£18.25 £15.21
13030	BP7012616YP Available to backorder	Foot Guard Support	£5.46 £4.55
13070	BP7029008YP Available to backorder	Foot	£35.50 £29.58
13090	BP703978 Available to backorder	1/4-20 X 1/2	£3.64 £3.03
31010	SN703973 Available to backorder	Flanged	£9.26 £7.72
31020	SN703941 Available to backorder	.50 Id X .650 Od X 1.750	£25.57 £21.31
31030	BP7033774YP Available to backorder	Deck	£32.82 £27.35
37020	BP7074145YP Available to backorder	Transfer (1/4-28 Thread) Link	£7.98 £6.65
37030	BP7073913YP Available to backorder	Black Zinc Bell Crank	£35.50 £29.58
37040	BP7015753YP Available to backorder	1/4-28 Ball Joint	£8.26 £6.88
37060	BP71067MA Available to backorder	1/4	£3.19 £2.66
37080	SN703464 Available to backorder	1/16 X 0.50 Cotter	£3.34 £2.78
37090	BP703461 Available to backorder	1/4-28 Hex	£2.88 £2.40
39010	SN703975 Available to backorder	3/4” Id	£3.19 £2.66
39020	SN7012125YP Available to backorder	3/8-24 X 4.5	£119.99 £99.99

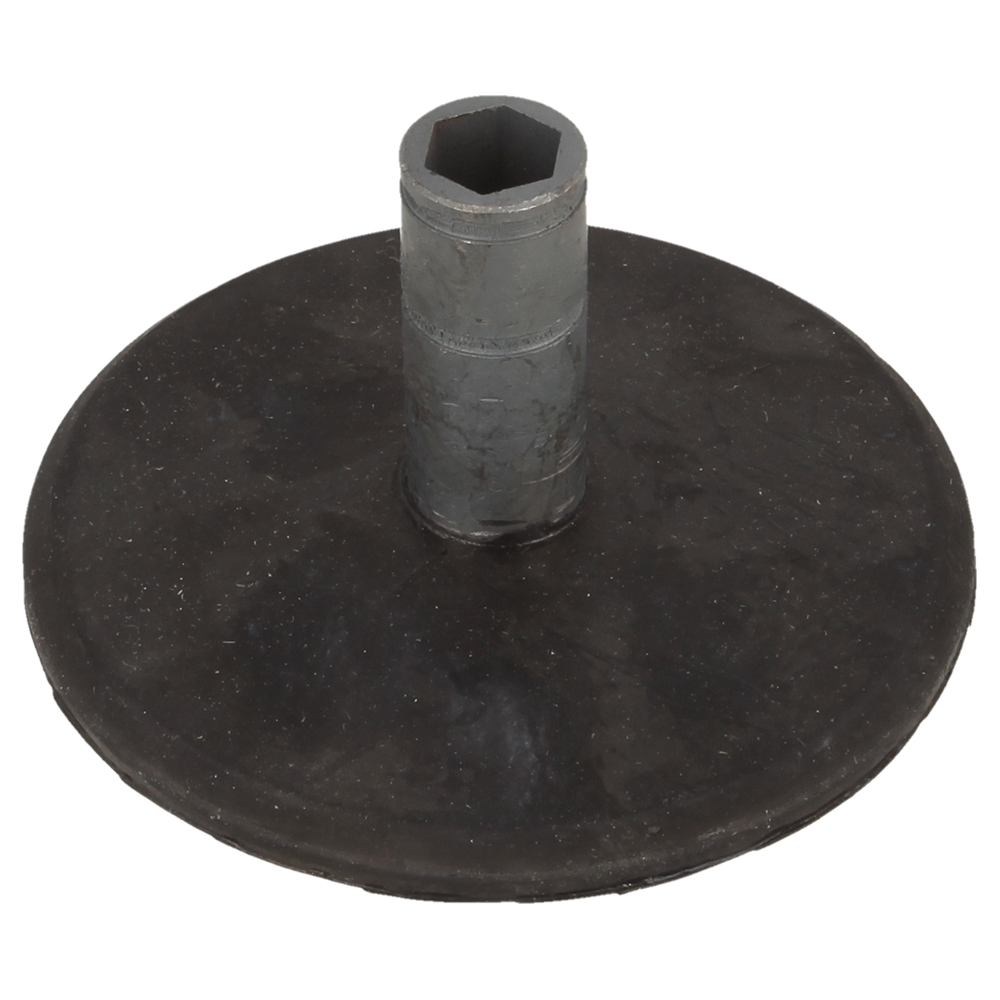

39030	SN7041855YP Available to backorder	Cantilever Driven Disc	£91.76 £76.47
39040	SN703590 Available to backorder	.406 Washer	£2.69 £2.24
39050	SN704061 Available to backorder	#10-32 X 1/4	£2.83 £2.36
120100	SN703458 Available to backorder	3/8-24 Hex Center Lock	£2.98 £2.48
120120	SN703312 Available to backorder	Cotter	£2.69 £2.24
120130	SN703895 Available to backorder	3/8-24	£3.41 £2.84
120140	BP7072284YP Available to backorder	Hex (3/8-24 Thread	£36.12 £30.10
120150	BP7031873YP Available to backorder	Bearing (Inner Half) Holder	£7.14 £5.95
120160	BP7600173YP Available to backorder	Idler Arm	£16.46 £13.72
120190	SN703974 Available to backorder	Idler Arm (.500 Id X .970 Long)	£3.91 £3.26
120210	SN7012124YP Available to backorder	Flat Idler	£18.40 £15.33
120220	SN703972 Available to backorder	1/4-28 Hex Top Lock	£2.98 £2.48
120230	SN703828 Available to backorder	1/4-28 X 1-3/8” Hex Head Cap	£4.06 £3.38
130100	SN703127 Available to backorder	Hex	£2.69 £2.24
130110	SN703587 Available to backorder	5/16	£2.69 £2.24
130120	BP1753983YP Available to backorder	5/16-18 X 5/8 Truss Head Torx Screw	£5.54 £4.62
130130	SN703462 Available to backorder	1/4 Internal Tooth Lock	£2.69 £2.24
370110	SN703408 Available to backorder	Hex Head Cap	£2.98 £2.48
370120	SN703970 Available to backorder	.623 Od X .328 Id X .151 L Spacer	£3.04 £2.53
