e-Ride S500 - 2021 - 2T0665481/ST1 - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

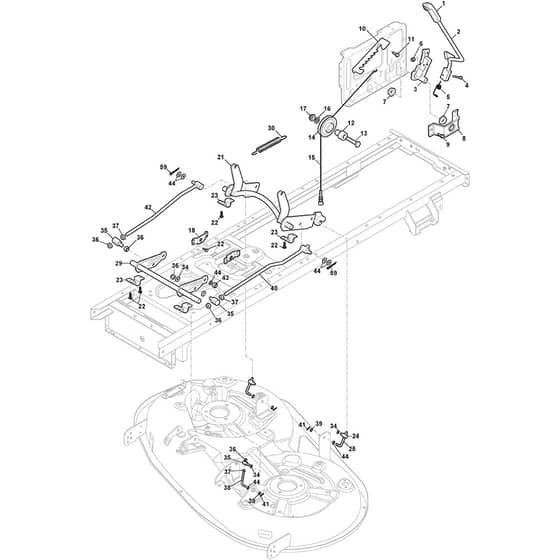

Stiga e-Ride S500 Parts Diagram

Product Name - e-Ride S500

Model Year - 2021

Model Type - SDST 98 Li 48 V2

Art.N - 2T0665481/ST1

Engine Model -

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318229/0 In stock	Lever	Was £16.25 £13.54 Special Price £9.79 £8.16
3	MO382318231/1 Available to backorder	Lifting Axle Assy	£7.02 £5.85
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO125430261/0 Available to backorder	Spring	£1.39 £1.16
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.19 £5.16
10	MO325735515/0 Available to backorder	Steering Sector	£8.00 £6.67
11	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
12	MO112793701/0 In stock	Screw	£1.55 £1.29
59	MO112141418/0 In stock	Cotter Pin	£1.55 £1.29
