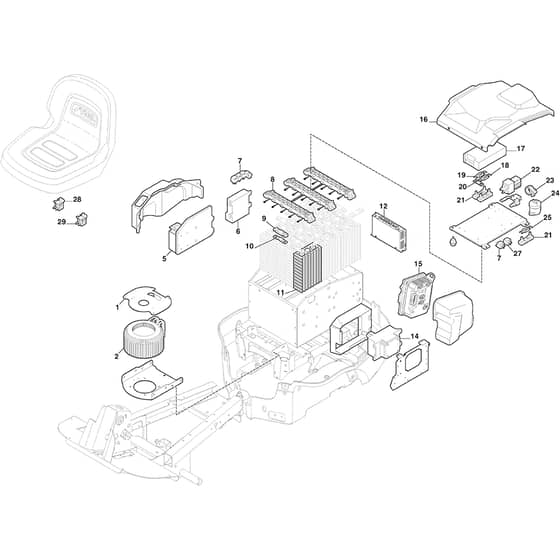

E-PARK 220 - 2018-2021 - 2F5828001/ST1 - Stiga Front Mower Electric Parts Diagram

Name: E-PARK 220 - 2018-2021 - 2F5828001/ST1 - Stiga Front Mower Electric Parts Diagram
SKU: e_park_220_2f5828001_st1_electric_parts-group
Price: 5.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

E-PARK 220 - 2018-2021 - 2F5828001/ST1 - Stiga Front Mower Electric Parts Diagram

Description

Stiga E-PARK 220 Parts Diagram

Product Name - E-PARK 220

Model Year - 2018-2021

Model Type - V 302 Li 48

Art.N - 2F5828001/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387547056/0 Available to backorder	Plate	£47.87 £39.89
2	MO118563738/1 Available to backorder	Electric Motor	£1,597.78 £1,331.48
5	MO387111000/1 Available to backorder	Controller	£1,146.96 £955.80
6	MO118361012/1 Available to backorder	Control Unit	£1,338.12 £1,115.10

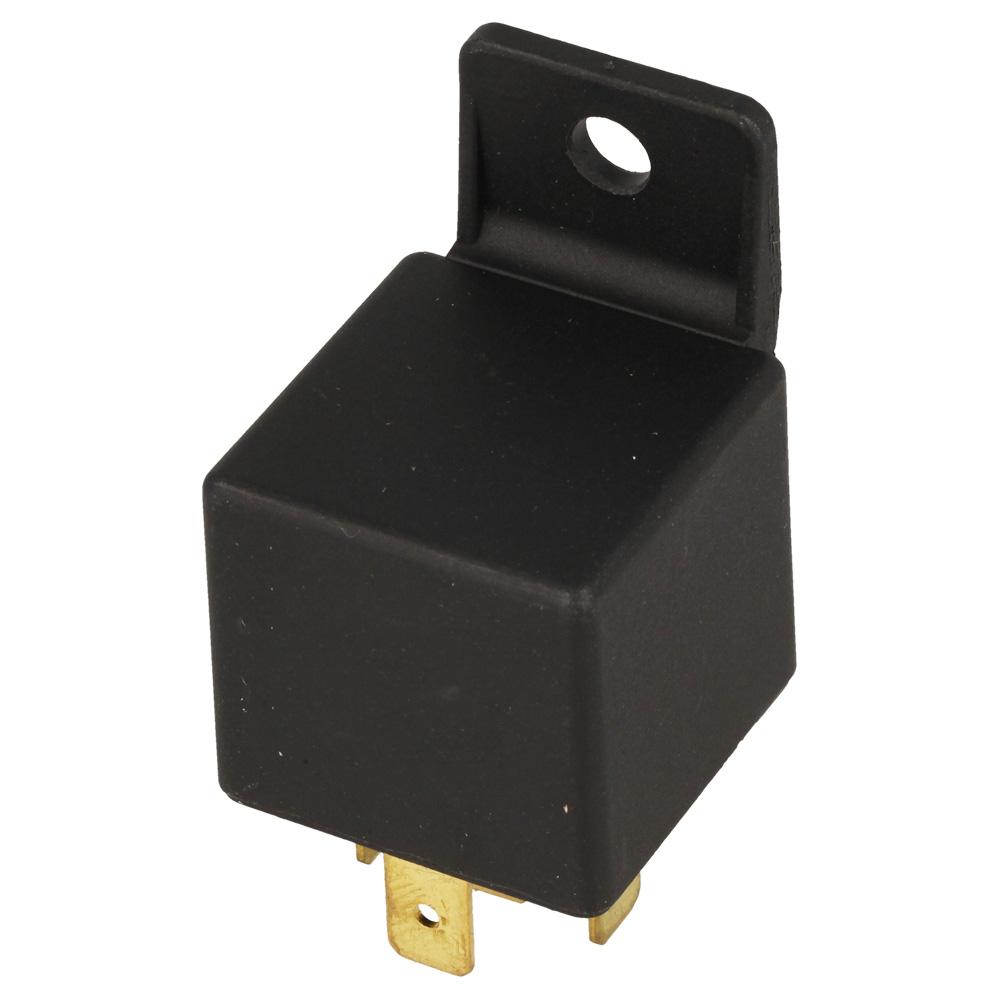

7	MO118361002/0 Available to backorder	Relay	£41.95 £34.96
8	MO187040327/0 Available to backorder	Cable Harness	£264.82 £220.68
9	MO118737880/0 Available to backorder	Terminals Cover	£6.20 £5.17
10	MO118361008/1 Available to backorder	Terminals Connector	£211.16 £175.97
11	MO118361007/0 Available to backorder	Battery Cell	£348.42 £290.35
12	MO118361006/0 Available to backorder	Controller	£1,739.95 £1,449.96
14	MO118204145/0 Available to backorder	Battery Charger	£1,298.88 £1,082.40
15	MO387111001/1 Available to backorder	Controller	£1,261.66 £1,051.38
16	MO337600046/0 Available to backorder	Guard	£394.18 £328.48
17	MO118361009/0 Available to backorder	Converter	£216.04 £180.03
18	MO133340043/0 Available to backorder	Fuse (125A)	£40.82 £34.02
19	MO133340044/0 Available to backorder	Fuse (50A)	£38.51 £32.09
20	MO337546699/0 Available to backorder	Plate	£12.47 £10.39
21	MO118361011/0 Available to backorder	Fuse Carrier	£66.35 £55.29
22	MO118361004/0 Available to backorder	Contactor	£204.12 £170.10
23	MO118361010/0 Available to backorder	Sensor	£98.96 £82.47
24	MO118361000/0 Available to backorder	Remote Control Switch	£536.62 £447.18
25	MO133340045/0 Available to backorder	Fuse (35A)	£21.44 £17.87
27	MO133567002/0 Available to backorder	Relay	£57.72 £48.10
28	MO1134-3156-02 Available to backorder	Switch	£46.46 £38.72
29	MO1134-3156-01 Available to backorder	Seat Switch [Black]	£43.64 £36.37
