E 300 - Yellow - 2014-2024 - 293300061/14 - Castel Garden Rotary Mower Electric Walkbehind Diagram

Name: E 300 - Yellow - 2014-2024 - 293300061/14 - Castel Garden Rotary Mower Electric Walkbehind Diagram
SKU: e_300_yellow_293300061_14_electric_walkbehind-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

E 300 - Yellow - 2014-2024 - 293300061/14 - Castel Garden Rotary Mower Electric Walkbehind Diagram

Description

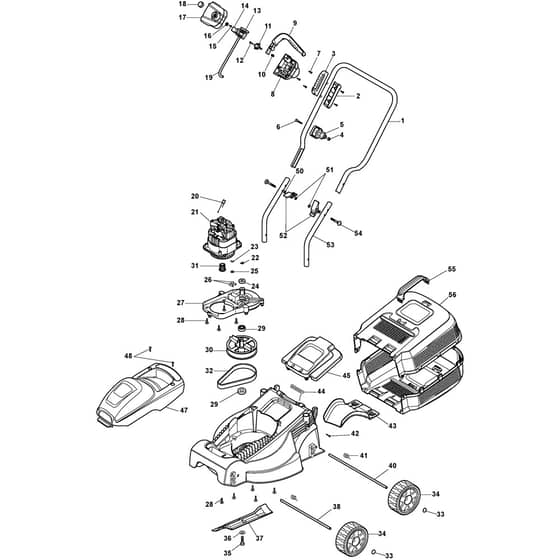

Castel Garden E 300 - Yellow Parts Diagram

Product Name - E 300 - Yellow

Model Year - 2014-2024

Model Type - E 300

Art.N - 293300061/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118810074/0 Available to backorder	Handle. Upper Part	£17.90 £14.92
3	MO118810087/0 Available to backorder	Upper Fixation Plate	£2.12 £1.77
5	MO118810083/0 Available to backorder	Hook	£4.08 £3.40
6	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
9	MO118810113/0 Available to backorder	Lever	£4.22 £3.52
12	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
13	MO118810065/0 Available to backorder	Capacitor	£2.81 £2.34
15	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
16	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
17	MO118804674/0 Available to backorder	Switchbox Upper	£39.42 £32.85
18	MO118810094/0 Available to backorder	Button. Yellow	£1.55 £1.29
19	MO118810060/0 Available to backorder	Cable	£9.97 £8.31
21	MO118810057/1 Available to backorder	Motor	£87.29 £72.74
22	MO3353020 Available to backorder	Seeger Ring	£1.40 £1.17
23	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
24	MO118810069/0 Available to backorder	Bearing	£5.64 £4.70
26	MO118801615/0 Available to backorder	Wire Connector	£1.33 £1.11
27	MO118810082/0 Available to backorder	Engine Plate	£26.88 £22.40
28	MO112789195/0 Available to backorder	Screw	£1.39 £1.16
29	MO118810070/0 Available to backorder	Bearing	£16.88 £14.07
30	MO118810058/0 Available to backorder	Pulley	£19.30 £16.08
32	MO118810091/0 Available to backorder	Belt	£13.20 £11.00
33	MO112604898/0 Available to backorder	Crown Fastener	£1.55 £1.29
34	MO118810088/0 Available to backorder	Wheel	£20.40 £17.00
35	MO112793102/0 In stock	Screw	£1.55 £1.29
36	MO2321230 Available to backorder	Washer	£1.40 £1.17
37	MO118810001/0 Available to backorder	Blade	£13.20 £11.00
38	MO118810068/0 Available to backorder	Axle. Front Wheels	£3.79 £3.16
40	MO118810067/0 Available to backorder	Axle. Rear Wheels	£4.66 £3.88
41	MO118810078/0 Available to backorder	Spring	£2.95 £2.46
42	MO9943-0516-16 In stock	Screw	£1.22 £1.02
43	MO118810095/0 Available to backorder	Deflector	£4.78 £3.98
45	MO118810117/1 Available to backorder	Stone-Guard. Grey Grey	£7.10 £5.92
47	MO118810120/0 Available to backorder	Cover. Grey Grey	£14.80 £12.33
47	MO118810118/0 Available to backorder	Engine Cover. Yellow Yellow	£14.80 £12.33
47	MO118810119/0 Available to backorder	Cover. Red Red	£14.80 £12.33
48	MO112728524/0 Available to backorder	Screw	£1.48 £1.23
50	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
51	MO112523020/0 In stock	Washer	£1.55 £1.29
52	MO118810121/0 Available to backorder	Knob	£4.08 £3.40
53	MO118810076/0 Available to backorder	Handle. Lowerpart	£22.27 £18.56
54	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
55	MO118810122/0 Available to backorder	Grassbox Handle	£3.52 £2.93
56	MO118810123/0 Available to backorder	Grass-Box. Upper.Lower Part	£42.23 £35.19
