Echo DTT-2100 Gear Case

Name: Echo DTT-2100 Gear Case
SKU: dtt_2100_gear_case-group
Price: 0.17 GBP
Availability: InStock

Part No. dtt_2100_gear_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Echo DTT-2100 - Gear Case - Parts Diagram

	Part No.	Details
1	ECP100011760 Available to backorder	Gear Case Asy	£195.24 £162.70
2	ECC534001010 Available to backorder	Gear Shaft	£41.94 £34.95
3	ECV187000080 Available to backorder	Grease Nipple	£1.13 £0.94
5	EC90080400608 Available to backorder	Ball Bearing	£5.51 £4.59
6	ECV655000090 Available to backorder	Pinion Shaft	£42.86 £35.72
7	EC90080406002 Available to backorder	Ball Bearing	£8.09 £6.74
8	EC90070100014 Available to backorder	Retaining Ring	£0.49 £0.41
9	EC90070200032 Available to backorder	Retaining Ring	£1.51 £1.26
10	ECV060000150 Available to backorder	Spur Gear	£97.20 £81.00
11	EC9242308000 Available to backorder	Retaining Ring	£0.64 £0.53
12	ECV500000090 Available to backorder	Oil Seal	£6.43 £5.36
13	ECP021047570 Available to backorder	Bevel Set Gear	£38.63 £32.19
14	ECP100011770 Available to backorder	Gear Case Asy	£82.08 £68.40
15	ECV651001000 Available to backorder	Bevel Gear	£33.48 £27.90
16	EC90085906901 Available to backorder	Ball Bearing	£19.78 £16.48
17	EC90070600012 Available to backorder	Retaining Ring	£1.01 £0.84
18	EC90070200024 Available to backorder	Retaining Ring	£1.01 £0.84
19	ECC465000030 Available to backorder	Latch Resetter	£31.69 £26.41
20	EC90017505012 Available to backorder	Bolt Hsh	£0.83 £0.69
21	EC90072400035 Available to backorder	O-Ring	£1.57 £1.31
22	EC90060300006 Available to backorder	Washer	£0.20 £0.17
23	ECV347000030 Available to backorder	Cone Washer	£0.64 £0.53
24	EC90050200006 Available to backorder	Nut	£0.31 £0.26
25	EC90056000006 In stock	Lock Nut	Was £1.32 £1.10 Special Price £0.72 £0.60
26	ECC628000410 Available to backorder	Plate Piece	£2.26 £1.88
27	ECC532000690 Available to backorder	Connecting Rod	£24.29 £20.24
28	ECV353000730 Available to backorder	5 Collar	£2.26 £1.88
29	ECV835000000 Available to backorder	Torx 5 Bolt	£1.51 £1.26
30	ECV110000250 Available to backorder	Gear Case Gasket	£2.42 £2.02
31	ECV541000820 Available to backorder	Seal	£7.20 £6.00
32	ECC539000220 Available to backorder	Gearcase Lid	£19.14 £15.95
33	ECV805000000 Available to backorder	Torx 5 Bolt	£1.01 £0.84
34	ECJ447002070 Available to backorder	Guard	£4.01 £3.34
35	EC9210805000 In stock	Flange Nut	£1.84 £1.53
36	ECC710000150 Available to backorder	Axle Shaft	£4.84 £4.03
37	ECC730000160 Available to backorder	Wheel	£6.11 £5.09

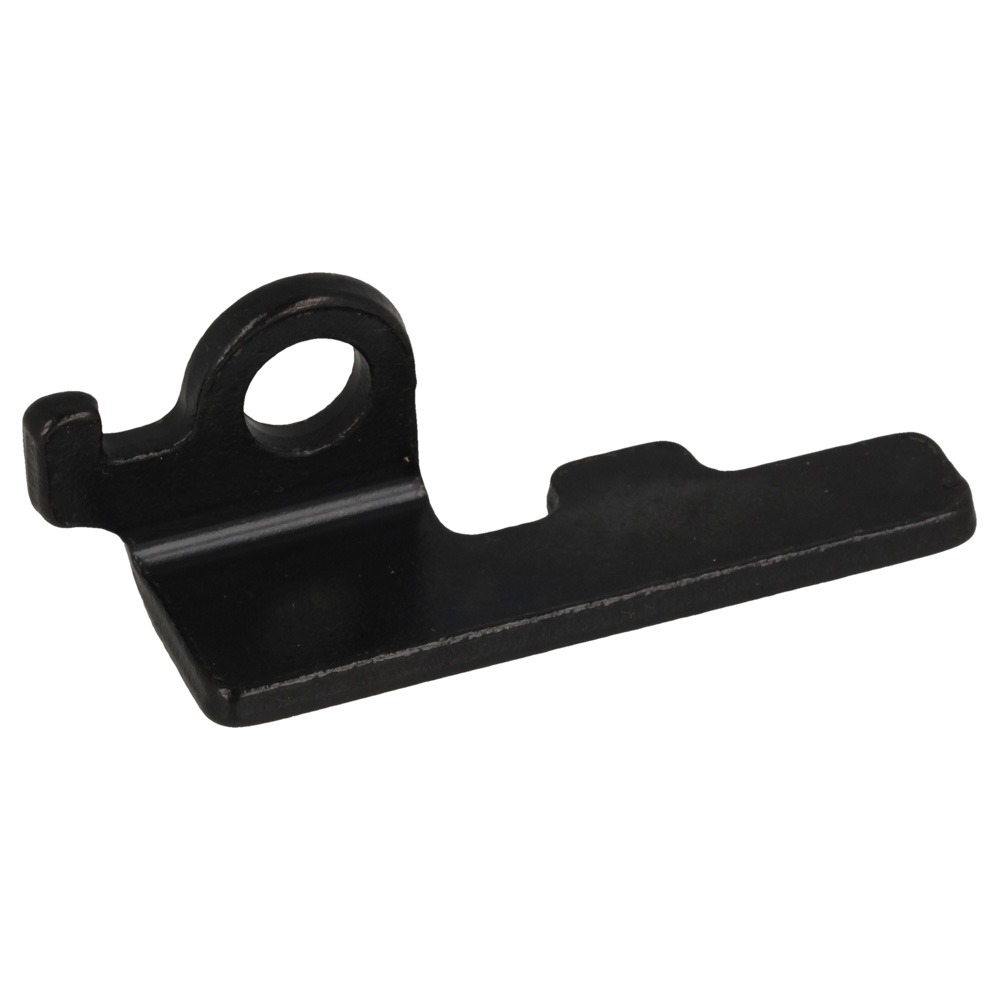

38	ECC661000080 Available to backorder	Safty Lever	£9.95 £8.29
39	ECV452000710 Available to backorder	Coil Spring	£2.26 £1.88
40	ECV204000580 Available to backorder	6 Bolt	£2.65 £2.21
41	ECC661000150 Available to backorder	Release Lever	£9.95 £8.29

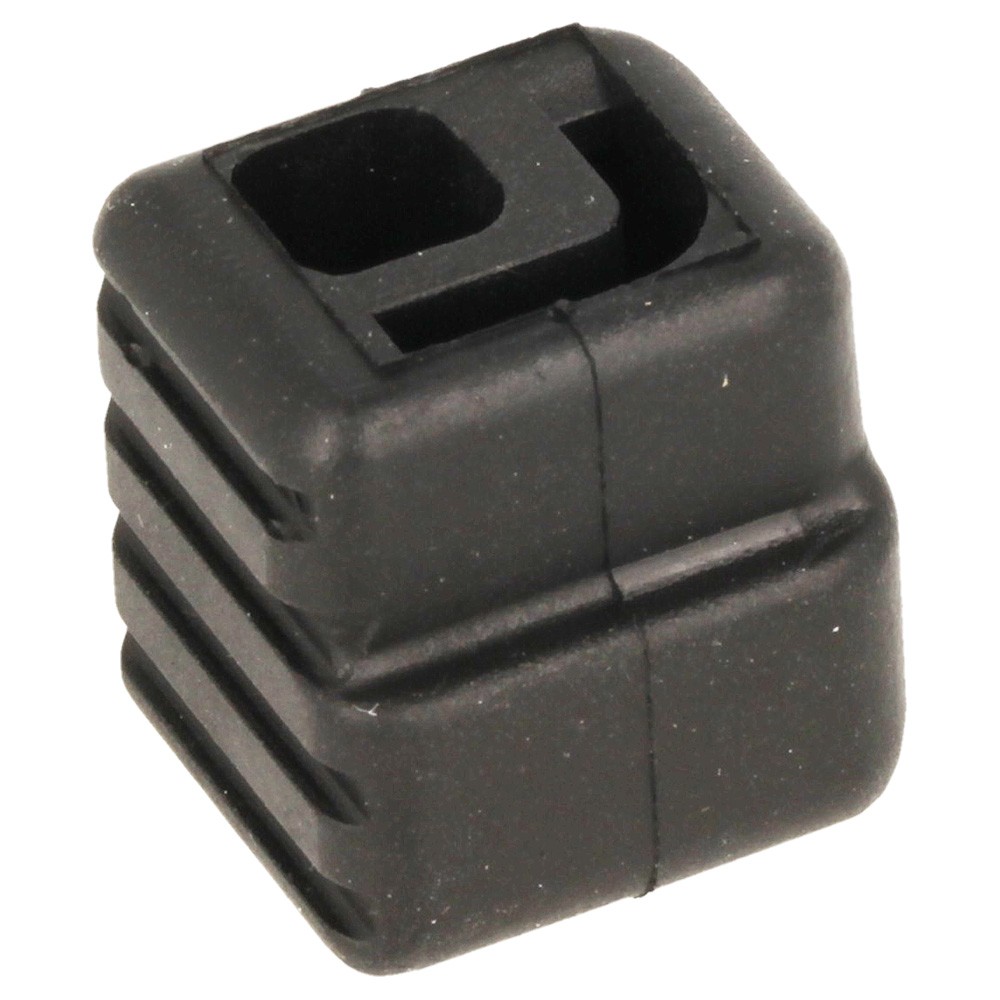

42	ECV494000880 Available to backorder	Cap	£4.84 £4.03

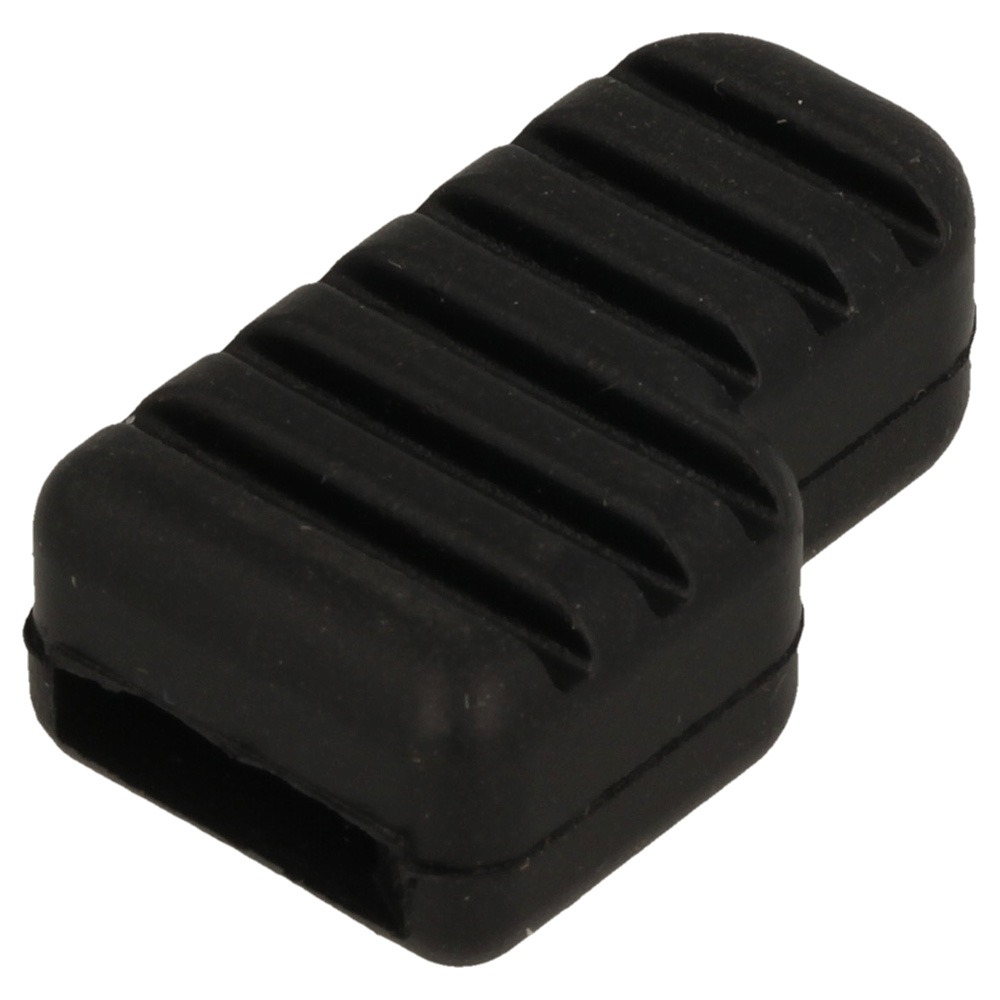

43	ECV494000891 Available to backorder	Cap	£4.84 £4.03
44	ECC403000480 Available to backorder	Handle	£4.94 £4.12
45	ECV354000320 Available to backorder	Collar	£0.49 £0.41
46	EC9146306020 Available to backorder	Screw	£0.49 £0.41
47	ECV340000300 Available to backorder	Shim	£0.49 £0.41
48	ECV805000170 Available to backorder	Torx 5 Bolt	£1.51 £1.26
49	ECV805000130 Available to backorder	Torx 5 Bolt	£1.50 £1.25
