DSH 4000 T - - Efco Brushcutter Transmission D.28 mm (01-01-2020) Diagram

Name: DSH 4000 T - - Efco Brushcutter Transmission D.28 mm (01-01-2020) Diagram
SKU: dsh_4000_t_transmission_d_28_mm_01_01_2020_-group
Price: 1.36 GBP
Availability: InStock

Part No. dsh_4000_t_transmission_d_28_mm_01_01_2020_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DSH 4000 T - - Efco Brushcutter Transmission D.28 mm (01-01-2020) Diagram

Description

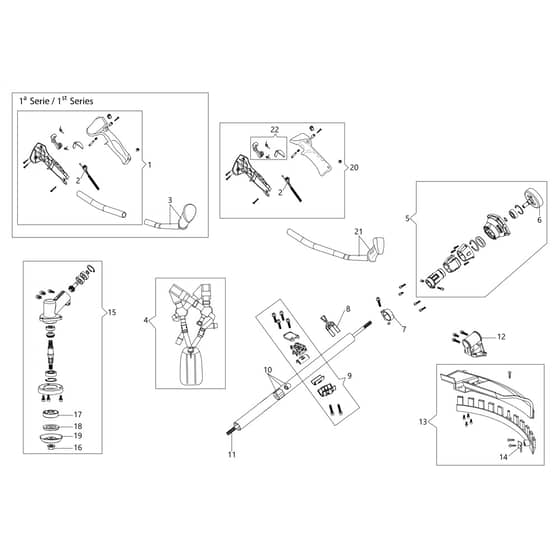

Efco DSH 4000 T Parts Diagram

Model Year -

	Part No.	Details
2	EFBF000145R Available to backorder	Throttle Cable	£6.60 £5.50
3	EFBF000022R Available to backorder	Handle And Knob	£16.92 £14.10
4	EFBF000020R Available to backorder	Harness	£21.00 £17.50
6	EFBF000011R Available to backorder	Clutch Drum	£9.72 £8.10
7	EFBF000115R Available to backorder	Band	£2.40 £2.00
8	EFBF000116R Available to backorder	Support	£3.24 £2.70
9	EFBF000046R Available to backorder	Complete Clamp	£10.20 £8.50
11	EFBF000015R Available to backorder	Drive Shaft	£18.84 £15.70
12	EFBF000040R Available to backorder	Bracket	£5.76 £4.80
13	EFBF000029R In stock	Guard Kit	£18.60 £15.50
15	EFBF000044R Available to backorder	Bevel Gear Ø28	£65.16 £54.30
16	EFBF000007R Available to backorder	Nut	£1.63 £1.36
17	EFBF000037R In stock	Hub	£4.24 £3.53
18	EFBF000038R In stock	Flange	£3.98 £3.32
19	EFBF000036R Available to backorder	Guard	£4.20 £3.50
20	EFBF000059R Available to backorder	Complete Handle Settembre 2020 . September 2020	£26.04 £21.70
21	EFBF000058R Available to backorder	Handle And Knob Settembre 2020 . September 2020	£29.40 £24.50
22	EFBF000149R Available to backorder	Throttle Lever Assy	£5.16 £4.30
