Efco DSH 400 BP - Brushcutter Parts
DSH 400 BP - - Efco Brushcutter Engine Diagram

DSH 400 BP - - Efco Brushcutter Engine Diagram

Part No. dsh_400_bp_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

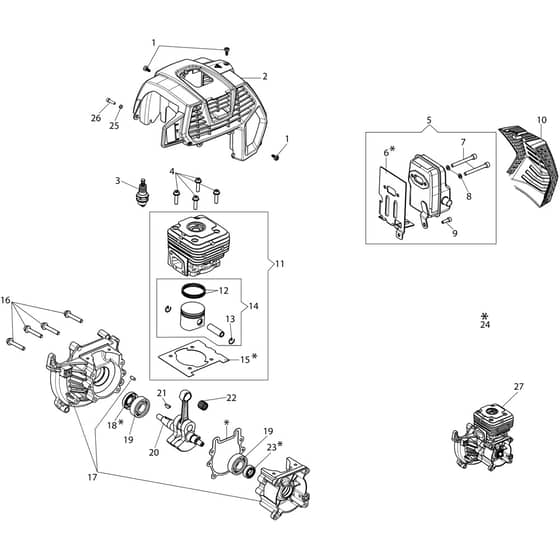

DSH 400 BP - - Efco Brushcutter Engine Diagram

DSH 400 BP - - Efco Brushcutter Engine Diagram

Description

Efco DSH 400 BP Parts Diagram

Model Year -

Ref.		Img.	Part No.	Details
	1		EF3960121R Available to backorder	Screw		£1.08 £0.90
	2		EF61452029R Available to backorder	Engine Cover		£17.04 £14.20
	3		EF3055104R Available to backorder	Spark Plug		£9.00 £7.50
	4		EF3860095R Available to backorder	Screw		£9.00 £7.50
	5		EF61450206R Available to backorder	Complete Muffler		£18.00 £15.00
	7		EF3801069R Available to backorder	Screw		£9.00 £7.50
	8		EF3916006R Available to backorder	Washer		£1.08 £0.90
	9		EF3801011R Available to backorder	Screw		£2.66 £2.22
	10		EF61450367R Available to backorder	Muffler Cover		£7.20 £6.00
	12		EF61450014R Available to backorder	Piston Ring		£3.60 £3.00
	15		EF61450127AR Available to backorder	Gasket		£1.63 £1.36
	16		EF3860096R Available to backorder	Screw		£1.08 £0.90
	22		EF50110044R In stock	Bearing		£9.46 £7.88
	23		EF3050057R Available to backorder	Oil Seal		£2.42 £2.02
	25		EF3801009 Available to backorder	Screw		£1.08 £0.90
	26		EF3916005R In stock	Washer		£1.66 £1.38

Description

Efco DSH 400 BP Parts Diagram

Model Year -
