DS 3500 T - - Efco Brushcutter Transmission Diagram

Name: DS 3500 T - - Efco Brushcutter Transmission Diagram
SKU: ds_3500_t_transmission-group
Price: 0.9 GBP
Availability: InStock

Part No. ds_3500_t_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DS 3500 T - - Efco Brushcutter Transmission Diagram

Description

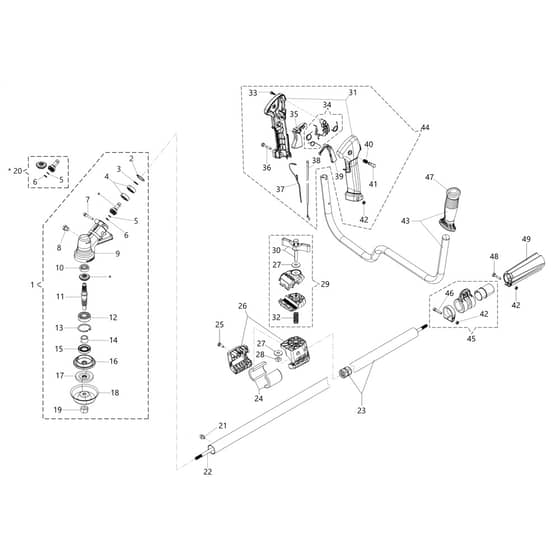

Efco DS 3500 T Parts Diagram

Model Year -

	Part No.	Details
1	EF61250287A Available to backorder	Bevel Gear Ø28	£143.76 £119.80
2	EF3025019 Available to backorder	Ring	£1.08 £0.90
3	EF3024012R In stock	Snap Ring	£1.54 £1.28
4	EF3035023R Available to backorder	Bearing	£16.44 £13.70
5	EF4138311A Available to backorder	Ring	£1.08 £0.90
6	EF3025009 Available to backorder	Ring	£1.08 £0.90
7	EF3901016 Available to backorder	Screw	£1.08 £0.90
8	EF61040071R Available to backorder	Cap	£3.84 £3.20
9	EF61040144R Available to backorder	Gear Case	£48.12 £40.10
10	EF3034218R Available to backorder	Bearing	£13.68 £11.40
11	EF61250054R Available to backorder	Pin	£17.52 £14.60
12	EF3034012R Available to backorder	Bearing	£15.96 £13.30
13	EF3025022R Available to backorder	Seeger	£1.08 £0.90
14	EF61040066R Available to backorder	Spacer	£9.00 £7.50
15	EF3050018R Available to backorder	Seal Ring	£9.00 £7.50
16	EF61040145R Available to backorder	Hub	£24.24 £20.20
17	EF4179089R Available to backorder	Flange	£9.00 £7.50
19	EF61110075R Available to backorder	Nut	£9.00 £7.50
20	EF61040133A Available to backorder	Bevel Gear Set	£90.96 £75.80
21	EF61052007 Available to backorder	Screw	£1.08 £0.90
22	EF61202109R Available to backorder	Shaft	£29.76 £24.80
23	EF61252049R Available to backorder	Tube Ø28	£87.00 £72.50
24	EF074000035R Available to backorder	Av-Mount	£9.00 £7.50
25	EF3891038R Available to backorder	Screw	£3.06 £2.55
26	EF61370275B Available to backorder	Support Set	£31.68 £26.40
27	EF3918013 Available to backorder	Washer	£1.08 £0.90
28	EF3980011 Available to backorder	Nut	£1.08 £0.90
29	EF61370274A Available to backorder	Complete Clamp	£29.40 £24.50
30	EF61042030R Available to backorder	Knob	£3.84 £3.20
31	EF61380097 Available to backorder	Pair Of Handles	£11.40 £9.50
32	EF61040044R Available to backorder	Spring	£2.08 £1.73
33	EF3893016AR Available to backorder	Screw	£2.24 £1.87
34	EF61370294 Available to backorder	Lever Group	£5.16 £4.30
35	EF61380064R Available to backorder	Throttle Lever	£3.14 £2.62
36	EF3891054R Available to backorder	Screw	£6.36 £5.30
37	EF61380067R Available to backorder	Cable	£11.04 £9.20
38	EF61380066R Available to backorder	Throttle Cable	£7.44 £6.20
39	EF61370114R Available to backorder	Lever	£1.81 £1.51
40	EF4100098B Available to backorder	Spring	£1.08 £0.90
42	EF3914003R Available to backorder	Nut	£1.15 £0.96
43	EF61382024R In stock	Handle And Knob	Was £79.14 £65.95 Special Price £56.98 £47.48
45	EF4179194AR Available to backorder	Band Ø28	£9.00 £7.50
46	EF3801015R Available to backorder	Screw	£2.03 £1.69
47	EF61040140R Available to backorder	Knob	£11.16 £9.30
