DS 3500 S - - Efco Brushcutter Transmission Diagram

Description

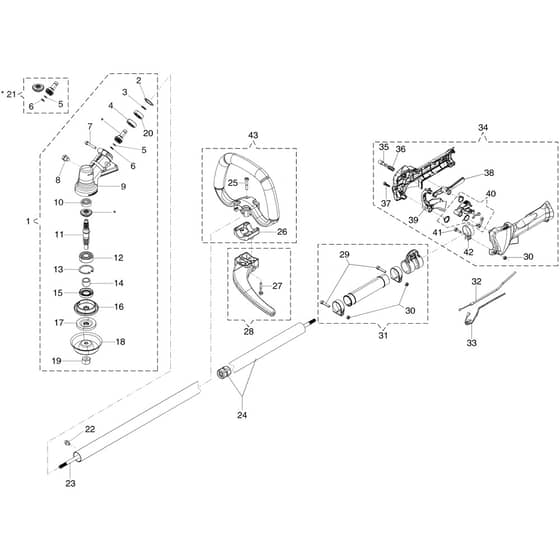

Efco DS 3500 S Parts Diagram

Model Year -

	Part No.	Details
1	EF61250237A Available to backorder	Set Bevel Gear Ø26 + Insert	£158.04 £131.70
2	EF3025018R Available to backorder	Ring	£2.00 £1.67
3	EF3024010R Available to backorder	Snap Ring	£1.08 £0.90
4	EF3034008R Available to backorder	Bearing	£15.24 £12.70
5	EF4138311A Available to backorder	Ring	£1.08 £0.90
6	EF3025009 Available to backorder	Ring	£1.08 £0.90
7	EF3901016 Available to backorder	Screw	£1.08 £0.90
8	EF61040071R Available to backorder	Cap	£3.84 £3.20
9	EF61050013R Available to backorder	Gear Case	£48.84 £40.70
10	EF3034218R Available to backorder	Bearing	£13.68 £11.40
11	EF61250054R Available to backorder	Pin	£17.52 £14.60
12	EF3034012R Available to backorder	Bearing	£15.96 £13.30
13	EF3025022R Available to backorder	Seeger	£1.08 £0.90
14	EF61040066R Available to backorder	Spacer	£9.00 £7.50
15	EF3050018R Available to backorder	Seal Ring	£9.00 £7.50
16	EF61040145R Available to backorder	Hub	£24.24 £20.20
17	EF4179089R Available to backorder	Flange	£9.00 £7.50
19	EF61110075R Available to backorder	Nut	£9.00 £7.50
20	EF3035230 Available to backorder	Bearing	£17.64 £14.70
21	EF61040132A Available to backorder	Bevel Gear Set	£97.44 £81.20
22	EF61052007 Available to backorder	Screw	£1.08 £0.90
23	EF61170075R Available to backorder	Drive Shaft	£27.84 £23.20
24	EF61280155 Available to backorder	Tube Ø26	£57.84 £48.20
26	EF61010024 Available to backorder	Clamp	£9.00 £7.50
27	EF3891051R Available to backorder	Screw	£1.98 £1.65
28	EF61380094 Available to backorder	Guard	£8.04 £6.70
29	EF3801015R Available to backorder	Screw	£2.03 £1.69
30	EF3914003R Available to backorder	Nut	£1.15 £0.96
32	EF61380059R Available to backorder	Throttle Cable	£5.76 £4.80
34	EF61380095B Available to backorder	Handle Kit	£32.64 £27.20
36	EF4100098B Available to backorder	Spring	£1.08 £0.90
37	EF3893016AR Available to backorder	Screw	£2.24 £1.87
39	EF61380056R Available to backorder	Throttle Lever	£3.72 £3.10
40	EF61380096 Available to backorder	Lever Group	£6.84 £5.70
41	EF3891038R Available to backorder	Screw	£3.06 £2.55
42	EF61010019 Available to backorder	Band	£2.00 £1.67
43	EF61380093 Available to backorder	Complete Knob	£46.56 £38.80
