DS 2410 S - - Efco Brushcutter Transmission Diagram

Description

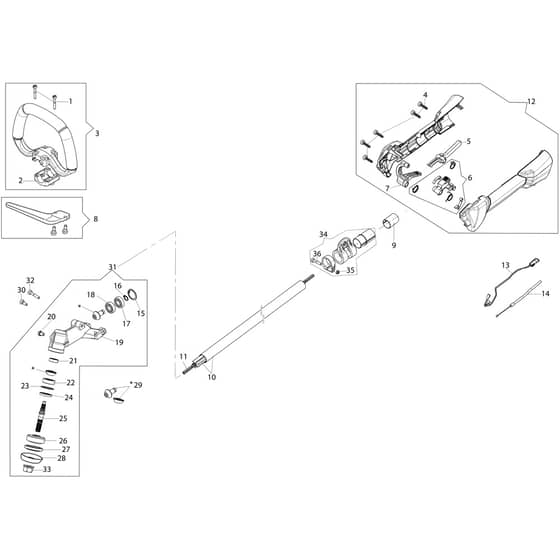

Efco DS 2410 S Parts Diagram

Model Year -

	Part No.	Details
1	EF3891054R Available to backorder	Screw	£6.36 £5.30
3	EF61370271 Available to backorder	Handle	£47.88 £39.90
4	EF3893060R Available to backorder	Screw	£1.08 £0.90
5	EF61370043R Available to backorder	Lever	£3.01 £2.51
6	EF61370260 Available to backorder	Lever Group	£5.28 £4.40
7	EF61370044AR Available to backorder	Throttle Lever	£3.18 £2.65
8	EF61370269 Available to backorder	Guard Kit	£10.56 £8.80
10	EF61370045R Available to backorder	Tube Ø24	£66.36 £55.30
11	EF61170075R Available to backorder	Drive Shaft	£27.84 £23.20
12	EF61370270A Available to backorder	Complete Handle	£29.04 £24.20
13	EF61370032AR Available to backorder	Cable	£5.88 £4.90
14	EF61370220AR Available to backorder	Throttle Cable	£9.00 £7.50
15	EF3025026 Available to backorder	Ring	£2.00 £1.67
16	EF3024009R Available to backorder	Ring	£3.01 £2.51
17	EF3035044 Available to backorder	Bearing	£12.72 £10.60
19	EF61170119AR Available to backorder	Gear Case	£47.88 £39.90
20	EF3906015R Available to backorder	Screw	£2.10 £1.75
21	EF3035045R Available to backorder	Bearing	£13.20 £11.00
22	EF3034008R Available to backorder	Bearing	£15.24 £12.70
23	EF3025018R Available to backorder	Ring	£2.00 £1.67
24	EF61170134 Available to backorder	Seal Ring	£11.40 £9.50
25	EF61170122 Available to backorder	Shaft	£32.04 £26.70
26	EF61170123 Available to backorder	Hub	£15.72 £13.10
27	EF61170124 Available to backorder	Lower Flange	£15.72 £13.10
29	EF61370298 Available to backorder	Bevel Gear Set	£42.12 £35.10
30	EF3891036R Available to backorder	Screw	£1.37 £1.14
33	EF3933105 Available to backorder	Nut	£5.64 £4.70
35	EF3914003R Available to backorder	Nut	£1.15 £0.96
36	EF3801015R Available to backorder	Screw	£2.03 £1.69
