DR 52 VBR6 - - Efco Bush Hog Mower Transmission (until 2011) Diagram

Name: DR 52 VBR6 - - Efco Bush Hog Mower Transmission (until 2011) Diagram
SKU: dr_52_vbr6_transmission_until_2011_-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

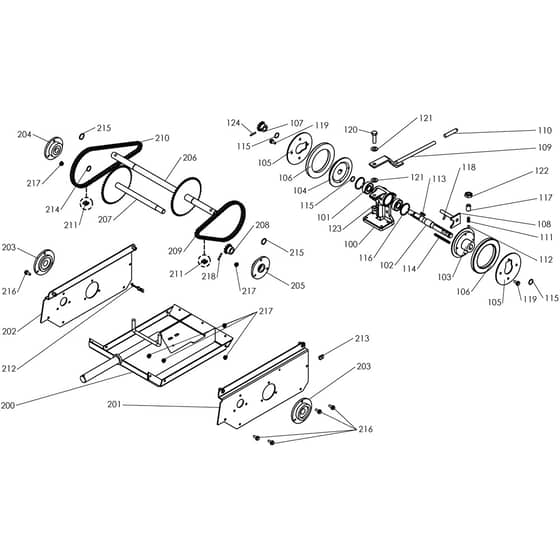

DR 52 VBR6 - - Efco Bush Hog Mower Transmission (until 2011) Diagram

Description

Efco DR 52 VBR6 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
100	EFPB0302030027 Available to backorder	Mechanism Bearing	£186.60 £155.50
101	EFPB0306010013 Available to backorder	Bearing	£17.12 £14.27
102	EFPB0302010018 Available to backorder	Speed Axel	£94.62 £78.85
103	EFPB0303000005 Available to backorder	Left Mechanism Hub	£172.22 £143.52
104	EFPB0303000004 Available to backorder	Right Mechanism Hub	£151.64 £126.37
105	EFPB5002010102 Available to backorder	Mechanism Plate	£8.74 £7.28
106	EFPB0341000044R In stock	Washer	£45.18 £37.65
108	EFPB5002010103 Available to backorder	Selector Fork	£62.78 £52.32
110	EFPB0341000023 Available to backorder	End Piece Type A -D9 Lg 50	£2.22 £1.85
111	EFPB0305020004 Available to backorder	Spring	£0.90 £0.75
112	EFPB0306010001 Available to backorder	Ball	£0.90 £0.75
113	EFPB0301040022 Available to backorder	Key	£1.84 £1.53
114	EFPB0301040005 Available to backorder	Key	£1.84 £1.53
116	EFPB0301070005 Available to backorder	Circlips	£1.84 £1.53
117	EFPB0302010043 Available to backorder	Screw	£5.44 £4.53
118	EFPB0302010044 Available to backorder	Screw	£5.44 £4.53
120	EFPB0300011015 Available to backorder	Screw	£0.90 £0.75
121	EFPB0300401002 Available to backorder	Washer	£3.01 £2.51
122	EFPB0300251401 Available to backorder	Nut	£1.84 £1.53
123	EFPB0300201001R Available to backorder	Nut	£2.54 £2.12
200	EFPB5002013001 Available to backorder	Lower Case Cover	£202.32 £168.60
201	EFPB5002013003 Available to backorder	Left Case Cover	£48.98 £40.82
202	EFPB5002013002 Available to backorder	Rhs Case Cover	£48.98 £40.82
203	EFPB0340030013 Available to backorder	Wheel Shaft Bearing	£14.68 £12.23
204	EFPB0340040012 Available to backorder	Countershaft Bearing Ø17	£12.16 £10.13
205	EFPB0340040013 Available to backorder	Countershaft Bearing Ø15	£27.86 £23.22
206	EFPB0302010010 Available to backorder	Wheel Shaft	£127.66 £106.38
207	EFPB0302010005 Available to backorder	Countershaft	£86.40 £72.00
208	EFPB0306050014 Available to backorder	Sprocket10 Teeth	£55.40 £46.17
209	EFPB0306020011 Available to backorder	Chain 9.52 (58 Links)	£19.72 £16.43
210	EFPB0306020013 Available to backorder	Chain 9.52 (78 Links)	£29.44 £24.53
211	EFPB0306020001 Available to backorder	Quick Fastener	£2.76 £2.30
212	EFPB0341000033 Available to backorder	Twist Tie	£0.90 £0.75
213	EFPB0301050005 Available to backorder	Clip	£5.62 £4.68
214	EFPB0301070003 Available to backorder	Circlips	£0.90 £0.75
215	EFPB0301070007 Available to backorder	Circlips	£0.90 £0.75
216	EFPB0300010609 Available to backorder	Screw	£0.90 £0.75
217	EFPB0300260601 Available to backorder	Nut	£0.90 £0.75
218	EFPB0301020002 Available to backorder	Plug	£2.00 £1.67
