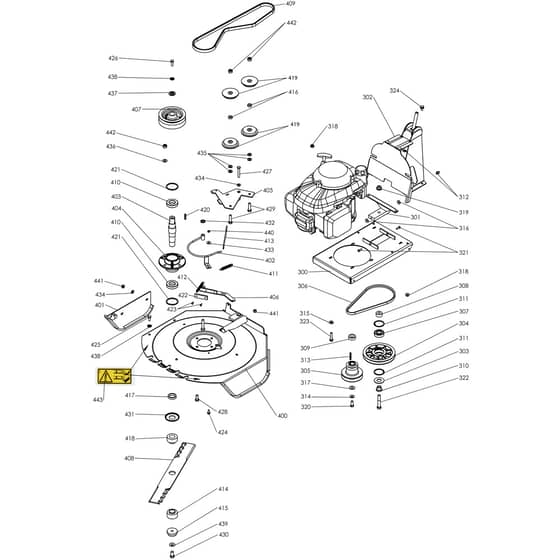

DR 52 VBR6 - - Efco Bush Hog Mower Deck assembly (From 2012) Diagram

Name: DR 52 VBR6 - - Efco Bush Hog Mower Deck assembly (From 2012) Diagram
SKU: dr_52_vbr6_deck_assembly_from_2012_-group
Price: 0.7 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DR 52 VBR6 - - Efco Bush Hog Mower Deck assembly (From 2012) Diagram

Description

Efco DR 52 VBR6 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
301	EFPB5002010101 Available to backorder	Compensator	£82.06 £68.38
304	EFPB0306060013 Available to backorder	Oscillating Pulley	£156.78 £130.65
305	EFPB0306060002 Available to backorder	Pulley (Engine)	£191.10 £159.25
306	EFPB0306030023 Available to backorder	Harness	£36.80 £30.67
307	EFPB0306010015 Available to backorder	Bearing	£8.88 £7.40
308	EFPB0302020025 Available to backorder	Spacer	£8.74 £7.28
309	EFPB0302020023 Available to backorder	Spacer	£17.76 £14.80
310	EFPB0302010016 Available to backorder	Oscillating Pulley Pin	£11.64 £9.70
311	EFPB0301070006 Available to backorder	Circlips	£1.84 £1.53
312	EFPB0301050005 Available to backorder	Clip	£5.62 £4.68
313	EFPB0301040001 Available to backorder	Key	£2.76 £2.30
314	EFPB0300431001 Available to backorder	Washer	£0.90 £0.75
315	EFPB0300410901 Available to backorder	Washer	£0.90 £0.75
317	EFPB0300401001 Available to backorder	Washer	£0.90 £0.75
318	EFPB0300260801 Available to backorder	Nut	£0.90 £0.75
319	EFPB0300251202 Available to backorder	Nut	£0.90 £0.75
320	EFPB0300060302 Available to backorder	Screw	£2.76 £2.30
321	EFPB0300020601 Available to backorder	Screw	£0.90 £0.75
322	EFPB0300011209 Available to backorder	Screw	£2.76 £2.30
323	EFPB0300010827 Available to backorder	Screw	£0.90 £0.75
324	EFPB0300010815 Available to backorder	Screw	£0.90 £0.75
400	EFPB5002013006 Available to backorder	Blade Guard	£424.80 £354.00
401	EFPB5002010505 Available to backorder	Right Side Cover	£99.40 £82.83
402	EFPB5002010104 Available to backorder	Belt Guide Cover	£30.28 £25.23
403	EFPB0302010001 Available to backorder	Shaft Cover	£58.82 £49.02
404	EFPB0302030025 Available to backorder	Blade Guard Hub	£120.92 £100.77
405	EFPB5002010105 Available to backorder	Clutch Lever Guard	£61.54 £51.28
406	EFPB5002010106 Available to backorder	Blade Brake Lever	£35.82 £29.85
407	EFPB0306060012 Available to backorder	Pulley (Blade)	£185.40 £154.50
408	EFPB0320020007 Available to backorder	Blade	£73.28 £61.07
409	EFPB0306030036 Available to backorder	Harness	£71.82 £59.85
410	EFPB306010069R Available to backorder	Bearing	£38.58 £32.15
411	EFPB0305010005 Available to backorder	Spring	£8.74 £7.28
412	EFPB0305010001 Available to backorder	Spring	£5.44 £4.53
413	EFPB0305000002 Available to backorder	Lever Connecting Shaft	£5.44 £4.53
414	EFPB0302020033R Available to backorder	Spacer	£17.76 £14.80
415	EFPB0302020039 Available to backorder	Spacer	£19.30 £16.08
416	EFPB0302020018 Available to backorder	Spacer	£5.44 £4.53
417	EFPB0302020043 Available to backorder	Spacer	£18.98 £15.82
418	EFPB0302020035 Available to backorder	Spacer	£18.98 £15.82
419	EFPB0340040014 Available to backorder	Half Pulley	£8.88 £7.40
420	EFPB0301040003 Available to backorder	Key	£1.84 £1.53
421	EFPB0301070009 Available to backorder	Circlip	£1.84 £1.53
422	EFPB5504000011 Available to backorder	Gasket	£41.06 £34.22
423	EFPB0300090411R Available to backorder	Screw	£0.90 £0.75
424	EFPB0300010609 Available to backorder	Screw	£0.90 £0.75
425	EFPB0300010806 Available to backorder	Screw	£0.90 £0.75
426	EFPB0300090801 Available to backorder	Screw	£6.00 £5.00
427	EFPB0300010821 Available to backorder	Screw	£1.84 £1.53
428	EFPB0300011008 Available to backorder	Screw	£0.90 £0.75
429	EFPB0300011004 Available to backorder	Screw	£0.90 £0.75
430	EFPB0300011211 Available to backorder	Screw	£1.84 £1.53
431	EFPB5504000032 Available to backorder	Washer	£27.84 £23.20
432	EFPB0300461001 Available to backorder	Washer	£0.98 £0.82
433	EFPB0300410602 Available to backorder	Washer	£0.90 £0.75
434	EFPB0300400802 Available to backorder	Washer	£0.90 £0.75
435	EFPB0300401003 Available to backorder	Washer	£0.90 £0.75
436	EFPB0300401002 Available to backorder	Washer	£3.01 £2.51
437	EFPB0300411101 Available to backorder	Washer	£1.84 £1.53
438	EFPB0300430801 Available to backorder	Washer	£0.90 £0.75
439	EFPB0300431201 Available to backorder	Washer	£1.84 £1.53
440	EFPB0300210602 Available to backorder	Nut	£0.90 £0.75
441	EFPB0300210802 Available to backorder	Nut	£0.90 £0.75
442	EFPB0300211001 Available to backorder	Nut	£0.84 £0.70
443	EFPB0503000006 Available to backorder	Label	£2.76 £2.30
