DR 51 VB6 - - Efco Bush Hog Mower Frame assembly (From 2012) Diagram

Name: DR 51 VB6 - - Efco Bush Hog Mower Frame assembly (From 2012) Diagram
SKU: dr_51_vb6_frame_assembly_from_2012_-group
Price: 0.7 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

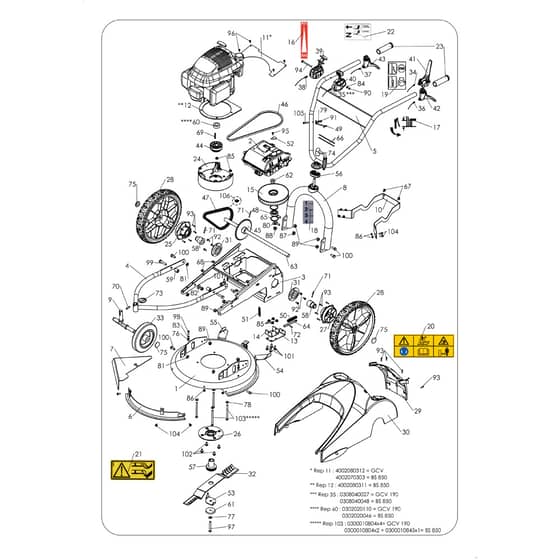

DR 51 VB6 - - Efco Bush Hog Mower Frame assembly (From 2012) Diagram

Description

Efco DR 51 VB6 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
2	EFPB4001000002 Available to backorder	Transmission	£361.20 £301.00
4	EFPB4002030306 Available to backorder	Front Chassis	£112.40 £93.67
5	EFPB4002030303 Available to backorder	Handlebar	£142.10 £118.42

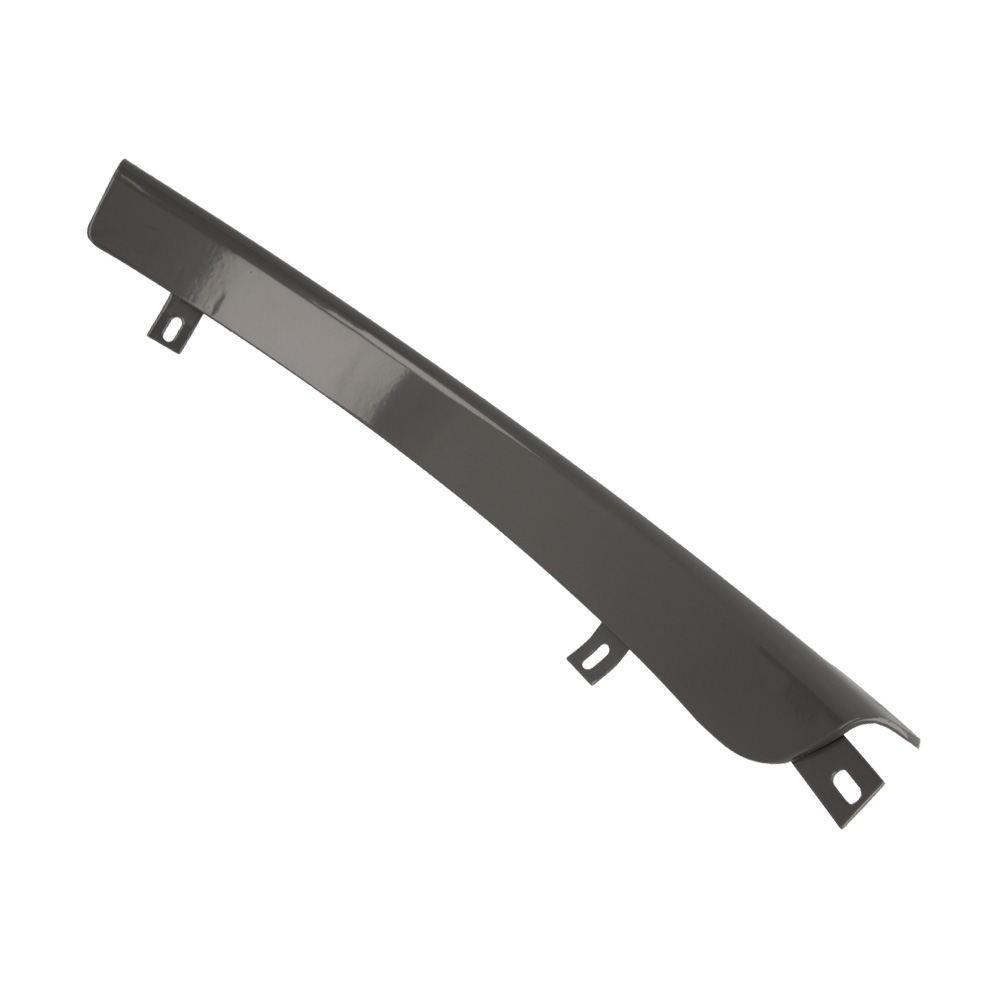

6	EFPB4002000505 Available to backorder	Deflector	£67.42 £56.18
7	EFPB4002000516R Available to backorder	Deflector	£50.74 £42.28
8	EFPB4002080304 Available to backorder	Anti-Rollbar	£126.28 £105.23
9	EFPB4002000304 Available to backorder	Wheel Support	£94.94 £79.12
13	EFPB4002040104 Available to backorder	Support	£8.88 £7.40
14	EFPB4002000102 Available to backorder	Locking Pin Support	£13.14 £10.95
15	EFPB0303010002 Available to backorder	Pulley	£64.34 £53.62
17	EFPB0503000055 Available to backorder	Label	£3.68 £3.07
18	EFPB0503000054 Available to backorder	Label	£3.68 £3.07
19	EFPB0503000026 Available to backorder	Label	£5.44 £4.53
20	EFPB0503000016 Available to backorder	Label	£8.74 £7.28
21	EFPB0503000006 Available to backorder	Label	£2.76 £2.30
22	EFPB0503000002 Available to backorder	Label	£3.68 £3.07
23	EFPB0341000036 Available to backorder	Plastic Handle	£5.44 £4.53
24	EFPB0340030034 Available to backorder	Plastic Chock	£54.84 £45.70
25	EFPB0340030029 Available to backorder	Free Bearing Right Wheel	£35.82 £29.85
26	EFPB0340030028 Available to backorder	Bearing	£48.86 £40.72
27	EFPB0340030027 Available to backorder	Free Left Wheel Bearing	£90.32 £75.27
28	EFPB0340030026 Available to backorder	Rear Wheel	£117.48 £97.90
31	EFPB0340030013 Available to backorder	Wheel Shaft Bearing	£14.68 £12.23
32	EFPB0320020006 Available to backorder	Blade	£69.46 £57.88
33	EFPB0309000009 Available to backorder	Front Wheel	£41.32 £34.43
34	EFPB0308050012 Available to backorder	Engine Break Cable	£14.90 £12.42
35	EFPB0308040048 Available to backorder	Accelerator Cable	£15.80 £13.17
36	EFPB0308030007 Available to backorder	Height Adjustment Cable	£18.50 £15.42
37	EFPB0308020048 Available to backorder	Clutch Cable	£25.50 £21.25
38	EFPB0308010011 Available to backorder	Variator Cable	£21.94 £18.28
41	EFPB0307010023 Available to backorder	Brake Lever	£18.98 £15.82
42	EFPB0307010021 Available to backorder	30 Stroke Lever	£17.76 £14.80
43	EFPB0307010020 Available to backorder	Lever	£17.48 £14.57
44	EFPB0306060014 Available to backorder	Variable Engine Pulley	£150.68 £125.57

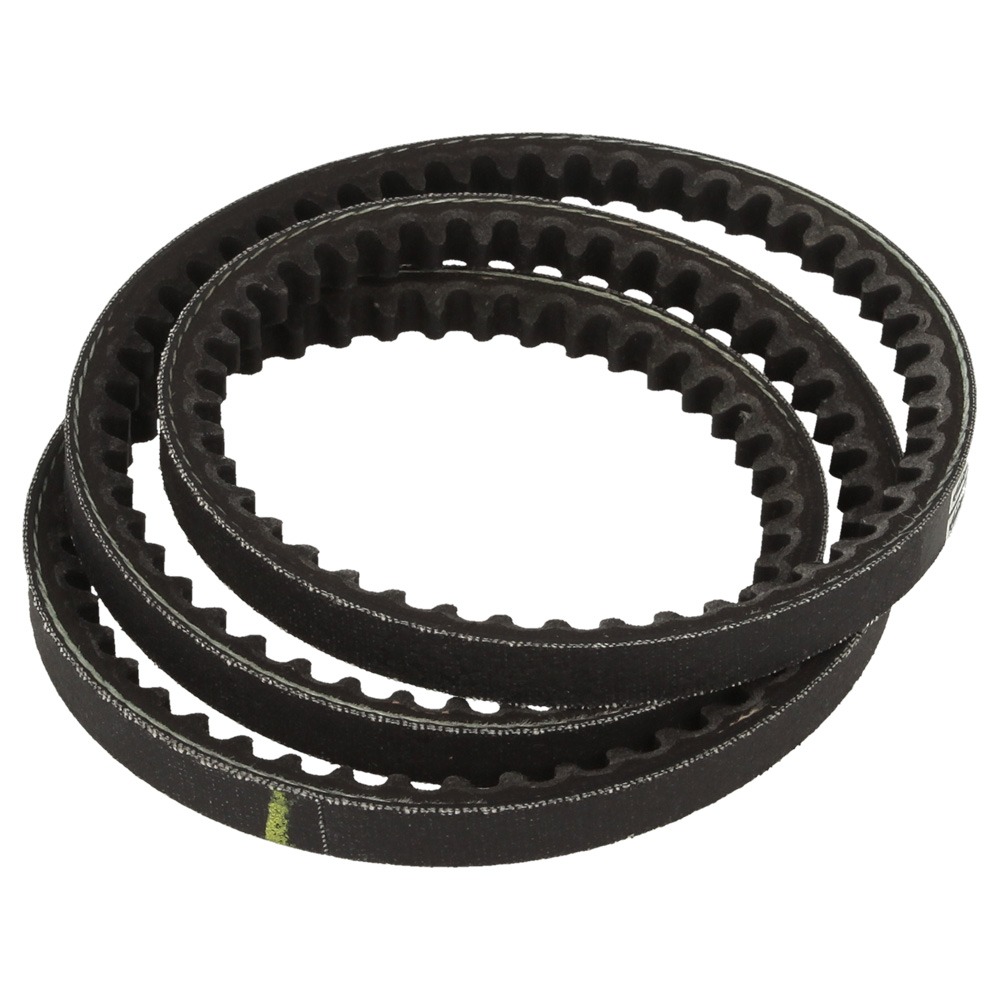

46	EFPB0306030055 Available to backorder	Belt	£18.35 £15.29

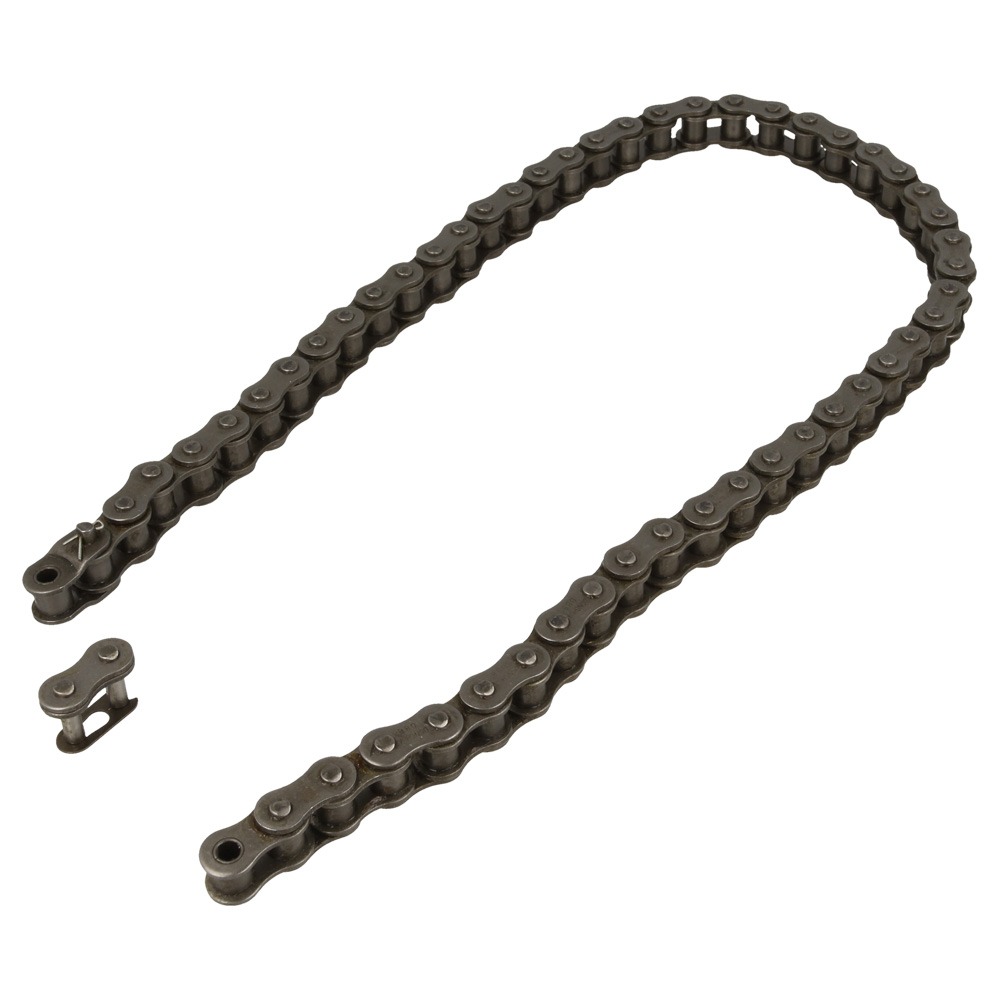

47	EFPB0306020025 Available to backorder	Chain	£27.36 £22.80
49	EFPB0305030001 Available to backorder	Hooking Spring	£5.44 £4.53
50	EFPB0305020001 Available to backorder	Spring	£1.84 £1.53
53	EFPB0304000117 Available to backorder	String Cutter	£18.84 £15.70
54	EFPB0304000116 Available to backorder	Reinforced Left Rear Bonnet	£12.86 £10.72
55	EFPB0304000115 Available to backorder	Reinforced Right Rear Bonnet	£12.86 £10.72
56	EFPB0303000013 Available to backorder	Inner Ellipse	£27.56 £22.97
58	EFPB0302030048 Available to backorder	Wheel Hub	£32.44 £27.03
59	EFPB0302020049 Available to backorder	Spacer	£3.68 £3.07
60	EFPB0302020046 Available to backorder	Spacer	£8.88 £7.40
61	EFPB0302020042 Available to backorder	Washer	£12.96 £10.80
63	EFPB0302010054 Available to backorder	Wheel Shaft	£44.12 £36.77
64	EFPB0302010030 Available to backorder	Axel Lift	£15.92 £13.27
65	EFPB0301070006 Available to backorder	Circlips	£1.84 £1.53
66	EFPB0301060003 Available to backorder	Polyamide Circlip	£0.90 £0.75
67	EFPB0301050002 Available to backorder	Clip	£0.90 £0.75
68	EFPB0301050005 Available to backorder	Clip	£5.62 £4.68
69	EFPB0301040001 Available to backorder	Key	£2.76 £2.30
70	EFPB0301020007 Available to backorder	Plug	£1.84 £1.53
71	EFPB0301020005 Available to backorder	Plug	£0.90 £0.75

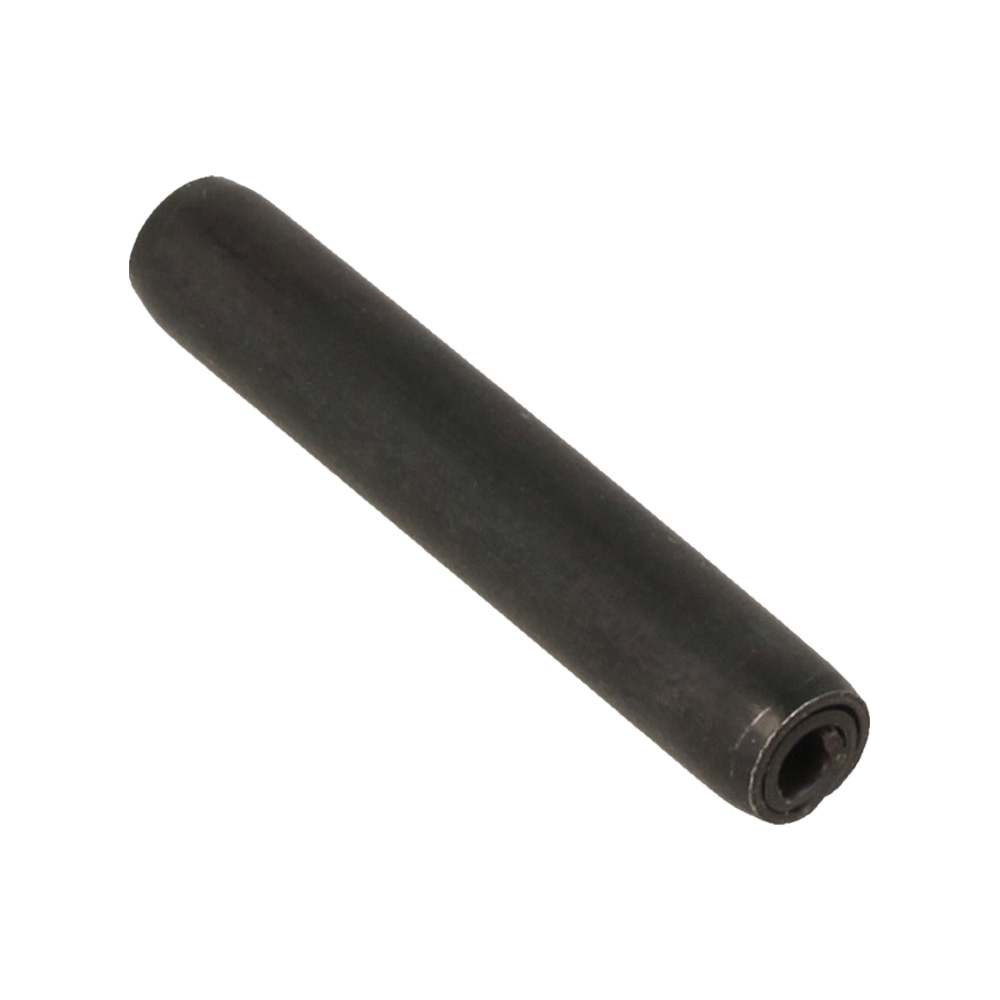

72	EFPB0301020002 Available to backorder	Plug	£2.00 £1.67
73	EFPB0301010009 Available to backorder	Plug	£5.44 £4.53

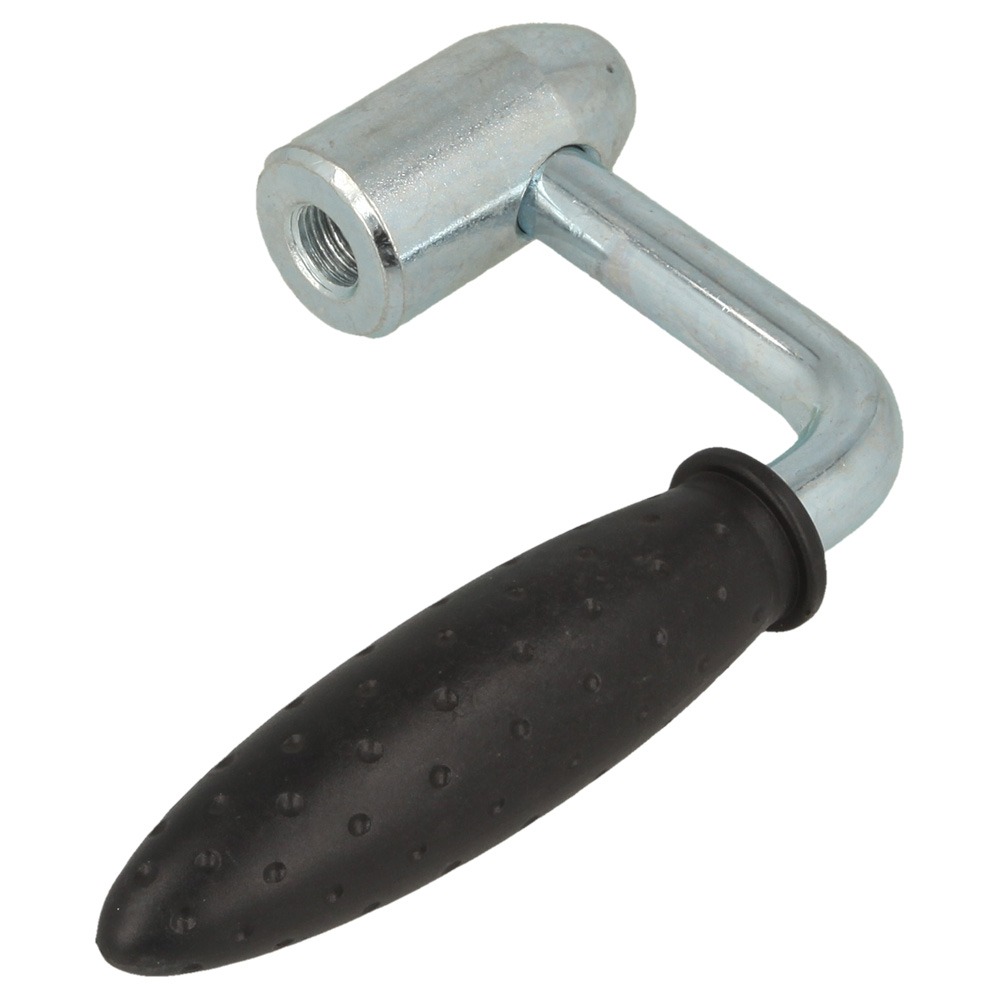

74	EFPB0300801202 Available to backorder	Tightening Handle	£20.70 £17.25
75	EFPB0300702001 Available to backorder	Hub Cap	£5.44 £4.53
77	EFPB0300431001 Available to backorder	Washer	£0.90 £0.75
78	EFPB0300430801 Available to backorder	Washer	£0.90 £0.75
79	EFPB0300430601 Available to backorder	Washer	£8.74 £7.28
81	EFPB0300401002 Available to backorder	Washer	£3.01 £2.51
82	EFPB0300401001 Available to backorder	Washer	£0.90 £0.75
83	EFPB0300400603 Available to backorder	Washer	£0.90 £0.75
84	EFPB0300400602 Available to backorder	Washer	£0.90 £0.75
85	EFPB0300260801 Available to backorder	Nut	£0.90 £0.75
86	EFPB0300260601 Available to backorder	Nut	£0.90 £0.75
88	EFPB0300211201 Available to backorder	Nut	£0.90 £0.75
89	EFPB0300211001 Available to backorder	Nut	£0.84 £0.70
90	EFPB0300210602 Available to backorder	Nut	£0.90 £0.75
92	EFPB0300090602 Available to backorder	Screw	£1.84 £1.53
93	EFPB0300090403 Available to backorder	Screw	£0.94 £0.78
97	EFPB0300060304 Available to backorder	Screw	£3.68 £3.07
99	EFPB0300011014 Available to backorder	Screw	£1.84 £1.53
100	EFPB0300011008 Available to backorder	Screw	£0.90 £0.75
101	EFPB0300010816 Available to backorder	Screw	£0.90 £0.75
102	EFPB0300010815 Available to backorder	Screw	£0.90 £0.75
103	EFPB0300010856 Available to backorder	Screw	£1.90 £1.58
104	EFPB0300010609 Available to backorder	Screw	£0.90 £0.75
105	EFPB0300010604 Available to backorder	Screw	£0.90 £0.75
106	EFPB0001000378 Available to backorder	Quick Fastener	£3.68 £3.07
