DR 51 S6 - - Efco Bush Hog Mower Illustrated parts list Diagram

Description

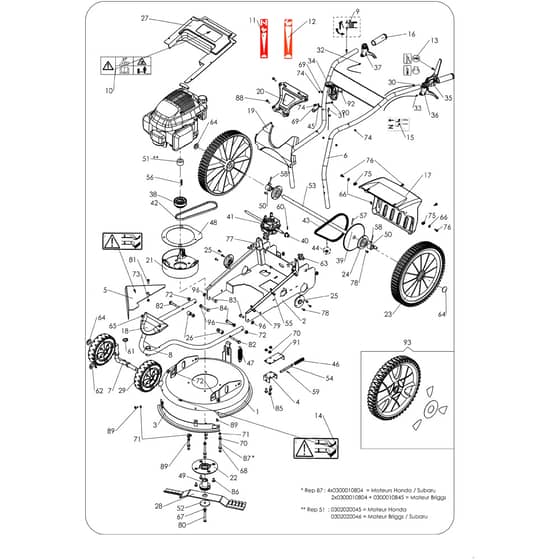

Efco DR 51 S6 Parts Diagram

Model Year -

	Part No.	Details
1	EFPB4002063003 Available to backorder	Blade Guard	£195.60 £163.00
3	EFPB4002000505 Available to backorder	Deflector	£69.72 £58.10
4	EFPB4002000102 Available to backorder	Locking Pin Support	£13.56 £11.30

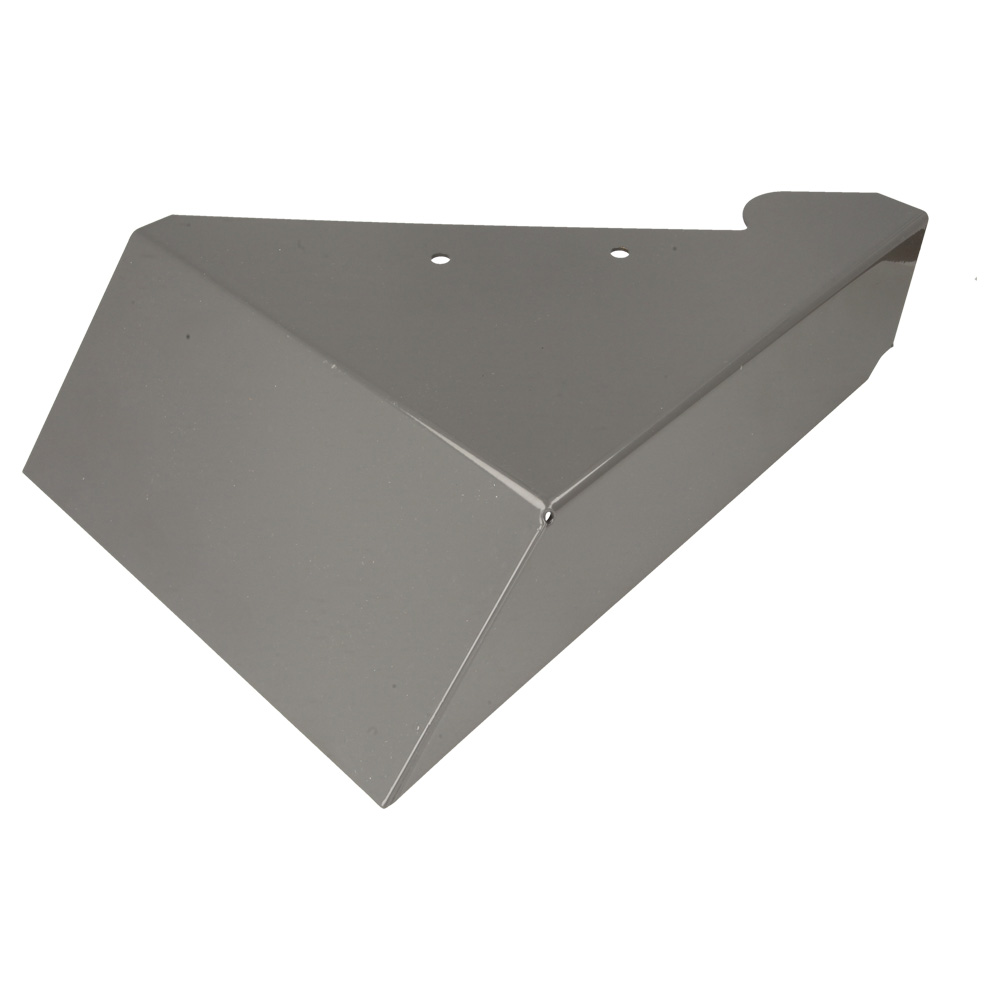

5	EFPB4002003016R Available to backorder	Side Deflector	£51.60 £43.00
6	EFPB4002090502 Available to backorder	Handlebar	£159.24 £132.70
9	EFPB0503000055 Available to backorder	Label	£3.84 £3.20
10	EFPB0503000049 Available to backorder	Label	£3.84 £3.20
11	EFPB0503000044 Available to backorder	Label	£3.84 £3.20
12	EFPB0503000043 Available to backorder	Label	£3.01 £2.51
13	EFPB0503000026 Available to backorder	Label	£5.64 £4.70
14	EFPB0503000006 Available to backorder	Label	£3.01 £2.51
15	EFPB0503000002 Available to backorder	Label	£3.84 £3.20
16	EFPB0341000036 Available to backorder	Plastic Handle	£5.64 £4.70
17	EFPB0340030047 Available to backorder	Rear Hood	£24.24 £20.20
19	EFPB0340030048 Available to backorder	Lower Hood	£10.32 £8.60
21	EFPB0340030034 Available to backorder	Plastic Chock	£56.76 £47.30
22	EFPB0340030028 Available to backorder	Bearing	£50.52 £42.10
24	EFPB0340030013 Available to backorder	Wheel Shaft Bearing	£15.24 £12.70
25	EFPB0340030012 Available to backorder	Countershaft Bearing	£134.04 £111.70
26	EFPB0340030010 Available to backorder	Spacer	£2.00 £1.67
27	EFPB0340030001 Available to backorder	Engine Hood	£26.04 £21.70
28	EFPB0320020006 In stock	Blade	£71.88 £59.90
29	EFpb0309000033 Available to backorder	Wheel	£13.92 £11.60
30	EFPB0308050015 Available to backorder	Brake Cable	£19.08 £15.90
31	EFPB0308040050 Available to backorder	Throttle Cable	£10.68 £8.90
32	EFPB0308030008R Available to backorder	Height Adjustment Cable	£26.04 £21.70
33	EFPB0308020062 In stock	Clutch Cable	£27.84 £23.20
34	EFPB0307020023 Available to backorder	Gas Lever	£20.28 £16.90
35	EFPB0307010023 Available to backorder	Brake Lever	£19.68 £16.40
36	EFPB0307010021 Available to backorder	30 Stroke Lever	£18.36 £15.30
37	EFPB0307010020 Available to backorder	Lever	£18.12 £15.10
38	EFPB0306060014 Available to backorder	Variable Engine Pulley	£144.60 £120.50
39	EFPB0306050029 Available to backorder	Sprocket 60 Teeth	£119.64 £99.70
40	EFPB0306050028 Available to backorder	Sprocket 9 Teeth	£5.64 £4.70
41	EFPB0306040012 Available to backorder	Reduction Gear	£167.88 £139.90
42	EFPB0306030048 Available to backorder	Harness	£17.64 £14.70
43	EFPB0306020020 Available to backorder	Chain	£19.80 £16.50
44	EFPB0306020001 Available to backorder	Quick Fastener	£3.01 £2.51
45	EFPB0305030001 Available to backorder	Hooking Spring	£5.64 £4.70
46	EFPB0305020001 Available to backorder	Spring	£2.00 £1.67
47	EFPB0305010009 Available to backorder	Spring	£12.24 £10.20
49	EFPB0302030047 Available to backorder	Hub	£68.16 £56.80
50	EFPB0302030014 Available to backorder	Wheel Hub	£23.52 £19.60
51	EFPB0302020045 Available to backorder	Spacer	£12.60 £10.50
52	EFPB0302020042 Available to backorder	Washer	£13.44 £11.20
53	EFPB0302010091 Available to backorder	Wheel Shaft	£45.60 £38.00
54	EFPB0302010030 Available to backorder	Axel Lift	£16.44 £13.70
55	EFPB0301050005 Available to backorder	Clip	£5.76 £4.80
56	EFPB0301040001 Available to backorder	Key	£3.01 £2.51
57	EFPB0301020005 Available to backorder	Plug	£1.08 £0.90
58	EFPB0301020004 Available to backorder	Plug	£2.00 £1.67
59	EFPB0301020002 Available to backorder	Plug	£2.00 £1.67
60	EFPB0301020001 Available to backorder	Plug	£1.08 £0.90
61	EFPB0301020007 Available to backorder	Plug	£2.00 £1.67
62	EFPB0301010013 Available to backorder	Plug	£2.53 £2.11
63	EFPB0300800004R Available to backorder	Adjustment Wheel	£5.76 £4.80
64	EFPB0300702001 Available to backorder	Hub Cap	£5.64 £4.70
66	EFPB0300470501 Available to backorder	Washer	£0.48 £0.40
67	EFPB0300431001 Available to backorder	Washer	£1.08 £0.90
68	EFPB0300430801 Available to backorder	Washer	£1.08 £0.90
69	EFPB0300430601 Available to backorder	Washer	£9.00 £7.50
70	EFPB0300260801 Available to backorder	Nut	£1.08 £0.90
71	EFPB0300260601 Available to backorder	Nut	£1.08 £0.90
72	EFPB0300211001 Available to backorder	Nut	£1.01 £0.84
73	EFPB0300210802 Available to backorder	Nut	£1.08 £0.90
74	EFPB0300210602 Available to backorder	Nut	£1.08 £0.90
75	EFPB0300130502 In stock	Nut	£1.51 £1.26
76	EFPB0300130501 Available to backorder	Screw	£1.27 £1.06
77	EFPB0300090802 Available to backorder	Screw	£5.40 £4.50
78	EFPB0300090602 Available to backorder	Screw	£2.00 £1.67
80	EFPB0300060304 Available to backorder	Screw	£3.84 £3.20
81	EFPB0300020804 Available to backorder	Screw	£1.08 £0.90
83	EFPB0300011008 Available to backorder	Screw	£1.08 £0.90
85	EFPB0300010816 Available to backorder	Screw	£1.08 £0.90
86	EFPB0300010815 In stock	Screw	£1.08 £0.90
87	EFPB0300010856 Available to backorder	Screw	£2.08 £1.73
89	EFPB0300010609 Available to backorder	Screw	£1.08 £0.90
90	EFPB0300010604 Available to backorder	Screw	£1.08 £0.90
91	EFPB4002040104 Available to backorder	Support	£9.24 £7.70
93	EF68210002 Available to backorder	Wheel Kit 42705	£149.88 £124.90
