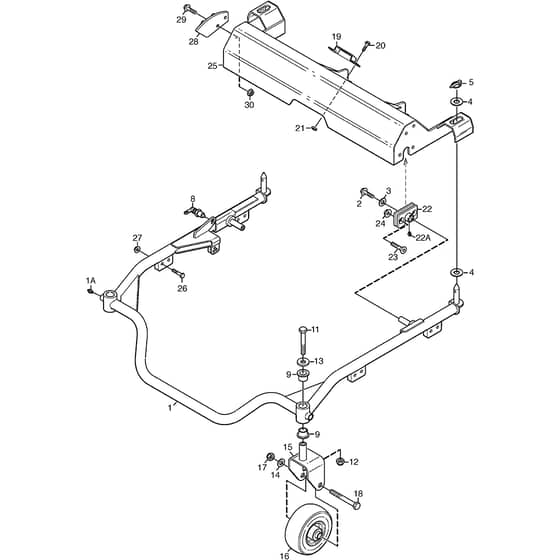

DOD RM135H - 2010 - 13-7823-22 - Stiga Front Mower Deck Frame Diagram

Name: DOD RM135H - 2010 - 13-7823-22 - Stiga Front Mower Deck Frame Diagram
SKU: dod_rm135h_13_7823_22_deck_frame-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DOD RM135H - 2010 - 13-7823-22 - Stiga Front Mower Deck Frame Diagram

Description

Stiga DOD RM135H Parts Diagram

Product Name - Mover Deck 135H DOD

Model Year - 2010

Model Type -

Art.N - 13-7823-22

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-1146-01 Available to backorder	Carrier Frame Assy	£1,390.43 £1,158.69
3	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
4	MO1134-7411-01 Available to backorder	Washer	£3.10 £2.58
5	MO1134-7345-01 Available to backorder	Locking Pin	£1.55 £1.29
8	MO1134-7330-01 Available to backorder	Catch Bolt	£137.95 £114.96
9	MO1134-5686-01 In stock	Bearing	£14.22 £11.85
11	MO9997-1211-02 In stock	Screw	£5.64 £4.70
12	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
13	MO1134-7410-01 In stock	Washer	£3.10 £2.58
14	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
15	MO1134-7477-01 Available to backorder	Wheel Fork Assy	£117.54 £97.95
16	MO1135-3394-01 Available to backorder	Wheel	£155.60 £129.67
17	MO9747-1631-02 Available to backorder	Nut	£2.04 £1.70
18	MO9997-1616-02 Available to backorder	Screw	£5.35 £4.46
22	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
22	MO1134-7002-01 Available to backorder	Support	£165.07 £137.56
23	MO9924-1240-16 Available to backorder	Screw	£1.55 £1.29
26	MO9997-1045-12 Available to backorder	Screw	£2.81 £2.34
27	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
28	MO1134-7435-01 Available to backorder	Catch	£81.66 £68.05
29	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
