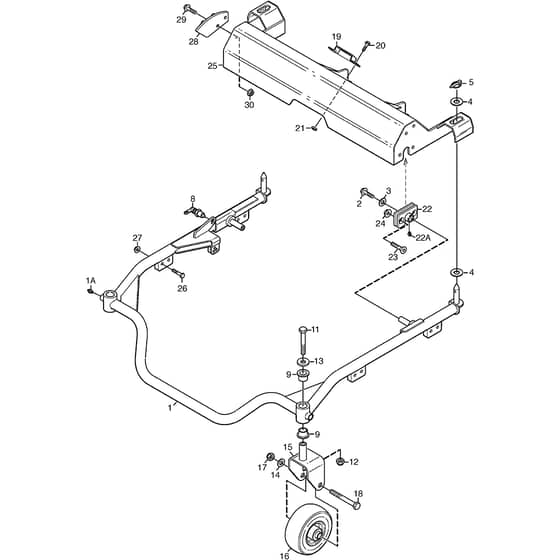

DOD RM135B - 2010 - 13-7813-12 - Stiga Front Mower Deck Frame Diagram

Name: DOD RM135B - 2010 - 13-7813-12 - Stiga Front Mower Deck Frame Diagram
SKU: dod_rm135b_13_7813_12_deck_frame-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DOD RM135B - 2010 - 13-7813-12 - Stiga Front Mower Deck Frame Diagram

Description

Stiga DOD RM135B Parts Diagram

Product Name - Mover Deck 135B DOD

Model Year - 2010

Model Type -

Art.N - 13-7813-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
1	MO1137-1146-01 Available to backorder	Carrier Frame Assy	£1,390.43 £1,158.69
2	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
3	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
4	MO1134-7411-01 Available to backorder	Washer	£3.10 £2.58
5	MO1134-7345-01 Available to backorder	Locking Pin	£1.55 £1.29
8	MO1134-7330-01 Available to backorder	Catch Bolt	£137.95 £114.96

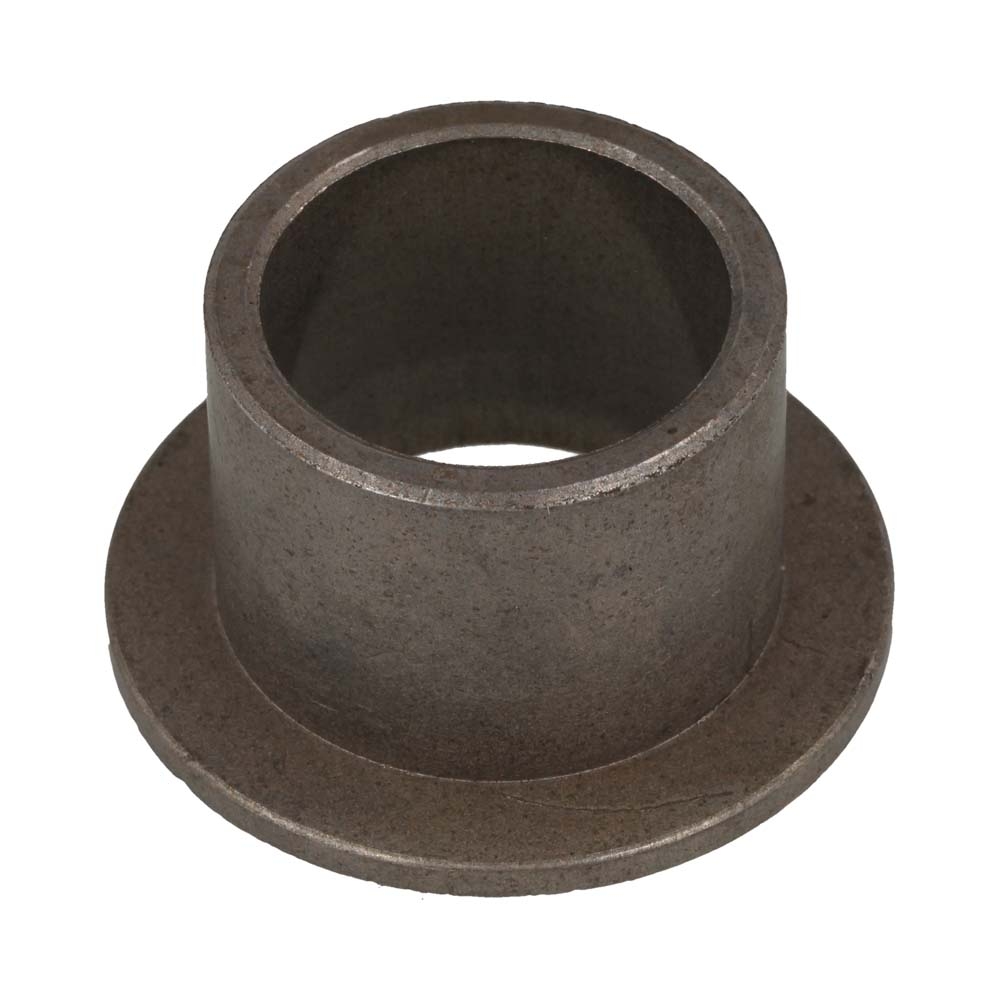

9	MO1134-5686-01 In stock	Bearing	£14.22 £11.85

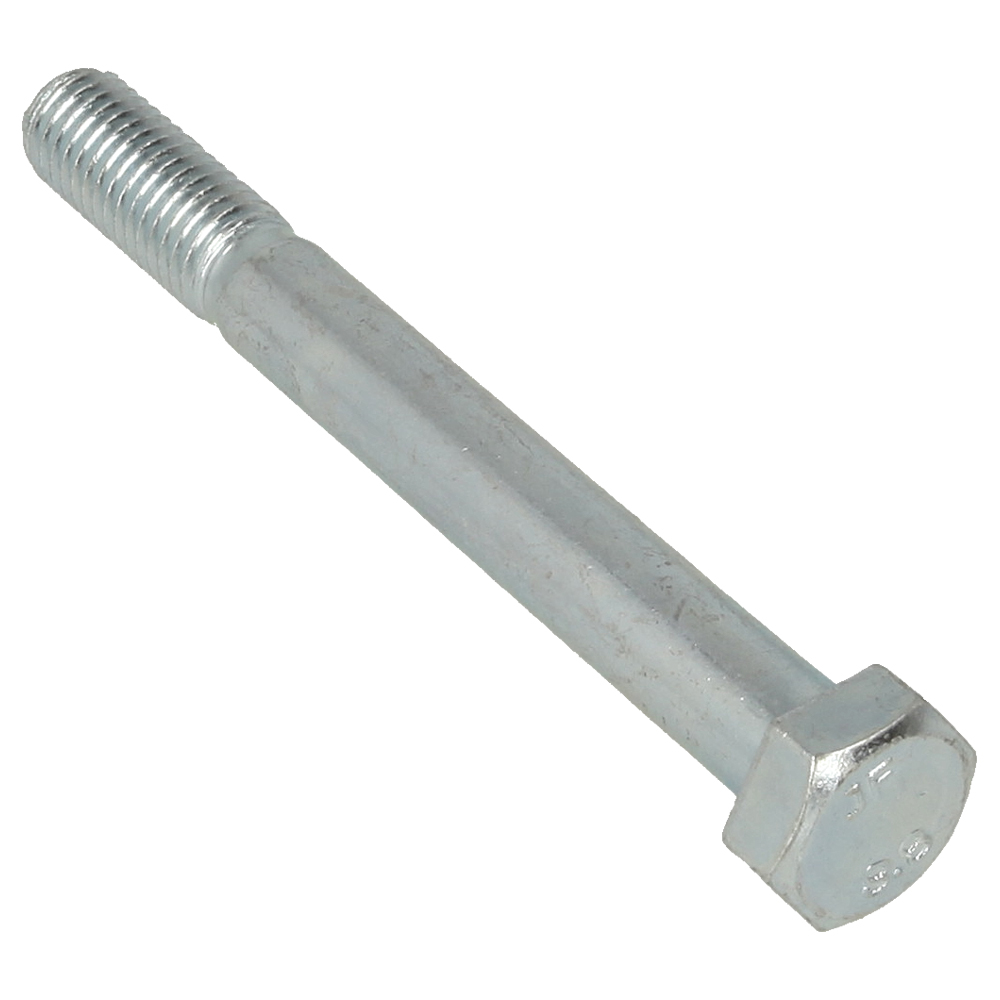

11	MO9997-1211-02 In stock	Screw	£5.64 £4.70
12	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48

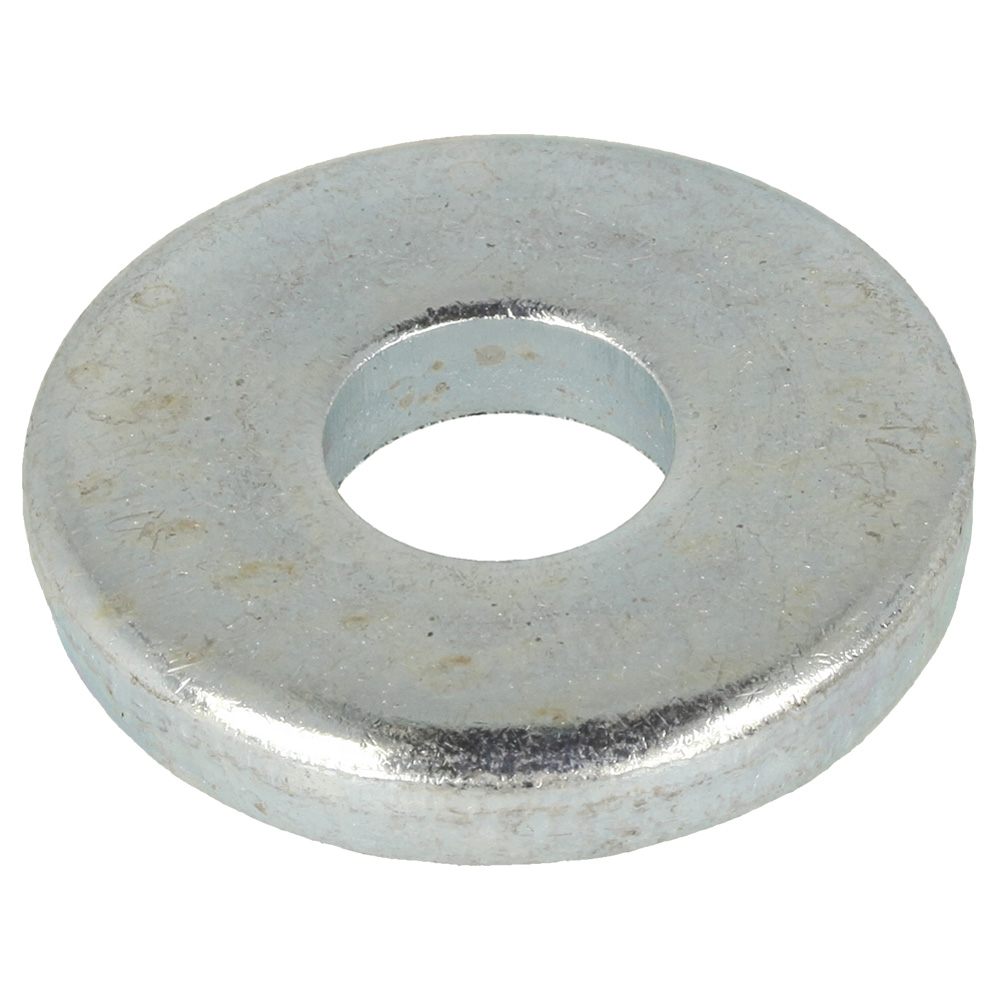

13	MO1134-7410-01 In stock	Washer	£3.10 £2.58
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
