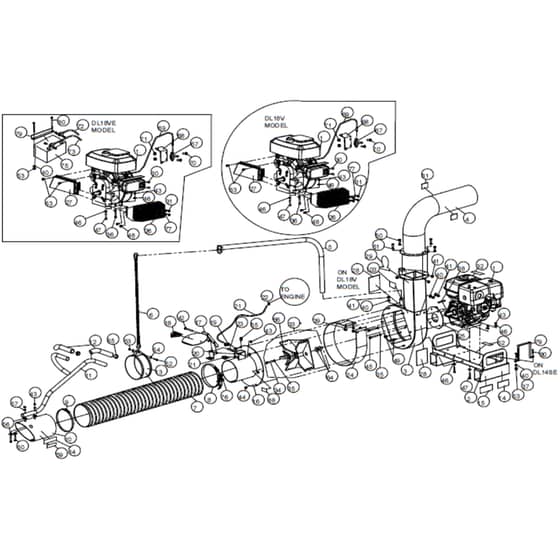

Billy Goat DL1801V - DL Truck Loader Vacuum Main Diagram

Name: Billy Goat DL1801V - DL Truck Loader Vacuum Main Diagram
SKU: dl1801v_dl_truck_loader_vacuum_main-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

DL1801V Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	BG812604 Available to backorder	Elbow Assy 7" Dl	£526.80 £439.00
6	BG791117-S Available to backorder	Chain Hose Hang Dl	£53.84 £44.87

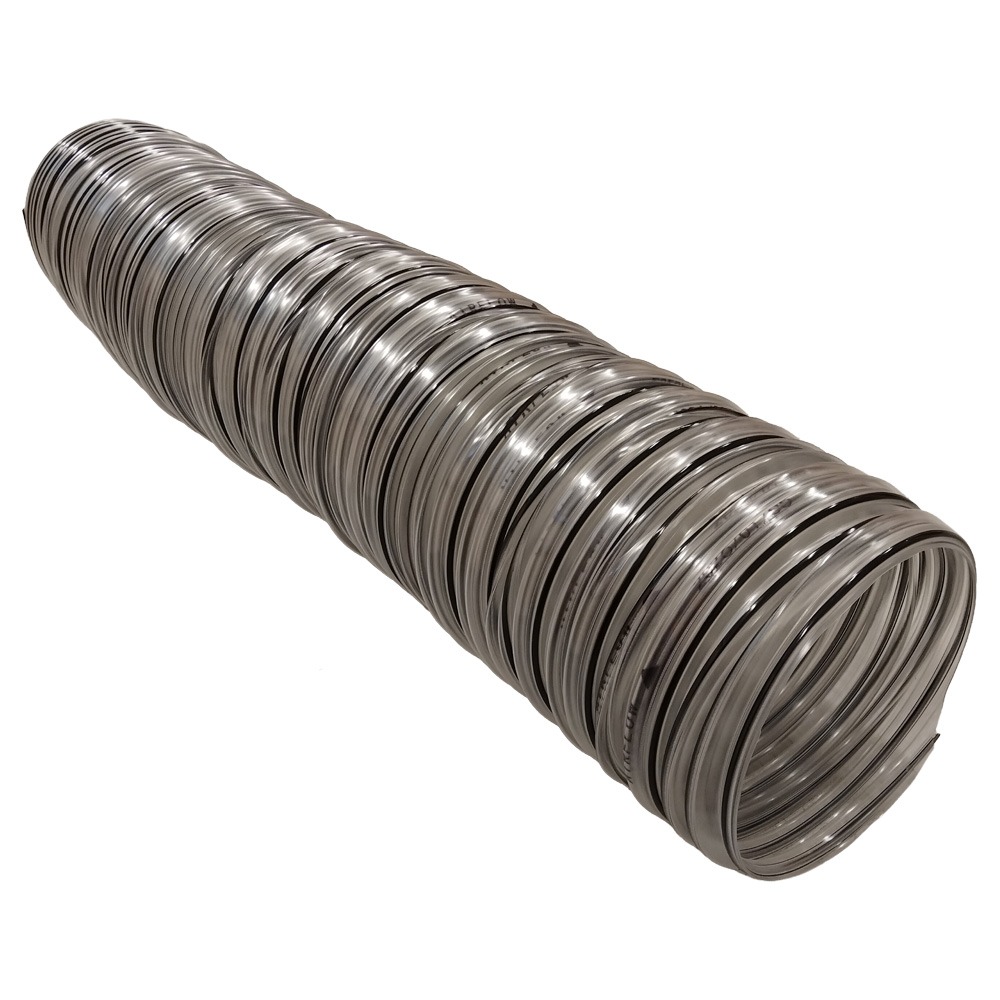

7	BG791033-S Available to backorder	Hose 10" X 10"	£702.00 £585.00

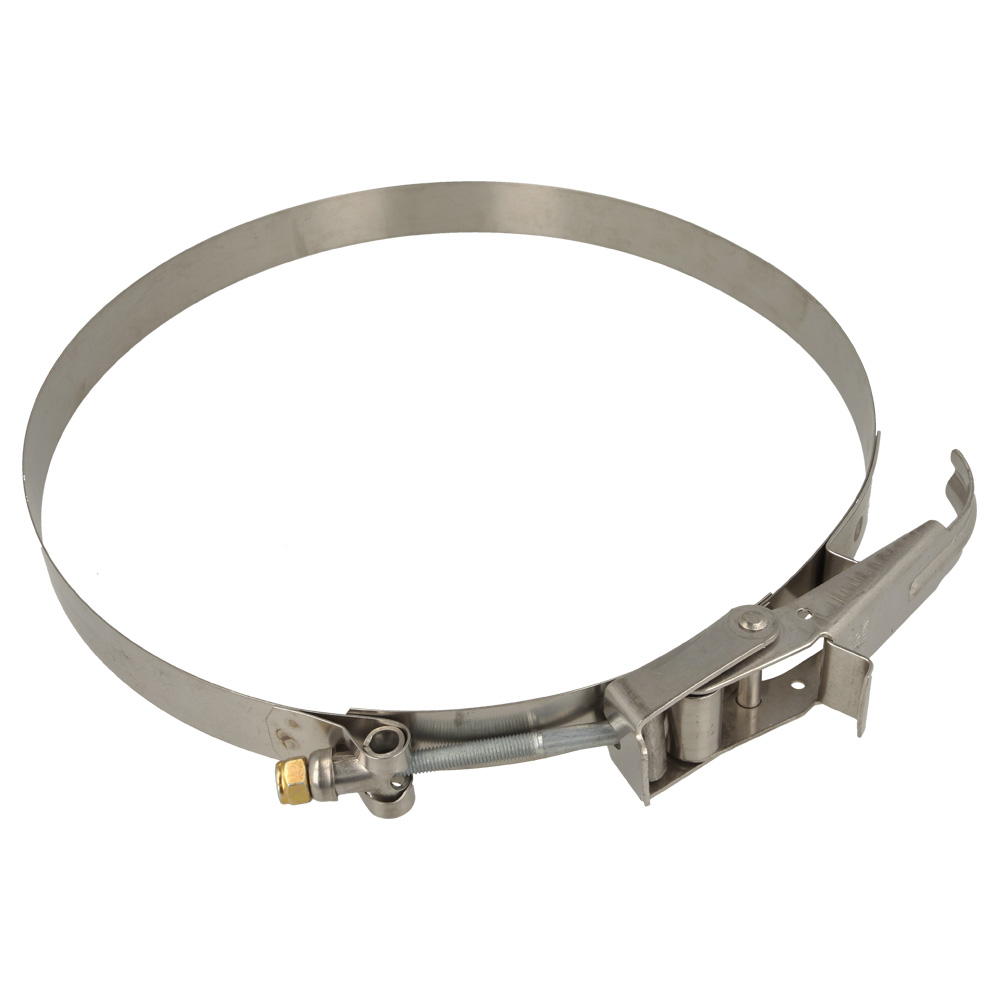

8	BG791064 Available to backorder	Clamp Quick Release 10"	£74.88 £62.40

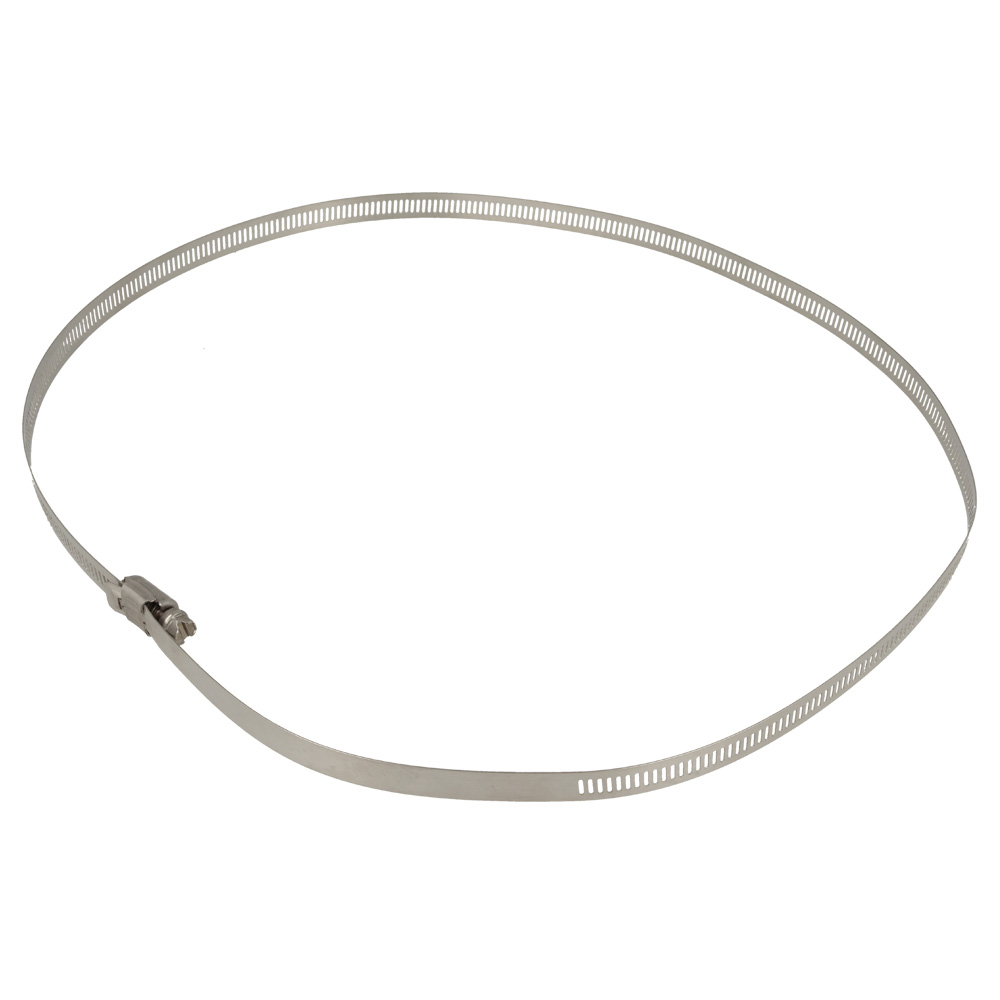

9	BG810706-01 Available to backorder	Clamp Hose 10"	£19.44 £16.20
11	BG791116-S Available to backorder	Handle Nozzle Wa Debris Loader	£171.18 £142.65
12	BG440146 Available to backorder	Grip 1 1/4 Id X 95 Long	£8.72 £7.27
13	BG810868 Available to backorder	Band Hose Boom 10" Formed	£37.80 £31.50
18	BG400424 Available to backorder	Label Warning Opei	£3.71 £3.09
21	BG791130-S Available to backorder	Switch And Harness Dl Assy	£111.72 £93.10
24	BG812214 Available to backorder	Liner Dl18	£164.96 £137.47
33	BG810930 Available to backorder	Impeller Assy (Item 66 Not Included)	£443.04 £369.20
35	BG8177012 Available to backorder	Washer Lock 3/8"	£1.20 £1.00
36	BG8041032 Available to backorder	Screwcap 5/16-18 X 2" Hcs Zp	£0.97 £0.81
38	BG9201125 Available to backorder	Key 1/4 Sq X 2 3/4"	£2.18 £1.82
39	BG8024058 Available to backorder	Bolt Carriage 3/8 -16 X 1" Zp	£1.28 £1.07
40	BG8171004 Available to backorder	Washer 3/8 Flat Cut	£1.20 £1.00
41	BG8160003 Available to backorder	Nut Lock 3/8-16 Hex Zp	£1.20 £1.00
42	BG8024050 Available to backorder	Bolt Carriage 5/16" - 18 X 3 1/2" Zp	£0.97 £0.81
43	BG8160002 Available to backorder	Nut Lock 5/16-18 Hex Zp	£0.97 £0.81
44	BG350346 Available to backorder	Nut Flange 5/16-18 Hex Zp	£0.97 £0.81
46	BG8171003 Available to backorder	Washer 5/16 Flat Zp	£0.78 £0.65
47	BG8041031 Available to backorder	Screwcap 5/16-18 X 1 3/4" Hcs Zp	£0.97 £0.81
48	BG890359 Available to backorder	Screw Sm 1/4 X 3/4" Type Ab Hx Wf	£1.34 £1.12
49	BG791080 Available to backorder	Hex Washer Face Bolt 3/8-16 X 3/4	£1.28 £1.07
50	BG8041050 Available to backorder	Screwcap 3/8-16 X 1" Hcs Zp	£1.20 £1.00
51	BG8172009 Available to backorder	Washer 3/8 Sae	£1.28 £1.07
53	BG8160001 Available to backorder	Nut Lock 1/4-20 Hex Zp	£0.97 £0.81
54	BG8172007 Available to backorder	Washer 1/4-20 Hex Zp	£0.78 £0.65
56	BG8172020 Available to backorder	Washer Fender 5/16	£0.78 £0.65
57	BG8172008 Available to backorder	Washer 5/16 Sae	£0.78 £0.65
61	BG810736 Available to backorder	Label Flying Debris	£3.71 £3.09
65	BG791056 Available to backorder	Plug Tube Insert 1 25 Od	£1.28 £1.07
66	BG812283 Available to backorder	Debris Reducer Dl12/13/18	£77.82 £64.85
67	BG440013 Available to backorder	Throttle Control Blower	£50.28 £41.90
71	BG8164005 Available to backorder	Nut Lock #10-24 Hex	£0.97 £0.81
76	BG800365 Available to backorder	Pin Safety	£2.40 £2.00
77	BG8181007 Available to backorder	Washer Lock 1/4" External Tooth	£0.78 £0.65
