DINO 47 B - 2009-2013 - 292470124/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: DINO 47 B - 2009-2013 - 292470124/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: dino_47_b_292470124_st9_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. dino_47_b_292470124_st9_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DINO 47 B - 2009-2013 - 292470124/ST9 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

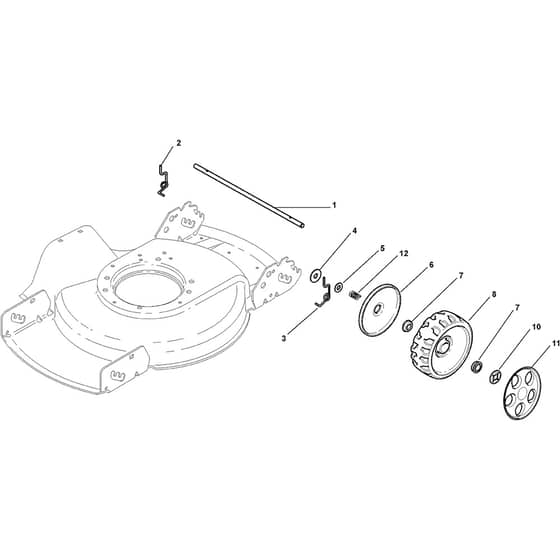

Stiga DINO 47 B Parts Diagram

Product Name - DINO 47 B

Model Year - 2009-2013

Model Type - DI 474

Art.N - 292470124/ST9

Engine Model - 450 series

	Part No.	Details
1	MO322033395/0 Available to backorder	Axle From 01-9-2006	£10.14 £8.45
2	MO122450442/0 Available to backorder	Spring. Right	£1.55 £1.29
3	MO122450441/0 Available to backorder	Left Spring	£1.55 £1.29
4	MO122671654/0 Available to backorder	Washer	£2.40 £2.00
5	MO112521370/0 Available to backorder	Washer From 01-9-2015	£1.63 £1.36
5	MO122671659/0 Available to backorder	Washer To 31-8-2015	£1.63 £1.36
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
7	MO122122206/0 In stock	Bearing From 01-9-2006	£1.84 £1.53
7	MO122122202/0 In stock	Bearing To 31-8-2006	£1.84 £1.53
8	MO322686091/1 In stock	Wheel To 31-8-2006	£6.77 £5.64
10	MO122020050/0 Available to backorder	Ring	£1.55 £1.29
11	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
12	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
