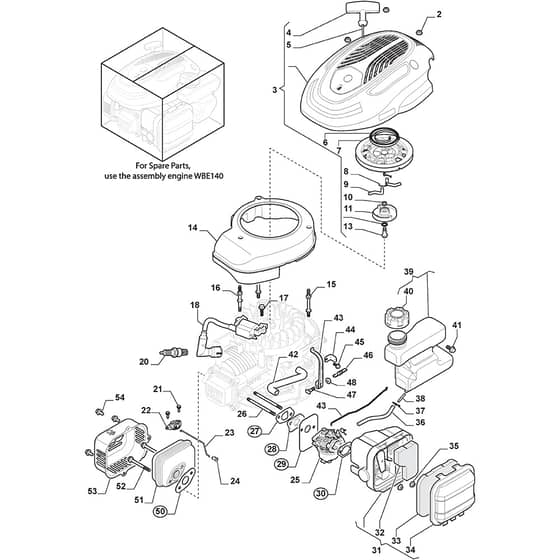

DINO 47 - 2019-2022 - 292470048/ST1 - Stiga Rotary Mower Carburettor Tank Diagram

Name: DINO 47 - 2019-2022 - 292470048/ST1 - Stiga Rotary Mower Carburettor Tank Diagram
SKU: dino_47_292470048_st1_carburettor_tank-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DINO 47 - 2019-2022 - 292470048/ST1 - Stiga Rotary Mower Carburettor Tank Diagram

Description

Stiga DINO 47 Parts Diagram

Product Name - DINO 47

Model Year - 2019-2022

Model Type - DI 474

Art.N - 292470048/ST1

Engine Model - ST 120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112292102/0 In stock	Nut	£1.69 £1.41
3	MO118552628/0 Available to backorder	Starter Assy	£72.50 £60.42
4	MO118551619/0 Available to backorder	Starter Handle	£9.00 £7.50
5	MO118550779/0 Available to backorder	Starting Rope	£7.19 £5.99
6	MO118551621/0 In stock	Starter Spring	£10.14 £8.45
7	MO118551620/0 Available to backorder	Starter Pulley	£15.48 £12.90
8	MO118551626/0 Available to backorder	Spring	£2.40 £2.00
9	MO118551622/0 Available to backorder	Ratchet. Starter	£2.95 £2.46
10	MO118551625/0 Available to backorder	Spring	£2.96 £2.47
11	MO118551623/0 Available to backorder	Cover	£7.88 £6.57
13	MO118551624/0 Available to backorder	Stud	£4.22 £3.52
14	MO118550908/0 Available to backorder	Air Guide	£38.00 £31.67
17	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
18	MO118551475/0 In stock	Elettronic Coil	£49.56 £41.30
53	MO118550900/0 Available to backorder	Muffler Guard	£21.12 £17.60
