DINO 47 - 2009-2013 - 292470144/ST9 - Stiga Rotary Mower Blade Diagram

Description

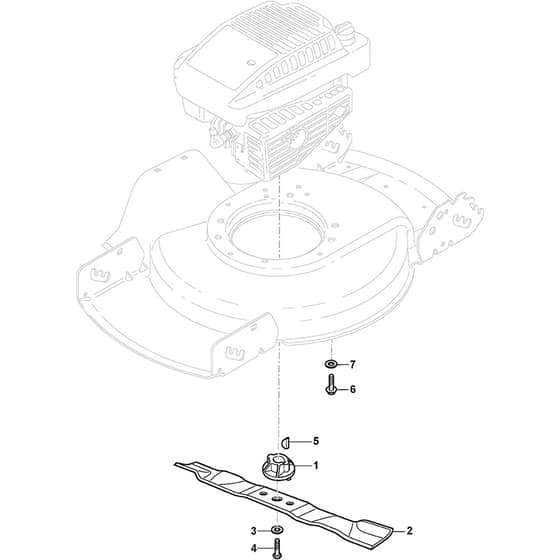

Stiga DINO 47 Parts Diagram

Product Name - DINO 47

Model Year - 2009-2013

Model Type - DI 474

Art.N - 292470144/ST9

Engine Model - RM 45 OHV

	Part No.	Details
1	MO122465617/0 Available to backorder	Hub	£16.24 £13.53
1	MO1111-9066-01 Available to backorder	Blade Hub	£47.41 £39.51
2	MO181004124/1 Available to backorder	Blade Standard From 01-9-2007	£11.98 £9.98
3	MO112530140/0 In stock	Washer	£1.97 £1.64
4	MO112735694/0 In stock	Screw	£1.97 £1.64
5	MO112139100/0 In stock	Key	£1.55 £1.29
6	MO112735108/1 In stock	Screw From 01-9-2007	£2.11 £1.76
7	MO112521355/0 Available to backorder	Washer 3.8" 10 X 18 X 2	£1.39 £1.16
