DI 474-G - 2012-2019 - 292470043/12 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

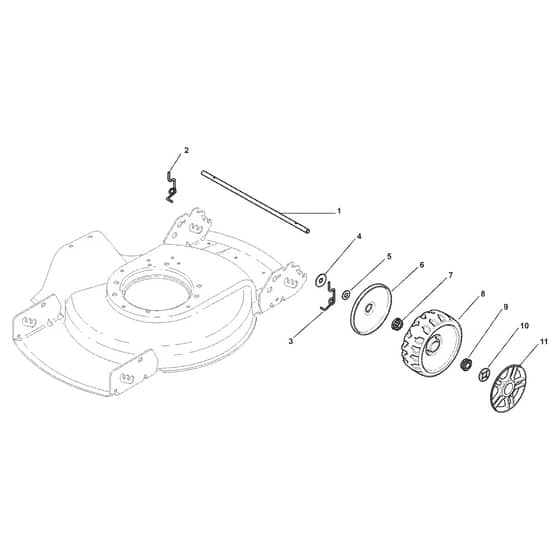

Castel Garden DI 474-G Parts Diagram

Product Name - DI 474 - G

Model Year - 2012-2019

Model Type - DI 474

Art.N - 292470043/12

Engine Model -

	Part No.	Details
1	MO322033395/0 Available to backorder	Axle From 01-9-2006	£10.14 £8.45
2	MO122450442/0 Available to backorder	Spring. Right	£1.55 £1.29
3	MO122450441/0 Available to backorder	Left Spring	£1.55 £1.29
4	MO122671654/0 Available to backorder	Washer	£2.40 £2.00
5	MO122671659/0 Available to backorder	Washer To 31-8-2015	£1.63 £1.36
5	MO112521370/0 Available to backorder	Washer From 01-9-2015	£1.63 £1.36
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
7	MO322034515/1 Available to backorder	Bushing From 01-9-2006	£1.70 £1.42
7	MO322034511/0 Available to backorder	Bushing To 31-8-2006	£2.40 £2.00
8	MO322686091/1 In stock	Wheel To 31-8-2006	£6.77 £5.64
9	MO122034508/0 In stock	Bushing	£1.55 £1.29
10	MO122020050/0 Available to backorder	Ring	£1.55 £1.29
11	MO322110729/0 In stock	Beta Hub Cap D.170 [Grey]	£2.69 £2.24
