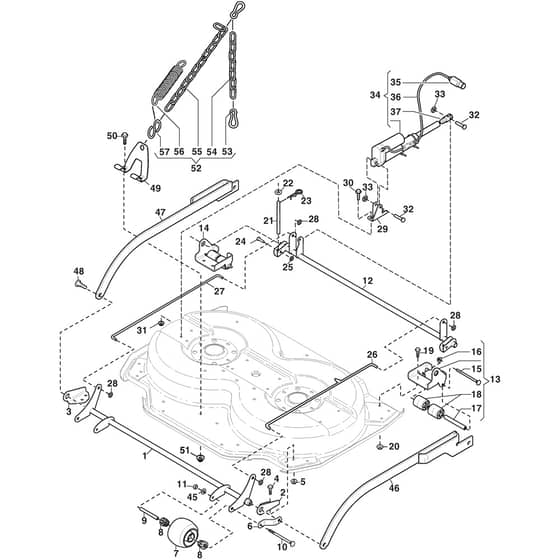

DECK VILLA 95 COMBI EL - 2015 - 13-2965-15 - Stiga Front Mower Controls Diagram

Name: DECK VILLA 95 COMBI EL - 2015 - 13-2965-15 - Stiga Front Mower Controls Diagram
SKU: deck_villa_95_combi_el_13_2965_15_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DECK VILLA 95 COMBI EL - 2015 - 13-2965-15 - Stiga Front Mower Controls Diagram

Description

Stiga DECK VILLA 95 COMBI EL Parts Diagram

Product Name - DECK VILLA 95 COMBI EL

Model Year - 2015

Model Type - DECK VILLA 95 COMBI EL

Art.N - 13-2965-15

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387000160/0 Available to backorder	Front Axle-Yellow	£98.54 £82.12
2	MO1134-6214-01 Available to backorder	Bracket Front-Lh (Yellow)	£12.95 £10.79
3	MO1134-6214-02 Available to backorder	Bracket Front-Rh (Yellow)	£12.95 £10.79
6	MO387318275/0 Available to backorder	Guide-Grey	£5.21 £4.34
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO387000161/0 Available to backorder	Rear Axle-Yellow	£82.36 £68.63
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket Inkl. pos 15 - 18	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket Inkl. pos 15 - 18	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 Available to backorder	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
21	MO1134-6198-01 Available to backorder	Stud	£19.42 £16.18
22	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
23	MO9598-2001-02 Available to backorder	Spring Pin	£4.78 £3.98
26	MO387000311/0 Available to backorder	Push Rod. Left	£38.00 £31.67
27	MO1134-6246-02 Available to backorder	Push Rod. Right	£14.89 £12.41
28	MO112604903/0 In stock	Washer	£1.55 £1.29
29	MO1134-6192-01 Available to backorder	Bracket	£10.63 £8.86
32	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
33	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
34	MO118001004/2 Available to backorder	Electric Lifter Inkl. pos 35 - 37	£351.95 £293.29
35	MO1134-6182-01 Available to backorder	Male Terminal	£26.66 £22.22
36	MO387149301/0 Available to backorder	Cable	£23.36 £19.47
45	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
46	MO1134-6237-03 Available to backorder	Grey Mower Deck Arm. Left	£107.70 £89.75
47	MO1134-6237-04 Available to backorder	Grey Mower Deck Arm. Right	£107.70 £89.75
48	MO1134-6279-01 Available to backorder	Shoulder Bolt	£2.26 £1.88
49	MO387773535/1 Available to backorder	Lift Bracket-Grey	£21.12 £17.60
50	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
51	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
52	MO1134-6363-01 Available to backorder	Lift Spring Assy Inkl. pos 31 - 35	£46.46 £38.72
53	MO1134-5528-01 Available to backorder	Snap Hook	£4.22 £3.52
54	MO1134-6368-02 Available to backorder	Chain 7 links	£22.56 £18.80
55	MO1134-6368-03 Available to backorder	Chain 12 links	£20.62 £17.18
56	MO1134-5625-01 Available to backorder	Spring	£36.59 £30.49
57	MO1134-4623-01 Available to backorder	S-Hook	£4.37 £3.64
