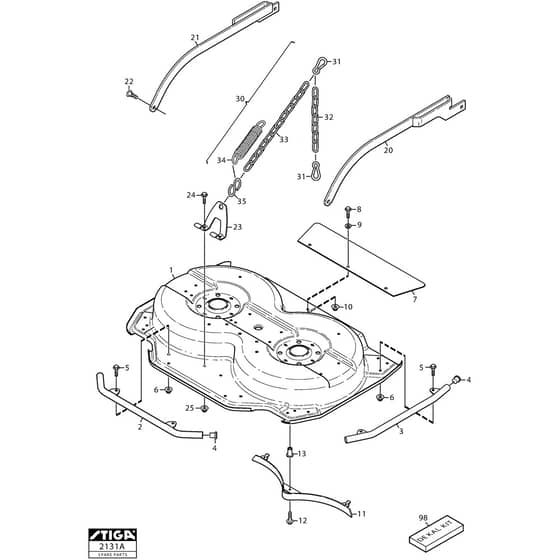

DECK VILLA 95 C EL - 2014 - 13-2965-15 - Stiga Front Mower Frame Diagram

Name: DECK VILLA 95 C EL - 2014 - 13-2965-15 - Stiga Front Mower Frame Diagram
SKU: deck_villa_95_c_el_13_2965_15_frame-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DECK VILLA 95 C EL - 2014 - 13-2965-15 - Stiga Front Mower Frame Diagram

Description

Stiga DECK VILLA 95 C EL Parts Diagram

Product Name - DECK VILLA 95 C EL

Model Year - 2014

Model Type - 95 C EL

Art.N - 13-2965-15

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387561531/1 Available to backorder	Casing-Yellow 95C	£499.58 £416.32
2	MO387869259/0 Available to backorder	Front Guard Tube-Grey	£44.76 £37.30
3	MO1134-6222-01 Available to backorder	Side Guard Tube-Grey 95C	£43.64 £36.37
4	MO9403-0025-80 Available to backorder	End Plug. Grey	£2.40 £2.00
7	MO1134-6281-02 Available to backorder	Rubber Guard	£19.14 £15.95
9	MO1134-4185-01 Available to backorder	Flange Washer	£6.47 £5.39
11	MO1134-6229-01 Available to backorder	Mulch Plug 95C	£39.42 £32.85
13	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
20	MO1134-6237-03 Available to backorder	Grey Mower Deck Arm. Left	£107.70 £89.75
21	MO1134-6237-04 Available to backorder	Grey Mower Deck Arm. Right	£107.70 £89.75
22	MO1134-6279-01 Available to backorder	Shoulder Bolt	£2.26 £1.88
23	MO387773535/1 Available to backorder	Lift Bracket-Grey	£21.12 £17.60
24	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
25	MO112293201/0 In stock	Nut	£1.69 £1.41
30	MO1134-6363-01 Available to backorder	Lift Spring Assy Inkl. pos 31 - 35	£46.46 £38.72
31	MO1134-5528-01 Available to backorder	Snap Hook	£4.22 £3.52
32	MO1134-6368-02 Available to backorder	Chain 7 links	£22.56 £18.80
33	MO1134-6368-03 Available to backorder	Chain 12 links	£20.62 £17.18
34	MO1134-5625-01 Available to backorder	Spring	£36.59 £30.49
35	MO1134-4623-01 Available to backorder	S-Hook	£4.37 £3.64
