DECK 95 C 4000 series - 2010-2011 - 13-2964-04 - Mountfield Front Mower Frame Diagram

Description

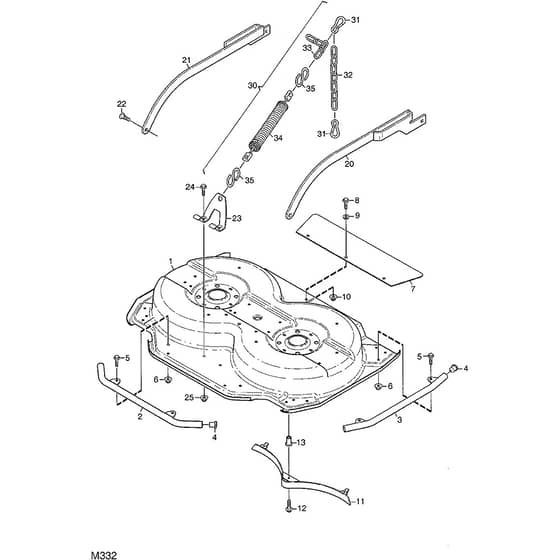

Mountfield DECK 95 C 4000 series Parts Diagram

Product Name - DECK 95 C 4000 series

Model Year - 2010-2011

Model Type -

Art.N - 13-2964-04

Engine Model -

	Part No.	Details
2	MO1134-6208-02 Available to backorder	Front Guard Tube-Black	£45.04 £37.53
7	MO1134-6281-02 Available to backorder	Rubber Guard	£19.14 £15.95
9	MO1134-4185-01 Available to backorder	Flange Washer	£6.46 £5.38
11	MO1134-6229-01 Available to backorder	Mulch Plug 95C	£39.42 £32.85
13	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
20	MO1134-6237-09 Available to backorder	Black Mower Deck Arm. Left	£122.46 £102.05
21	MO1134-6237-10 Available to backorder	Black Mower Deck Arm. Right	£107.70 £89.75
22	MO1134-6279-01 Available to backorder	Shoulder Bolt	£2.24 £1.87
23	MO387773535/1 Available to backorder	Lift Bracket-Black	£21.12 £17.60
24	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
25	MO112293201/0 In stock	Nut	£1.70 £1.42
30	MO387432002/0 Available to backorder	Lift Spring Assy Pos 31 - 35 incl.	£98.56 £82.13
31	MO1134-5528-01 Available to backorder	Snap Hook	£4.24 £3.53
32	MO1134-6368-02 Available to backorder	Chain 7 links	£20.62 £17.18
33	MO1134-6368-01 Available to backorder	Chain 4 links	£20.62 £17.18
35	MO1134-4623-01 Available to backorder	S-Hook	£4.37 £3.64
