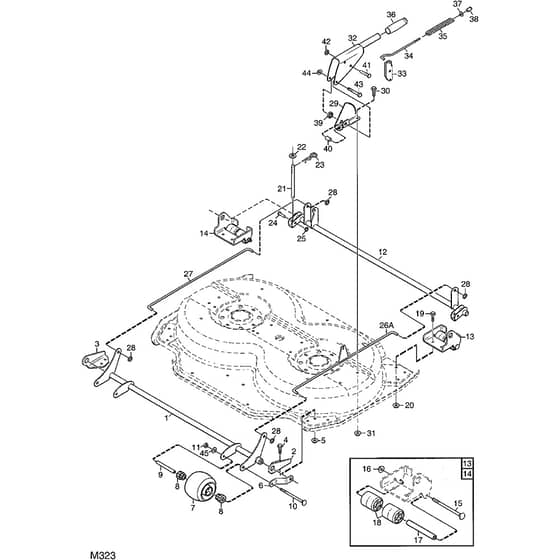

DECK 95 C 4000 series - 2010-2011 - 13-2964-04 - Mountfield Front Mower Controls Diagram

Description

Mountfield DECK 95 C 4000 series Parts Diagram

Product Name - DECK 95 C 4000 series

Model Year - 2010-2011

Model Type -

Art.N - 13-2964-04

Engine Model -

	Part No.	Details
6	MO1134-6278-02 Available to backorder	Guide-Black	£5.06 £4.22
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
11	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
12	MO1134-6197-02 Available to backorder	Rear Axle. Black	£82.36 £68.63
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket Pos 15 - 18 incl.	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket Pos 15 - 18 incl.	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 In stock	Roller	£52.08 £43.40
21	MO1134-6198-01 Available to backorder	Stud	£19.42 £16.18
22	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
23	MO9598-2001-02 In stock	Spring Pin	£4.78 £3.98
24	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
25	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
26	MO1134-6249-02 Available to backorder	Push Rod. Left (26A)	£42.22 £35.18
27	MO1134-6246-02 Available to backorder	Push Rod. Right	£23.58 £19.65
29	MO1137-0259-01 Available to backorder	Height Adjust Quadrant	£22.26 £18.55
30	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
31	MO112293201/0 In stock	Nut	£1.70 £1.42
32	MO1134-6244-02 Available to backorder	Height Adjust Lever-Black	£47.87 £39.89
33	MO1134-6254-01 Available to backorder	Catch Assy	£10.98 £9.15
34	MO1134-5444-01 Available to backorder	Push Rod	£14.00 £11.67
35	MO1134-5445-01 Available to backorder	Spring	£16.82 £14.02
36	MO1134-5503-01 Available to backorder	Handle	£26.56 £22.13
37	MO9699-0087-02 In stock	Washer	£2.22 £1.85
38	MO1134-3051-01 Available to backorder	Locking Knob	£9.17 £7.64
39	MO1134-6286-03 Available to backorder	Spacer	£1.84 £1.53
40	MO1134-1565-16 Available to backorder	Spacer	£7.02 £5.85
41	MO9646-0105-22 Available to backorder	Rivet	£2.94 £2.45
42	MO9672-0006-02 Available to backorder	Lock Washer	£1.97 £1.64
43	MO9997-0850-16 Available to backorder	Screw	£4.08 £3.40
45	MO112521350/0 In stock	Washer	£1.55 £1.29
