CSL 480 SV Li - 2019 - 295492063/19 - Castel Garden Rotary Mower Height Adjusting Diagram

Name: CSL 480 SV Li - 2019 - 295492063/19 - Castel Garden Rotary Mower Height Adjusting Diagram
SKU: csl_480_sv_li_295492063_19_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. csl_480_sv_li_295492063_19_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

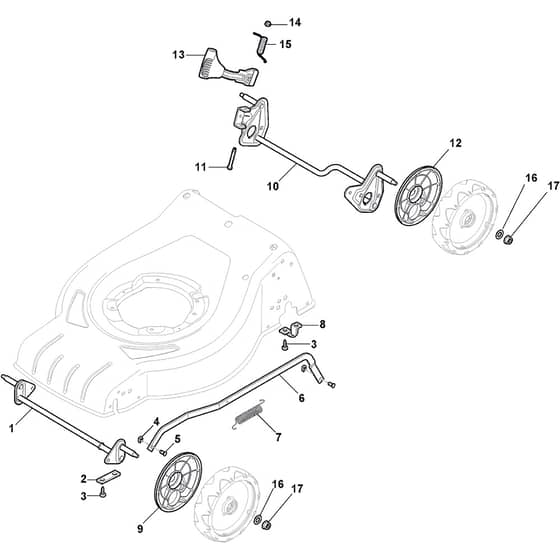

CSL 480 SV Li - 2019 - 295492063/19 - Castel Garden Rotary Mower Height Adjusting Diagram

Description

Castel Garden CSL 480 SV Li Parts Diagram

Product Name - CSL 480 SV Li

Model Year - 2019

Model Type - CSL 480 SV Li 60

Art.N - 295492063/19

Engine Model -

	Part No.	Details
1	MO381302821/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH054315	£27.04 £22.53
1	MO381302821/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH054316	£27.04 £22.53
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
3	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
4	MO112436050/0 In stock	Plate	£1.84 £1.53
5	MO122519820/0 Available to backorder	Pin	£2.22 £1.85
6	MO322869671/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH053915	£17.60 £14.67
6	MO322869671/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH053916	£17.23 £14.36
7	MO122446193/0 In stock	Spring	£4.78 £3.98
8	MO322545152/0 In stock	Plate	£1.55 £1.29
9	MO322600247/0 Available to backorder	Protection. Wheel	£4.50 £3.75
10	MO381302819/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH060267	£29.44 £24.53
10	MO381302819/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH060266	£30.98 £25.82
11	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
12	MO322600204/0 Available to backorder	Internal Wheel Protectection	£3.25 £2.71
13	MO381003356/1 In stock	Wheels Rear Adj. Lever	£5.76 £4.80
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
16	MO112521350/0 In stock	Washer	£1.55 £1.29
17	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
