Echo CSG-7410ES 36 Air cleaner, carburetor

Name: Echo CSG-7410ES 36 Air cleaner, carburetor
SKU: csg_7410es_36_air_cleaner_carburetor-group
Price: 0.17 GBP
Availability: InStock

Part No. csg_7410es_36_air_cleaner_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo CSG-7410ES 36 Air cleaner, carburetor

Description

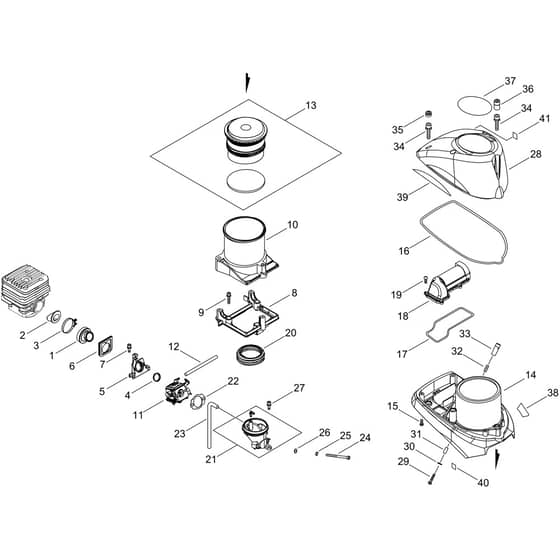

Echo CSG-7410ES 36 - Air cleaner, carburetor - Parts Diagram

	Part No.	Details
1	ECA202000280 Available to backorder	Intake Bellows	£28.69 £23.91
2	ECA239000100 Available to backorder	Intake Pipe	£3.25 £2.71
4	ECV360000120 Available to backorder	Sleeve	£2.06 £1.72
5	ECA200001111 Available to backorder	Intake Insulator	£8.09 £6.74
6	ECA203000070 Available to backorder	Seal	£3.25 £2.71
8	ECA163000050 Available to backorder	Cover Stay	£25.49 £21.24
9	ECV203000631 Available to backorder	5 Bolt	£1.01 £0.84
10	ECE616000100 Available to backorder	Filter Case	£19.14 £15.95
11	ECA021004950 Available to backorder	Diaphragm Carburetor	£146.64 £122.20
12	ECV470001640 Available to backorder	Pulse Pipe	£6.94 £5.78

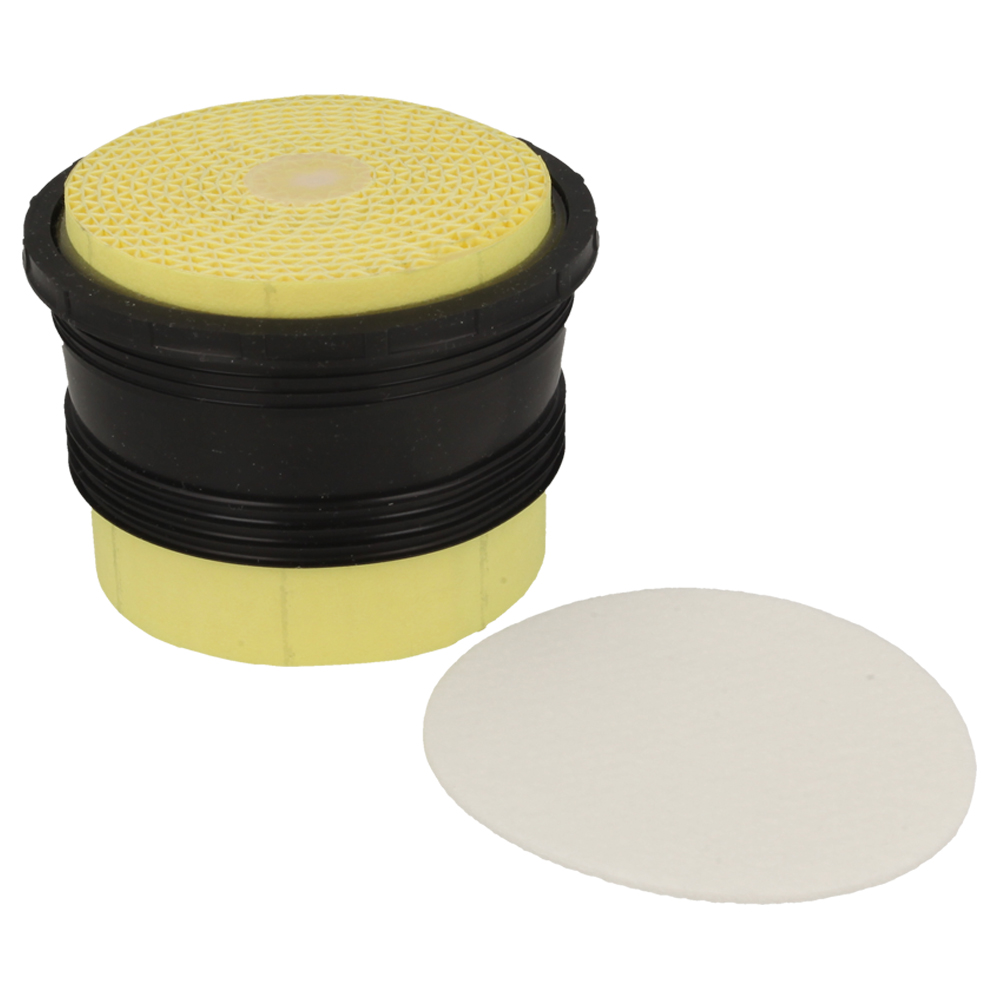

13	ECP021052670 Available to backorder	Air Filter Set	£38.20 £31.83
14	ECA232001990 Available to backorder	Cleaner Lid	£27.11 £22.59
16	ECA228000080 Available to backorder	Cleaner Seal	£9.62 £8.02
17	ECA228000070 Available to backorder	Cleaner Seal	£6.43 £5.36
18	ECA232001980 Available to backorder	Cleaner Lid	£6.43 £5.36
20	ECA203000060 Available to backorder	Seal	£8.09 £6.74
21	ECP100001411 Available to backorder	Elbow Asy Carburetor	£6.43 £5.36
23	ECV471002800 Available to backorder	Pipe	£8.09 £6.74
24	EC90010505060 Available to backorder	Bolt Hsh	£2.46 £2.05
25	EC90060500005 Available to backorder	Spring Washer	£0.49 £0.41
26	EC90060000005 Available to backorder	Washer	£0.20 £0.17
27	ECV203002230 Available to backorder	5 Bolt	£1.01 £0.84
28	ECA160003590 Available to backorder	Cylinder Cover	£28.69 £23.91
29	ECV253000850 Available to backorder	Screw Tapping	£1.76 £1.47
30	EC90060300005 Available to backorder	Washer	£0.31 £0.26
31	ECV353000740 Available to backorder	5 Collar	£1.01 £0.84
32	ECV450002280 Available to backorder	Compression Spring	£1.14 £0.95
33	ECA607000040 Available to backorder	Push Rod	£1.39 £1.16
34	ECV203002240 Available to backorder	5 Bolt	£1.94 £1.62
35	ECV141000160 Available to backorder	Plug Grommet	£2.00 £1.67
36	ECV141000170 Available to backorder	Plug Grommet	£6.77 £5.64
37	ECX505010770 Available to backorder	Caution Label	£11.21 £9.34
38	ECX524007160 Available to backorder	Label	£4.55 £3.79
39	ECX524007060 Available to backorder	Label	£6.43 £5.36
40	ECX510001050 Available to backorder	Switch Label	£1.14 £0.95
41	ECX505000001 Available to backorder	Caution Label	£2.36 £1.97
