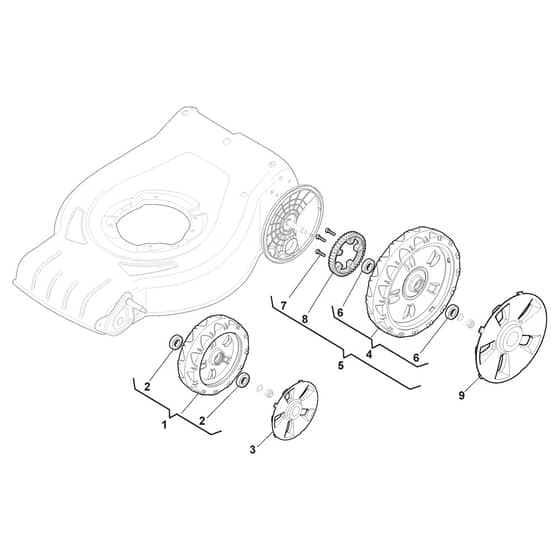

CSC 534 WSQ-H - 2020 - 295546833/19 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

Castel Garden CSC 534 WSQ-H Parts Diagram

Product Name - CSC 534 WSQ - H

Model Year - 2020

Model Type - CSC 534 WSQ

Art.N - 295546833/19

Engine Model -

	Part No.	Details
1	MO381007416/3 Available to backorder	Wheel Ø 200 From S.N 19JA2WBH009253	£17.60 £14.67
3	MO322110643/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
6	MO119216035/0 In stock	Bearing	£3.52 £2.93
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO381007472/2 In stock	Wheels Crown	£37.94 £31.62
9	MO322110644/0 Available to backorder	Avio Hub Cap D.280.300 [Grey]	£3.38 £2.82
