CSC 534 WSQ-H - 2020 - 295546833/19 - Castel Garden Rotary Mower Deck Diagram

Name: CSC 534 WSQ-H - 2020 - 295546833/19 - Castel Garden Rotary Mower Deck Diagram
SKU: csc_534_wsq_h_295546833_19_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. csc_534_wsq_h_295546833_19_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CSC 534 WSQ-H - 2020 - 295546833/19 - Castel Garden Rotary Mower Deck Diagram

Description

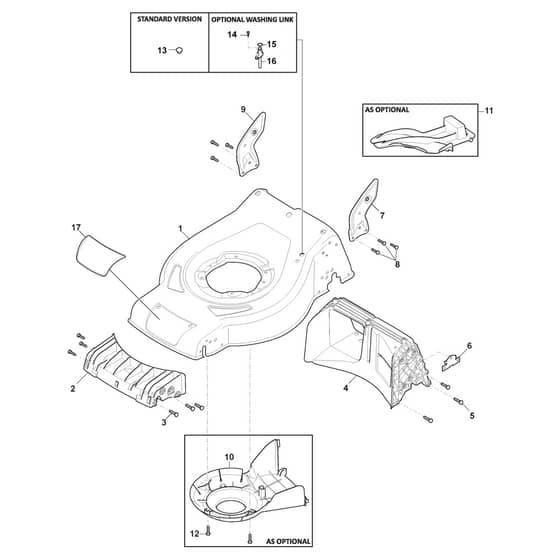

Castel Garden CSC 534 WSQ-H Parts Diagram

Product Name - CSC 534 WSQ - H

Model Year - 2020

Model Type - CSC 534 WSQ

Art.N - 295546833/19

Engine Model -

	Part No.	Details
1	MO381004941/1 Available to backorder	Red Deck Side Discharge From 01-9-2018	£190.03 £158.36
2	MO322108308/1 Available to backorder	Rear Conveyor Assy	£14.00 £11.67
4	MO322108392/0 Available to backorder	Rear Conveyor Assy From 01-9-2018	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005167/1 Available to backorder	Left Bracket	£8.18 £6.82
8	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
9	MO381005165/1 Available to backorder	Right Bracket	£7.74 £6.45
10	MO322060250/1 In stock	Belt Protection As Optional	£10.85 £9.04
11	MO322140244/1 In stock	Mulching Deflector As Optional	£16.34 £13.62
12	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
13	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
14	MO112728450/0 In stock	Screw	£1.55 £1.29
15	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
16	MO322034002/0 In stock	Washing Connection	£1.70 £1.42
17	MO322055606/0 Available to backorder	Front Deck Insert Cs53 [Black]	£2.95 £2.46
