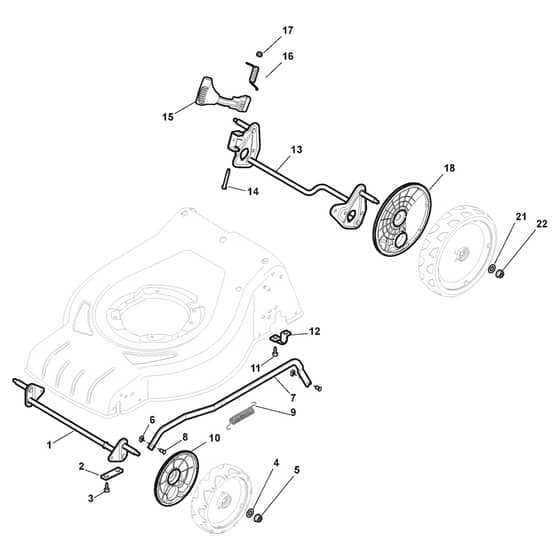

CSC 534 WSQ-H - 2012-2019 - 295546833/12 - Castel Garden Rotary Mower Height Adjusting Diagram

Description

Castel Garden CSC 534 WSQ-H Parts Diagram

Product Name - CSC 534 WSQ - H

Model Year - 2012-2019

Model Type - CSC 534 WSQ

Art.N - 295546833/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302853/1 In stock	Front Wheel Axle From S.N 20BA2WBH074119	£32.38 £26.98
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO322869679/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH070882	£22.46 £18.72
7	MO322869679/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH074119	£25.34 £21.12
8	MO122519823/0 In stock	Pin	£2.26 £1.88
9	MO122446193/0 Available to backorder	Spring	£4.61 £3.84
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.69 £1.41
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302849/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH051136	£50.68 £42.23
14	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
15	MO381003458/1 Available to backorder	Wheels Rear Adj. Lever with Standard Black Knob From S.N 20BA2WBH073719	£10.84 £9.03
15	MO381003459/1 Available to backorder	Wheels Rear Adj. Lever with STIGA Logo Black Knob From S.N 20BA2WBH073719	£13.44 £11.20
15	MO381003459/0 Available to backorder	Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718	£13.37 £11.14
16	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO322600240/0 Available to backorder	Protection. Wheel	£5.35 £4.46
21	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
