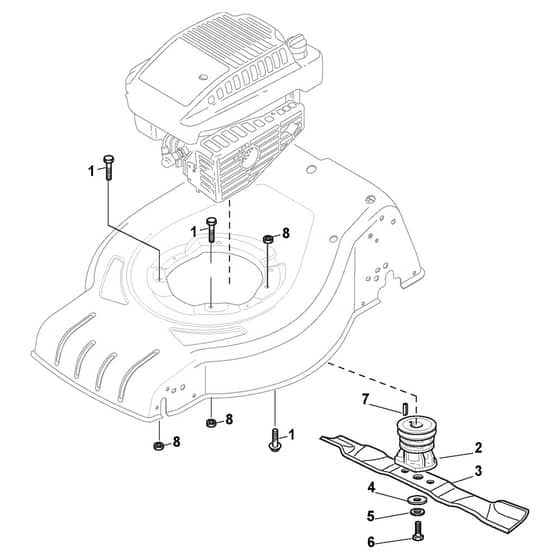

CSC 534 WSQ-H - 2012-2019 - 295546833/12 - Castel Garden Rotary Mower Blade Diagram

Description

Castel Garden CSC 534 WSQ-H Parts Diagram

Product Name - CSC 534 WSQ - H

Model Year - 2012-2019

Model Type - CSC 534 WSQ

Art.N - 295546833/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
2	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25	£9.23 £7.69
3	MO181004459/0 In stock	Blade	£16.16 £13.47
3	MO1111-9293-01 In stock	Mulching Blade (Stiga Pack) Stiga Packed into 181004459.0	£24.11 £20.09
4	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.82 £1.52
7	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.12 £1.77
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.69 £1.41
