CSC 534 WSQ-B - 2013 - 295546823/STT - Castel Garden Rotary Mower Ejection Guard Diagram

Description

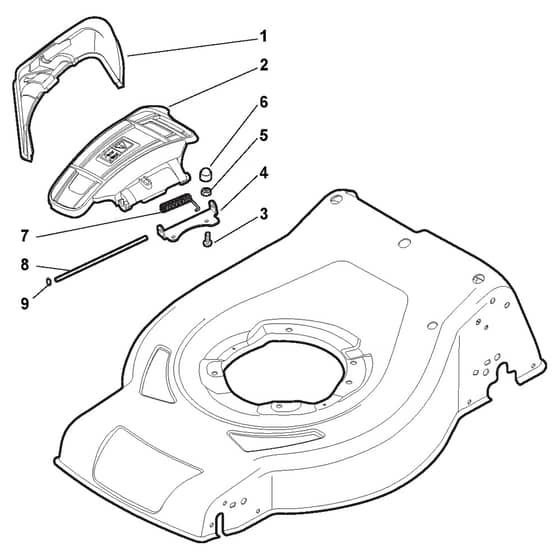

Castel Garden CSC 534 WSQ-B Parts Diagram

Product Name - CSC 534 WSQ-B

Model Year - 2013

Model Type - CSC 534 WSQ

Art.N - 295546823/STT

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322108295/1 Available to backorder	Side Ejection Conveyor To 31-August-2011	£10.14 £8.45
1	MO322108309/1 Available to backorder	Side Ejection Conveyor Black From 01-9-2014	£11.40 £9.50
2	MO381008161/1 Available to backorder	Ejection Guard From 01-9-2014	£11.53 £9.61
3	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
4	MO322806639/0 Available to backorder	Fulcrum Pin	£3.24 £2.70
5	MO112154510/0 In stock	Nut	£1.55 £1.29
6	MO118203853/0 Available to backorder	Cap	£2.68 £2.23
7	MO122450456/1 Available to backorder	Spring	£3.24 £2.70
8	MO122517869/1 Available to backorder	Pin From 01-9-2014	£3.79 £3.16
8	MO122517869/0 Available to backorder	Pin To 31-8-2014	£4.78 £3.98
9	MO112604896/0 Available to backorder	Starlock Washer D.6	£1.55 £1.29
