CSC 534 WSQ-B - 2012-2014 - 295546823/12 - Castel Garden Rotary Mower Blade Diagram

Name: CSC 534 WSQ-B - 2012-2014 - 295546823/12 - Castel Garden Rotary Mower Blade Diagram
SKU: csc_534_wsq_b_295546823_12_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. csc_534_wsq_b_295546823_12_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CSC 534 WSQ-B - 2012-2014 - 295546823/12 - Castel Garden Rotary Mower Blade Diagram

Description

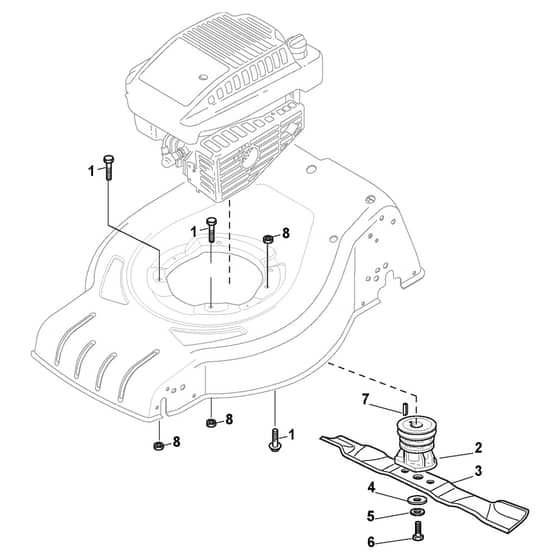

Castel Garden CSC 534 WSQ-B Parts Diagram

Product Name - CSC 534 WSQ-B

Model Year - 2012-2014

Model Type - CSC 534 WSQ

Art.N - 295546823/12

Engine Model -

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2	£9.30 £7.75
3	MO181004459/0 In stock	Blade	£14.56 £12.13
3	MO1111-9293-01 In stock	Mulching Blade (Stiga Pack) Stiga Packed into 181004459.0	£24.11 £20.09
4	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
5	MO112523080/0 In stock	Washer	£1.55 £1.29
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Key	£1.55 £1.29
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.70 £1.42
