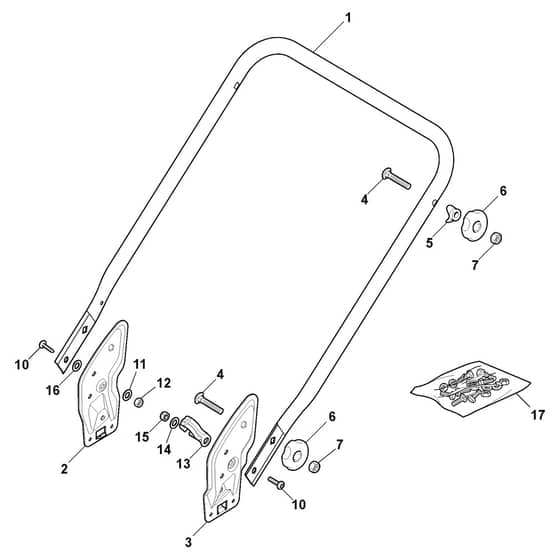

CSC 534-B - 2011-2014 - 295541023/12 - Castel Garden Rotary Mower Handle Lower Part Diagram

Name: CSC 534-B - 2011-2014 - 295541023/12 - Castel Garden Rotary Mower Handle Lower Part Diagram
SKU: csc_534_b_295541023_12_handle_lower_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CSC 534-B - 2011-2014 - 295541023/12 - Castel Garden Rotary Mower Handle Lower Part Diagram

Description

Castel Garden CSC 534-B Parts Diagram

Product Name - CSC 534 - B

Model Year - 2011-2014

Model Type - CSC 534

Art.N - 295541023/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006889/0 Available to backorder	Handle Lower Part To 31-August-2010	£29.56 £24.63
1	MO381007043/0 Available to backorder	Handle. Lower Part Black From 01-9-2010	£24.78 £20.65
2	MO381005133/0 Available to backorder	Right Bracket From 01-9-2010	£6.76 £5.63
3	MO381005127/0 Available to backorder	Left Bracket To 31-8-2010	£12.32 £10.27
3	MO381005135/0 Available to backorder	Left Bracket From 01-9-2010	£6.76 £5.63
4	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
5	MO122680006/1 In stock	Washer	£1.75 £1.46
6	MO122399900/0 In stock	Black Knob	£1.55 £1.29
7	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO112760605/0 In stock	Screw	£3.38 £2.82
11	MO112521350/0 Available to backorder	Washer To 31-8-2010	£1.55 £1.29
11	MO125038002/1 In stock	Bushing From 01-9-2010	£1.55 £1.29
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO322192156/0 Available to backorder	Clip	£1.97 £1.64
14	MO112523040/0 In stock	Washer	£1.49 £1.24
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
17	MO381008686/0 Available to backorder	Screw Assembly Kit	£10.84 £9.03
