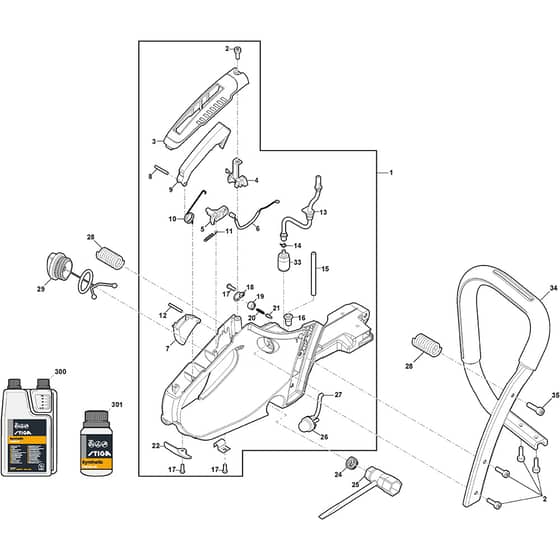

CS 750 - 2022-2025 - 240461802/ST1 - Stiga Chainsaw Housing Diagram

Description

Stiga CS 750 Parts Diagram

Product Name - CS 750

Model Year - 2022-2025

Model Type - SP 466

Art.N - 240461802/ST1

Engine Model -

	Part No.	Details
1	MO118804922/1 Available to backorder	Handle Assy Yellow	£94.32 £78.60
2	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
3	MO118804241/0 Available to backorder	Handle Cover. Yellow Yellow	£10.40 £8.67
4	MO118804238/0 Available to backorder	Bracket	£1.20 £1.00
5	MO118804237/0 Available to backorder	Bracket	£1.55 £1.29
6	MO118804262/0 Available to backorder	Throttle Cable	£5.92 £4.93
7	MO118804220/0 Available to backorder	Throttle Lever Black	£1.33 £1.11
9	MO118804240/0 Available to backorder	Safety Lever Black	£1.84 £1.53
10	MO118804239/0 Available to backorder	Spring	£1.39 £1.16
11	MO118804236/0 Available to backorder	Spring	£1.70 £1.42
12	MO118804406/0 Available to backorder	Dowel Pin	£1.26 £1.05
13	MO118804235/0 In stock	Fuel Tube Assy	£7.02 £5.85
14	MO118804234/0 Available to backorder	Clip	£13.31 £11.09
15	MO118804353/1 Available to backorder	Fuel Tube	£1.39 £1.16
16	MO118804229/0 Available to backorder	Grommet	£1.97 £1.64
17	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
18	MO118805219/0 Available to backorder	Metal Cover Plate	£1.55 £1.29
19	MO118804228/0 Available to backorder	Valve Cap	£1.55 £1.29
20	MO118804881/0 Available to backorder	Spring Vent Valve Fuel Tank	£1.33 £1.11
21	MO118804736/0 Available to backorder	Breather Valve	£2.53 £2.11
25	MO118804221/0 Available to backorder	Spark Plug Wrench	£3.79 £3.16
26	MO118804913/0 Available to backorder	Primer	£5.92 £4.93
27	MO118805306/0 Available to backorder	Transparent Tube	£1.55 £1.29
28	MO118804925/0 Available to backorder	Spring	£4.64 £3.87
29	MO118804307/1 Available to backorder	Tank Cap Assy	£5.06 £4.22
33	MO118804911/0 Available to backorder	Fuel Filter	£19.14 £15.95
34	MO118804217/0 Available to backorder	Front Handle	£21.54 £17.95
35	MO2132180 Available to backorder	Screw	£1.33 £1.11
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.48 £12.07
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.01 £2.51
