CS 545 (16") - 2022-2026 - 240421602/ST1 - Stiga Chainsaw Housing Diagram

Description

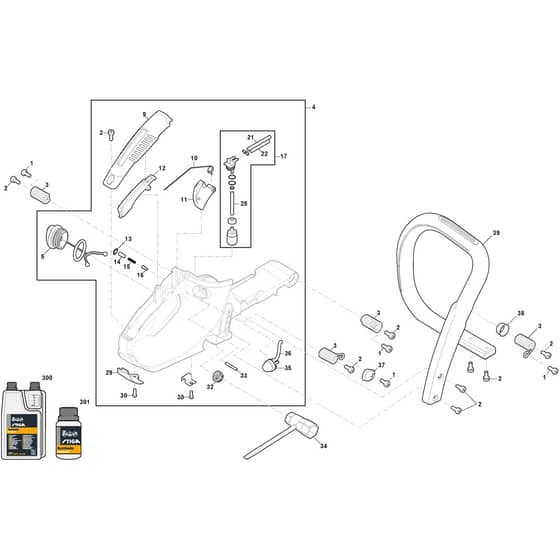

Stiga CS 545 (16") Parts Diagram

Product Name - CS 545 (16")

Model Year - 2022-2026

Model Type - SP 426

Art.N - 240421602/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
2	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
3	MO118804328/0 Available to backorder	Spring	£4.50 £3.75
4	MO118804914/0 Available to backorder	Handle Assy Yellow Yellow	£92.90 £77.42
5	MO118804307/1 Available to backorder	Tank Cap Assy	£5.06 £4.22
9	MO118804332/0 Available to backorder	Handle Cover. Yellow Yellow	£10.56 £8.80
10	MO118804330/0 Available to backorder	Spring	£1.69 £1.41
11	MO118804329/0 Available to backorder	Throttle Lever Black	£1.82 £1.52
12	MO118804331/0 Available to backorder	Safety Lever Black	£1.97 £1.64
13	MO118805697/0 Available to backorder	Conical Lock Washer Ø4	£1.92 £1.60
14	MO118804327/1 Available to backorder	Valve Cap	£1.33 £1.11
15	MO118804881/0 Available to backorder	Spring Vent Valve Fuel Tank	£1.33 £1.11
16	MO118804736/0 Available to backorder	Breather Valve	£2.53 £2.11
17	MO118804911/0 Available to backorder	Fuel Tube Assy	£19.14 £15.95
21	MO118804326/0 Available to backorder	Pipe.Fuel Return	£4.93 £4.11
25	MO118804325/0 Available to backorder	Fuel Pipe	£5.06 £4.22
29	MO323059046/0 Available to backorder	Plate	£1.66 £1.38
30	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
33	MO118801179/0 Available to backorder	Pin	£1.69 £1.41
34	MO118804221/0 Available to backorder	Spark Plug Wrench	£3.79 £3.16
35	MO118804913/0 Available to backorder	Primer	£5.92 £4.93
37	MO118804912/0 Available to backorder	Anti-Vibration Cover	£5.35 £4.46
38	MO118804322/0 Available to backorder	Bushing	£2.12 £1.77
39	MO323300022/0 Available to backorder	Front Handle	£21.83 £18.19
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.50 £12.08
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.00 £2.50
