CS 540 - 2022-2025 - 240381402/ST1 - Stiga Chainsaw Starter Diagram

Name: CS 540 - 2022-2025 - 240381402/ST1 - Stiga Chainsaw Starter Diagram
SKU: cs_540_240381402_st1_starter-group
Price: 0.95 GBP
Availability: InStock

Part No. cs_540_240381402_st1_starter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

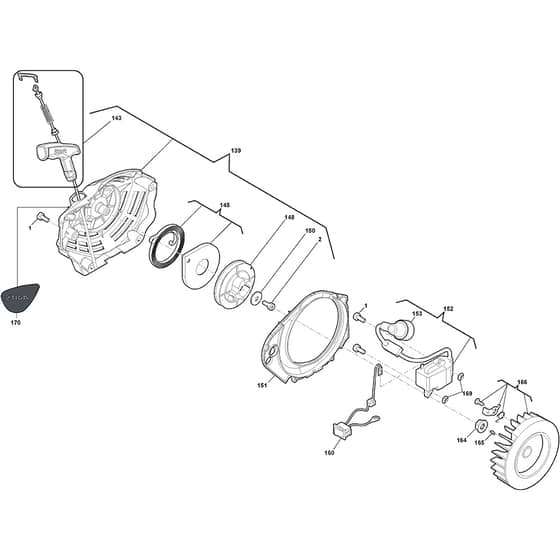

CS 540 - 2022-2025 - 240381402/ST1 - Stiga Chainsaw Starter Diagram

Description

Stiga CS 540 Parts Diagram

Product Name - CS 540

Model Year - 2022-2025

Model Type - SP 386

Art.N - 240381402/ST1

Engine Model -

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
2	MO112731601/0 Available to backorder	Screw	£1.97 £1.64

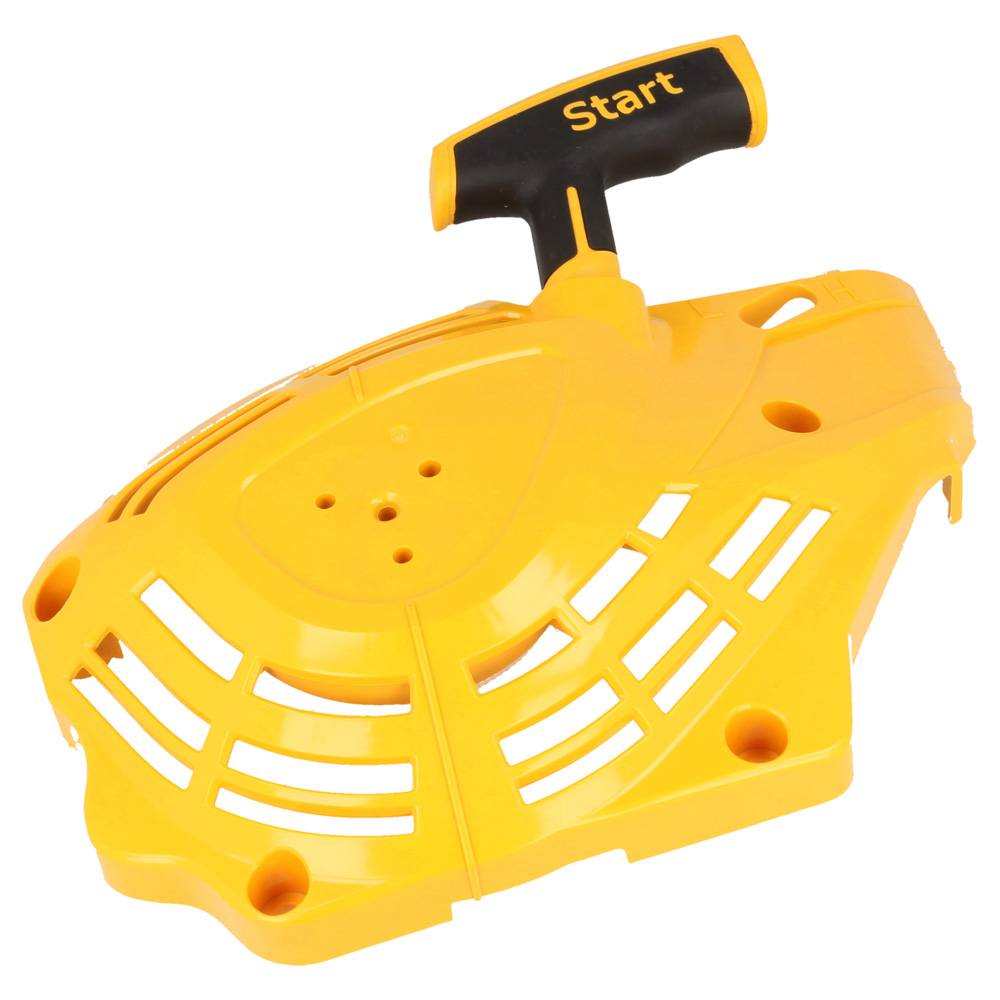

139	MO118804335/2 Available to backorder	Starter Assy. Yellow Yellow	£36.59 £30.49
143	MO118805699/0 Available to backorder	Starter Handle. Yellow Yellow - improved part from S.N 22JC1CHA003601	£21.86 £18.22
145	MO118804385/0 Available to backorder	Starter Spring Assy	£4.64 £3.87
148	MO118804243/1 Available to backorder	Starter Pulley	£3.25 £2.71
150	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
151	MO118804333/0 Available to backorder	Air Guide	£4.78 £3.98
152	MO118804370/0 Available to backorder	Ignition Assy	£37.73 £31.44
153	MO118804522/0 Available to backorder	Spark Plug Cover Assy	£10.72 £8.93
160	MO118804367/0 Available to backorder	Switch	£5.22 £4.35
164	MO123120008/0 Available to backorder	Nut	£1.70 £1.42
165	MO118800959/0 Available to backorder	Key	£1.55 £1.29
166	MO118804356/1 Available to backorder	Flywheel	£30.98 £25.82
169	MO118804369/0 Available to backorder	Washer	£1.14 £0.95
170	MO114369742/0 Available to backorder	Recoil Cover Label "Stiga"	£2.11 £1.76
