Description

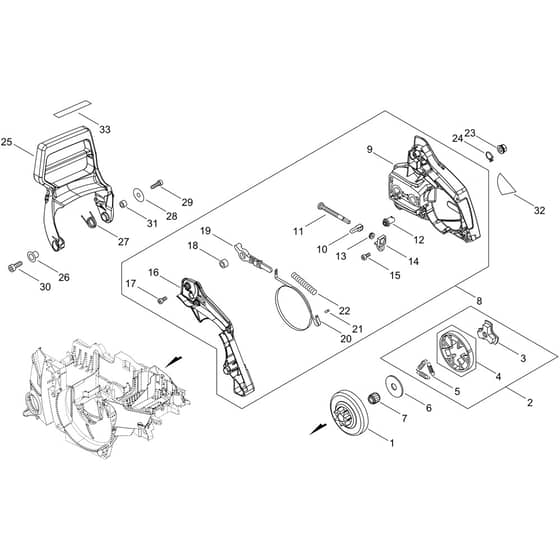

Echo CS-4920 - Chain Brake - Parts Diagram

	Part No.	Details
1	ECA556000481 Available to backorder	Clutch Drum	£42.43 £35.36
2	ECA056000840 Available to backorder	Clutch Asy	£56.57 £47.14
3	ECA552000470 Available to backorder	Clutch Hub	£13.57 £11.31
4	ECP021007051 Available to backorder	Clutch Shoe Set	£35.94 £29.95
5	ECV451000500 Available to backorder	Tension Spring	£1.57 £1.31
6	EC17501939430 Available to backorder	Clutch Plate	£4.18 £3.48
7	ECV555000150 Available to backorder	Needle 10 Bearing	£7.37 £6.14

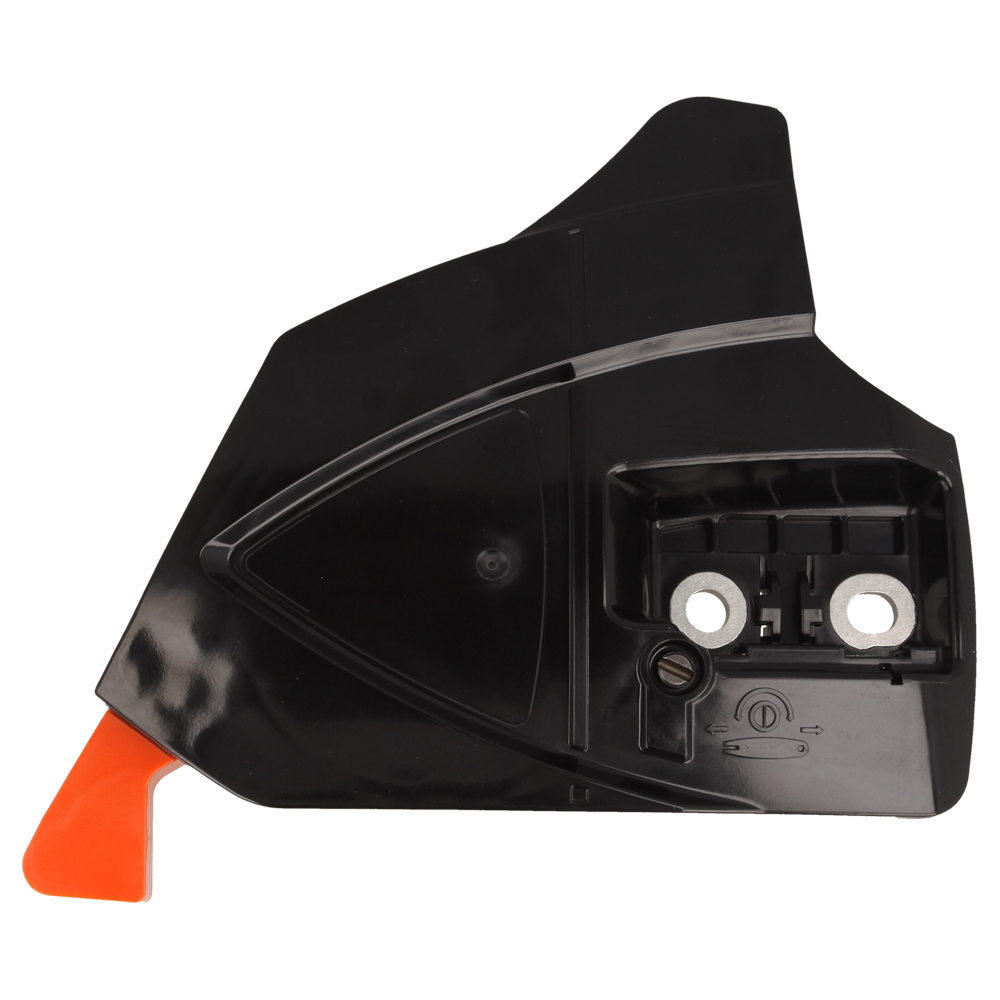

8	ECP100004653 Available to backorder	Sprocket Asy Guard	£75.48 £62.90
9	ECC300001162 Available to backorder	Sprocket Guard	£43.63 £36.36
10	ECC309000160 Available to backorder	Chain Tensioner	£5.00 £4.17
11	ECV203000110 Available to backorder	5 Bolt	£5.94 £4.95
12	ECV651001040 Available to backorder	Bevel Gear	£16.16 £13.47
13	ECV651001050 Available to backorder	Bevel Gear	£7.60 £6.33
14	ECV355000140 In stock	8 Collar	£1.57 £1.31
16	ECC345000651 Available to backorder	Brake Cover	£8.09 £6.74
19	ECC334000100 Available to backorder	Brake Connector	£13.14 £10.95

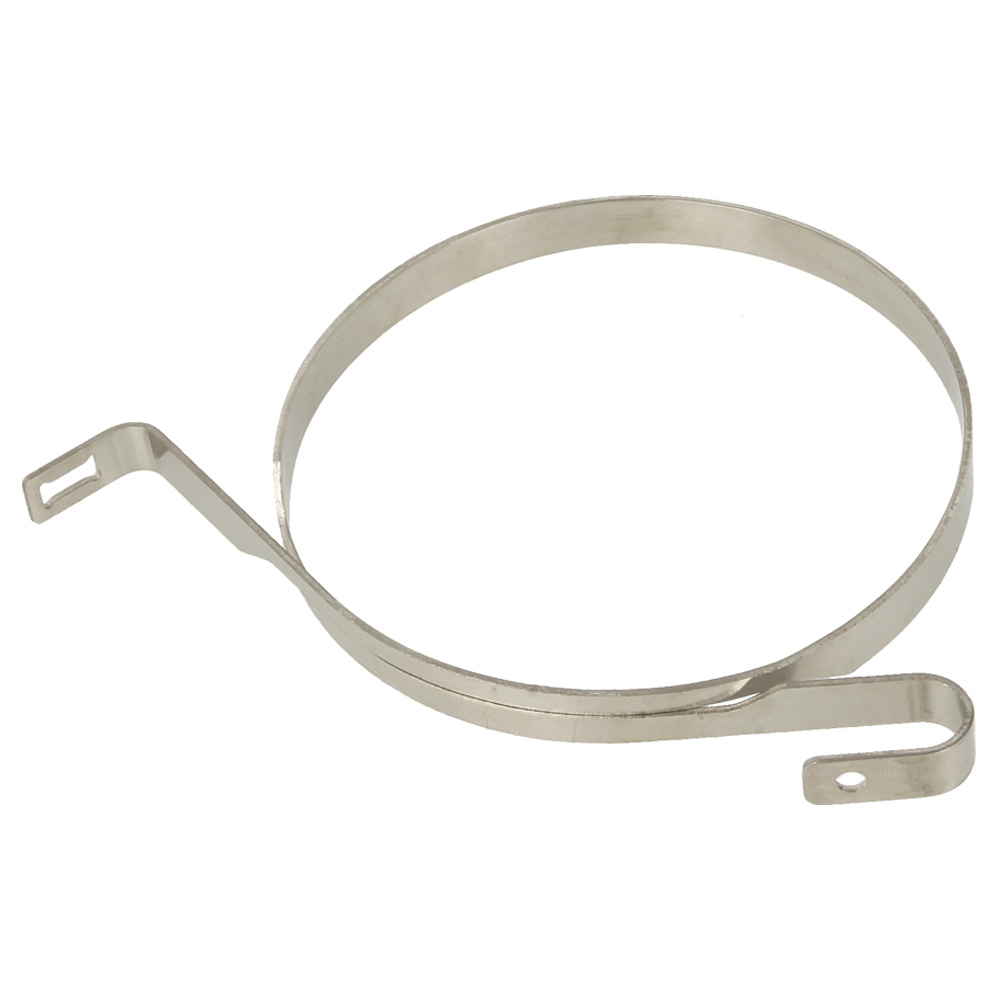

20	ECC328000110 Available to backorder	Brake Band	£12.43 £10.36
21	EC90033030120 Available to backorder	Roller	£0.53 £0.44
22	ECV450000070 Available to backorder	Compression Spring	£2.46 £2.05
23	ECV265000550 Available to backorder	8 Nut	£2.65 £2.21
24	ECC649000420 Available to backorder	Hook	£2.92 £2.43

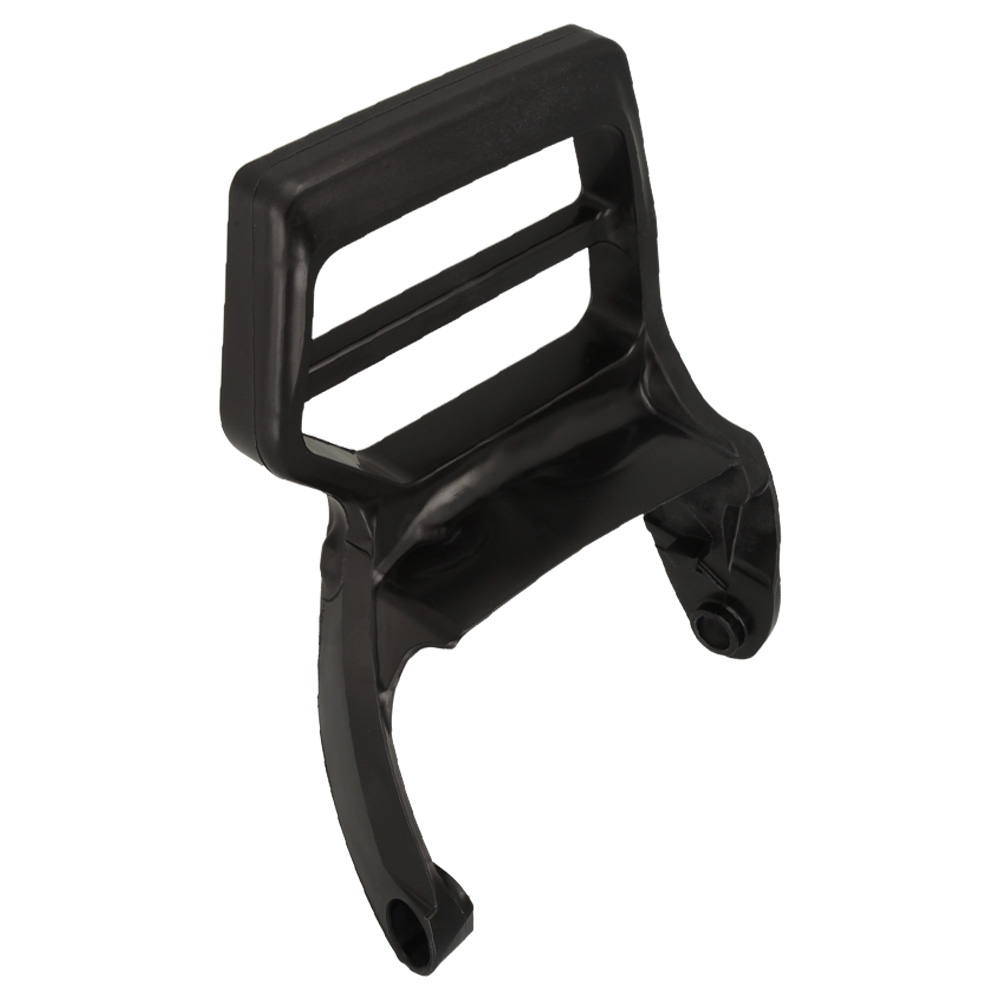

25	ECC320000531 Available to backorder	Brake Lever	£19.92 £16.60
26	ECV356000440 Available to backorder	10 Collar	£1.51 £1.26
27	ECV452001281 Available to backorder	Torsion Spring	£2.26 £1.88
28	EC17721403930 Available to backorder	Washer	£1.20 £1.00
29	ECV804000010 Available to backorder	Torx 4 Bolt	£1.01 £0.84
30	ECV805000010 Available to backorder	Torx 5 Bolt	£1.01 £0.84
31	EC43311635430 Available to backorder	Spacer 8	£2.65 £2.21
32	ECX502001050 Available to backorder	Echo Label	£2.26 £1.88
33	ECX505011830 Available to backorder	Caution Label	£3.74 £3.12
