CS 480 Raser - 2015-2021 - 295490663/KS - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Description

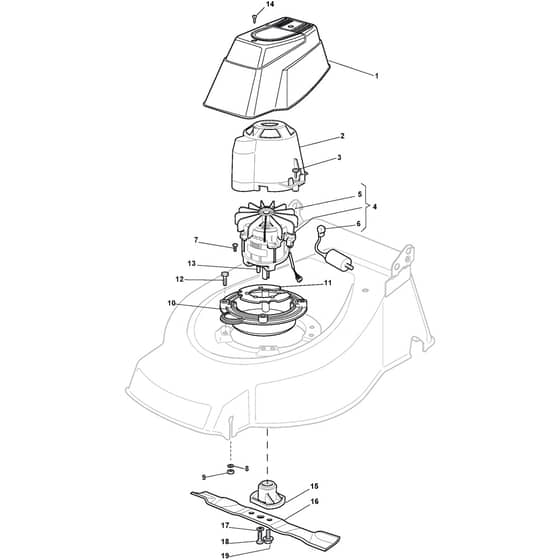

Castel Garden CS 480 Raser Parts Diagram

Product Name - CS 480 *Raser

Model Year - 2015-2021

Model Type - CS 480

Art.N - 295490663/KS

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055045/1 Available to backorder	Cover. Black	£10.20 £8.50
2	MO322785210/1 Available to backorder	Support. Cover From 01-9-2013	£6.76 £5.63
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
4	MO118563720/0 Available to backorder	Electric Motor 1800W 230V (1800W) From 01-9-2008	£197.09 £164.24
5	MO118740054/0 Available to backorder	Fan Motor Atb ATB	£9.14 £7.62
5	MO118740051/0 Available to backorder	Fan RST To 31-8-2007	£4.97 £4.14
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
8	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange From 01-9-2007	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen From 01-9-2007	£3.24 £2.70
19	MO381004352/1 In stock	Screw From 01-9-2010	£4.08 £3.40
