CS 480 Li - 2016-2019 - 295491003/16 - Castel Garden Rotary Mower Handle Diagram

Name: CS 480 Li - 2016-2019 - 295491003/16 - Castel Garden Rotary Mower Handle Diagram
SKU: cs_480_li_295491003_16_handle-group
Price: 1.16 GBP
Availability: InStock

Part No. cs_480_li_295491003_16_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CS 480 Li - 2016-2019 - 295491003/16 - Castel Garden Rotary Mower Handle Diagram

Description

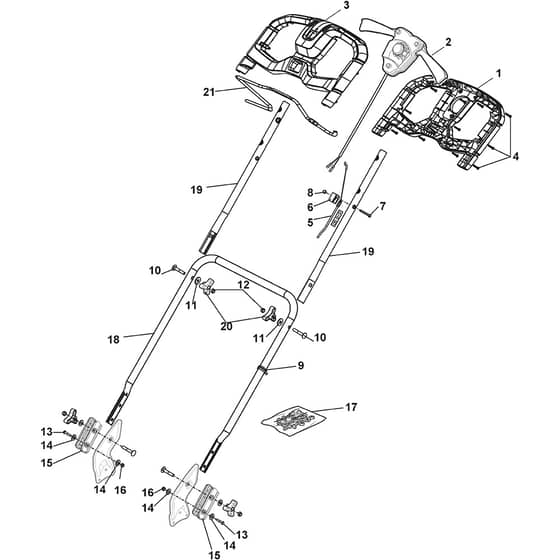

Castel Garden CS 480 Li Parts Diagram

Product Name - CS 480 Li

Model Year - 2016-2019

Model Type - CS 480 Li 80

Art.N - 295491003/16

Engine Model -

	Part No.	Details
1	MO322291079/0 Available to backorder	Lower Half Handgrip Switch	£18.59 £15.49
2	MO381600558/0 In stock	Dead Hand Switch - Battery	£42.17 £35.14
3	MO322291078/0 Available to backorder	Upper Half Handgrip Switch Black	£18.26 £15.22
4	MO112728711/0 Available to backorder	Screw	£1.39 £1.16
5	MO381030085/0 In stock	Cable Rear Drive Used only on models with Traction	£18.94 £15.78
6	MO322551685/0 In stock	Cable Holder Used only on models with Traction	£7.52 £6.27
7	MO112727783/0 Available to backorder	Screw Used only on models with Traction	£1.70 £1.42
8	MO112154510/0 In stock	Nut Used only on models with Traction	£1.55 £1.29
9	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
10	MO112819121/0 In stock	Screw	£1.97 £1.64
11	MO122671651/0 In stock	Washer	£1.97 £1.64
12	MO112293200/0 In stock	Nut	£1.55 £1.29
13	MO112793701/0 In stock	Screw	£1.55 £1.29
14	MO112521350/0 In stock	Washer	£1.55 £1.29
15	MO322551582/0 Available to backorder	Inside Plaque Insulation	£1.97 £1.64
16	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO381008698/0 Available to backorder	Outfit. Screws Black	£10.50 £8.75
18	MO381006735/0 Available to backorder	Handle. Lower Part Black Black	£17.33 £14.44
19	MO381007584/0 Available to backorder	Handle. Upper Part Black	£16.34 £13.62
20	MO122399900/0 In stock	Black Knob Black	£1.55 £1.29
21	MO181003439/0 Available to backorder	Drive Control Lever	£25.98 £21.65
