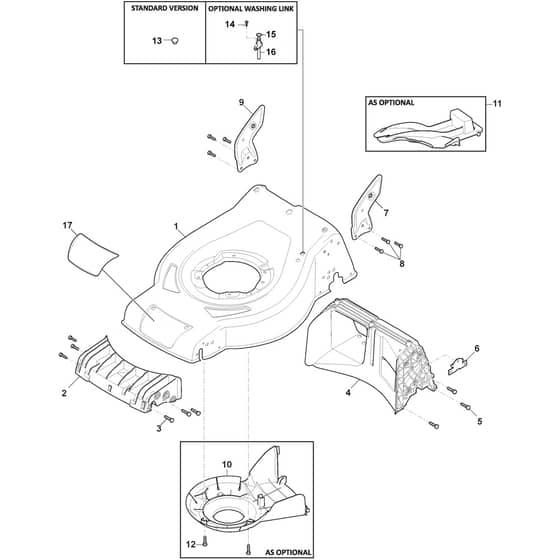

CS 480 - 2020-2021 - 295490763/PAP - Castel Garden Rotary Mower Deck Diagram

Name: CS 480 - 2020-2021 - 295490763/PAP - Castel Garden Rotary Mower Deck Diagram
SKU: cs_480_295490763_pap_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CS 480 - 2020-2021 - 295490763/PAP - Castel Garden Rotary Mower Deck Diagram

Description

Castel Garden CS 480 Parts Diagram

Product Name - CS 480

Model Year - 2020-2021

Model Type - CS 480

Art.N - 295490763/PAP

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004938/0 Available to backorder	Red Deck To replace the old chassis is necessary to order also pos.17	£131.62 £109.68
2	MO322108301/2 Available to backorder	Front Conveyor Assy	£14.86 £12.38
4	MO322108392/0 Available to backorder	Rear Conveyor Assy From 01-9-2018	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005139/0 Available to backorder	Left Bracket	£6.62 £5.52
8	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
9	MO381005137/0 Available to backorder	Right Bracket	£6.34 £5.28
10	MO322060242/2 In stock	Belt Protection As Optional From 01-9-2018	£11.53 £9.61
11	MO322140239/1 In stock	Mulching Deflector As Optional	£11.40 £9.50
12	MO112728903/0 In stock	Screw As Optional	£1.40 £1.17
13	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
14	MO112728450/0 In stock	Screw	£1.55 £1.29
15	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
16	MO322034002/0 Available to backorder	Washing Connection	£1.69 £1.41
17	MO322055605/0 Available to backorder	Insert Black - without Mask	£3.10 £2.58
