CS 434 S-B - 2011-2015 - 295442023/11 - Castel Garden Rotary Mower Height Adjusting Diagram

Name: CS 434 S-B - 2011-2015 - 295442023/11 - Castel Garden Rotary Mower Height Adjusting Diagram
SKU: cs_434_s_b_295442023_11_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CS 434 S-B - 2011-2015 - 295442023/11 - Castel Garden Rotary Mower Height Adjusting Diagram

Description

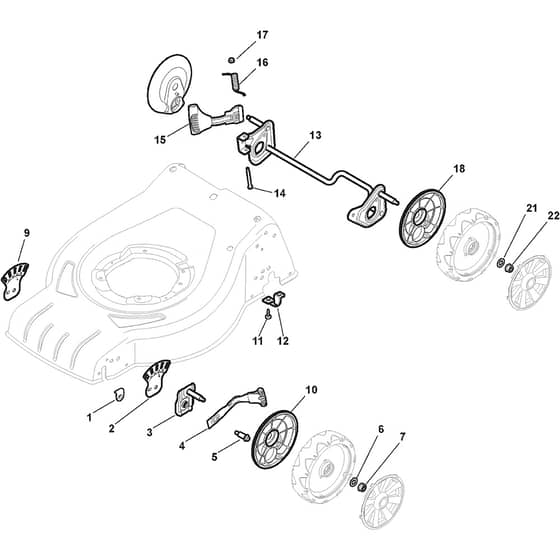

Castel Garden CS 434 S-B Parts Diagram

Product Name - CS 434 S - B

Model Year - 2011-2015

Model Type - CS 434 S

Art.N - 295442023/11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322545189/0 Available to backorder	Plate	£1.55 £1.29
2	MO322735611/0 Available to backorder	Sector. Height Adjustment From S.N 20BA2WBH058856	£2.68 £2.23
2	MO322735597/1 Available to backorder	Sector. Height Adjustment From 01-9-2011 To S.N 20BA2WBH058855	£2.68 £2.23
3	MO381005265/0 Available to backorder	Wheel Support From S.N 20BA2WBH056550	£11.40 £9.50
3	MO381005159/0 Available to backorder	Wheel Support From S.N SK6614968 To S.N 19GA2WBH002978	£10.16 £8.47
3	MO381005253/0 Available to backorder	Wheel Support From S.N 20AA2WBH020538 To S.N 20BA2WBH056549	£11.12 £9.27
4	MO381003354/0 Available to backorder	Lever. Height Adjustment with Standard Black Knob	£6.90 £5.75
5	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
9	MO322735595/1 Available to backorder	Sector. Height Adjustment From 01-9-2011 To S.N 20BA2WBH064329	£2.68 £2.23
9	MO322735609/0 Available to backorder	Sector. Height Adjustment From S.N 20BA2WBH064330	£2.68 £2.23
10	MO322600247/0 Available to backorder	Protection. Wheel As Optional	£8.18 £6.82
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302819/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH060267	£29.42 £24.52
13	MO381302819/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH060266	£30.97 £25.81
14	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
15	MO381003356/1 Available to backorder	Wheels Rear Adj. Lever From S.N 20BA2WBH076281	£5.76 £4.80
16	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO322600204/0 Available to backorder	Internal Wheel Protectection	£3.24 £2.70
21	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
