Echo CS-4310SX Chain Brake

Name: Echo CS-4310SX Chain Brake
SKU: cs_4310sx_chain_brake-group
Price: 0.41 GBP
Availability: InStock

Part No. cs_4310sx_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Echo CS-4310SX - Chain Brake - Parts Diagram

	Part No.	Details
1	ECA056000860 Available to backorder	Clutch Asy	£56.57 £47.14
2	ECP100008460 Available to backorder	Clutch Shoe Set	£39.85 £33.21
3	ECA552000490 Available to backorder	Clutch Hub	£15.29 £12.74
4	ECA566000340 Available to backorder	Clutch Spring	£5.17 £4.31
5	ECA551000200 Available to backorder	Clutch Plate	£4.39 £3.66
6	ECV555000150 Available to backorder	Needle Bearing	£7.37 £6.14

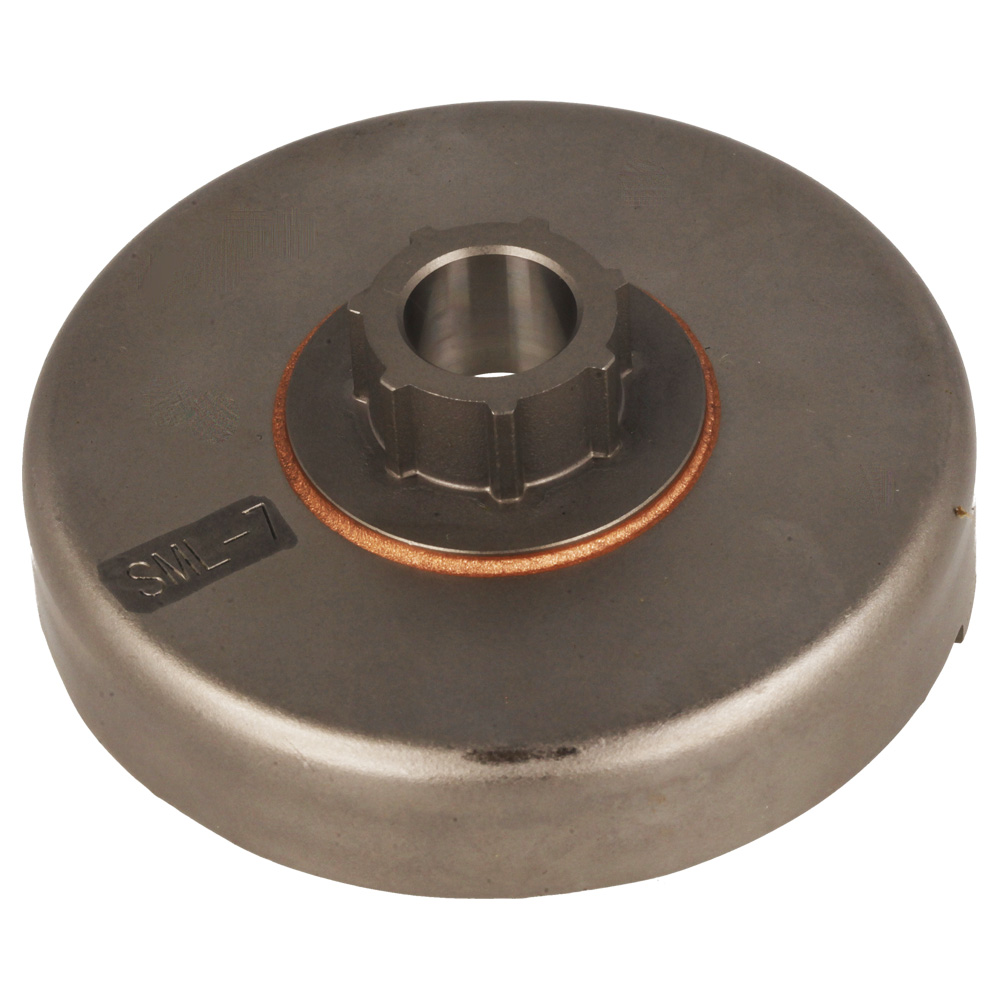

7	ECA556001860 Available to backorder	Clutch Drum	£44.14 £36.78
8	EC17511412530 Available to backorder	Rim .325 Sprocket	£12.04 £10.03
9	ECV307000520 Available to backorder	Circular 10 Washer	£2.26 £1.88
10	ECV583000440 Available to backorder	Ring	£0.83 £0.69
11	ECV356000940 Available to backorder	10 Collar	£1.14 £0.95

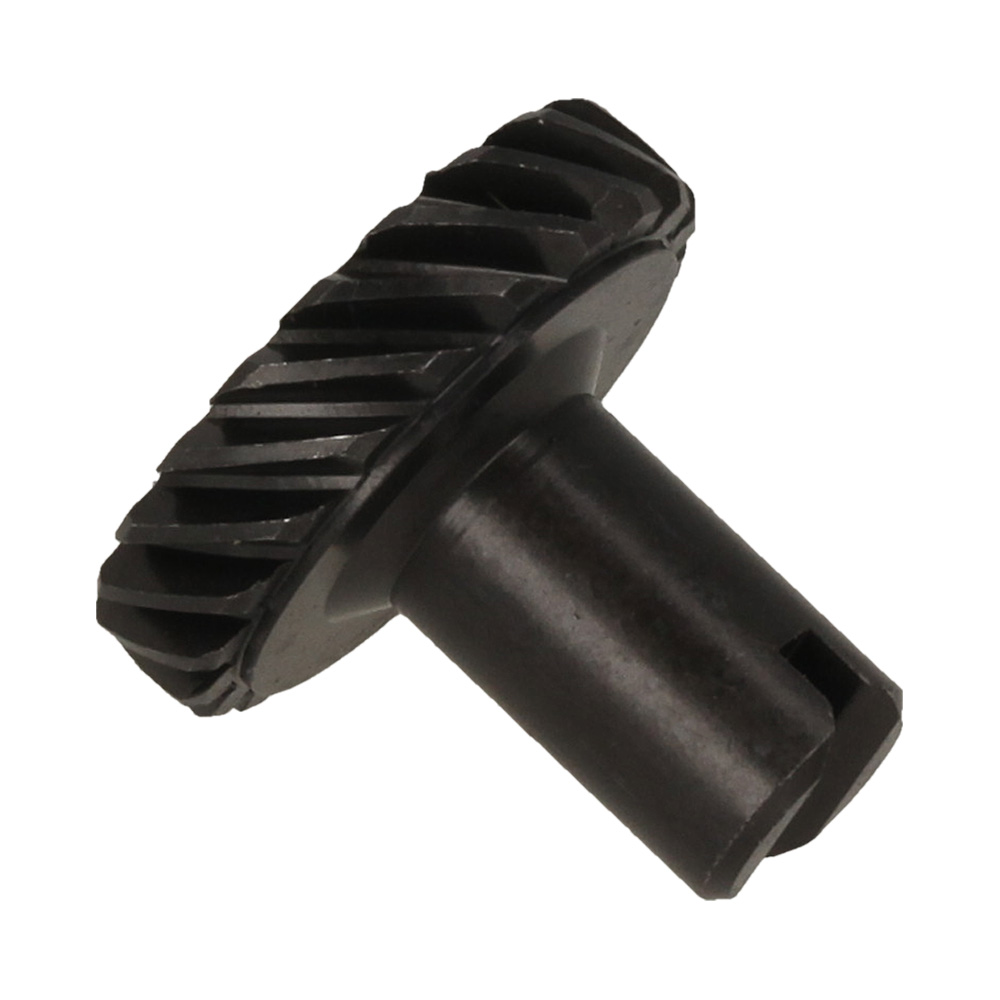

12	ECV652000271 Available to backorder	Worm Gear	£8.96 £7.47
13	ECV203002460 Available to backorder	5 Bolt	£6.11 £5.09
14	ECC309000200 Available to backorder	Chain Tensioner	£5.17 £4.31
15	ECC316000100 Available to backorder	Shaft Guide	£1.45 £1.21
16	ECV355000970 Available to backorder	8 Collar	£3.74 £3.12

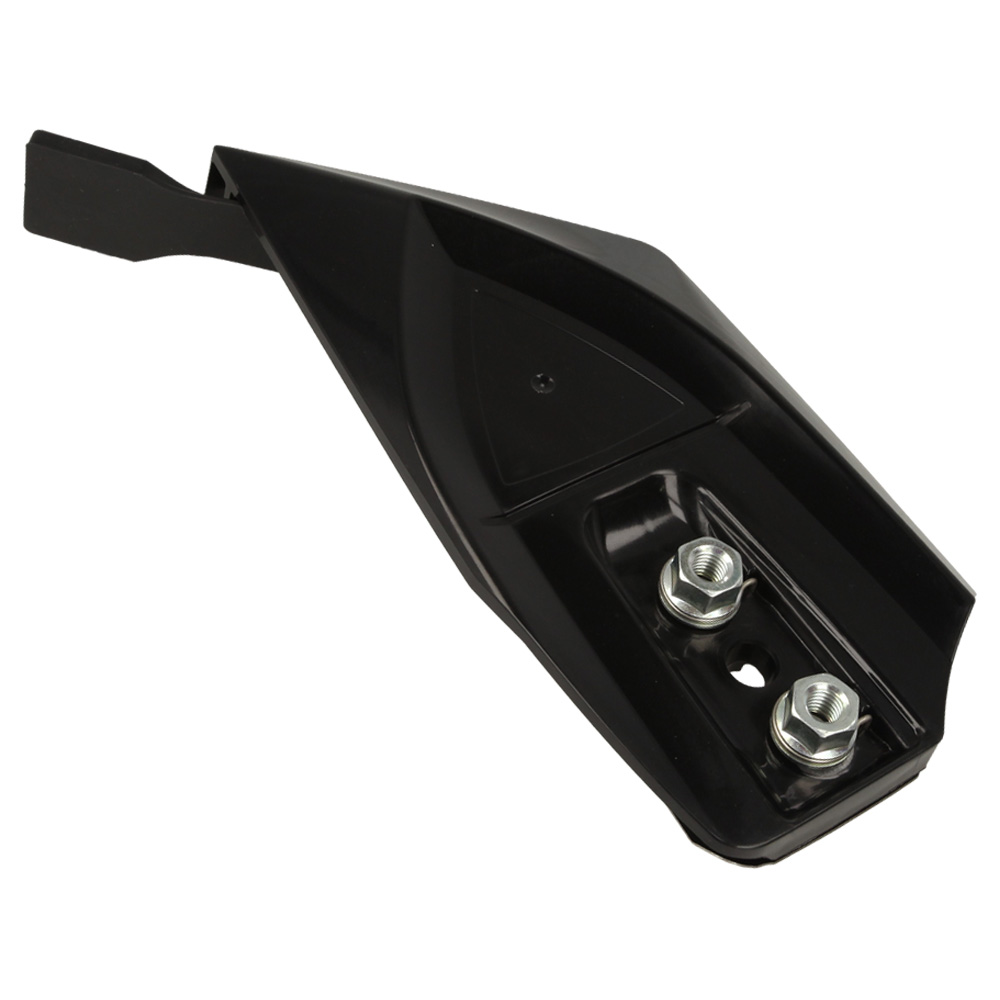

18	ECP100008480 In stock	Sprocket Asy Guard	Was £52.08 £43.40 Special Price £36.22 £30.18
19	ECC300001180 Available to backorder	Sprocket Guard	£13.01 £10.84
20	ECC305000540 Available to backorder	Sprocket Guard Plate	£8.36 £6.97
21	ECC302000030 Available to backorder	Protector	£3.74 £3.12
22	ECV265000550 Available to backorder	8 Nut	£2.65 £2.21
23	ECC649000420 Available to backorder	Hook	£2.92 £2.43
24	ECC305000530 Available to backorder	Sprocket Guard Plate	£8.36 £6.97
25	ECC328000380 Available to backorder	Brake Band	£42.54 £35.45
26	ECC334000380 Available to backorder	Brake Connector	£3.89 £3.24
27	EC9138104010 Available to backorder	Tapping Screw	£0.49 £0.41
28	ECC334000350 Available to backorder	Brake Connector	£3.08 £2.57
29	ECC334000370 Available to backorder	Brake Connector	£7.03 £5.86
31	EC9305030098 Available to backorder	Roller	£0.83 £0.69
32	ECV450002360 Available to backorder	Compression Spring	£6.66 £5.55
33	ECV355000460 Available to backorder	8 Collar	£1.01 £0.84
34	ECV452000860 Available to backorder	Torsion Spring	£6.43 £5.36
35	ECP100008471 Available to backorder	Brake Lever Asy	£19.45 £16.21
36	ECV203002450 Available to backorder	5 Bolt	£1.51 £1.26
37	ECV303000290 Available to backorder	Washer	£0.64 £0.53
38	ECC345000700 Available to backorder	Brake Cover	£7.60 £6.33
39	ECV804000050 Available to backorder	Torx 4 Bolt	£1.01 £0.84

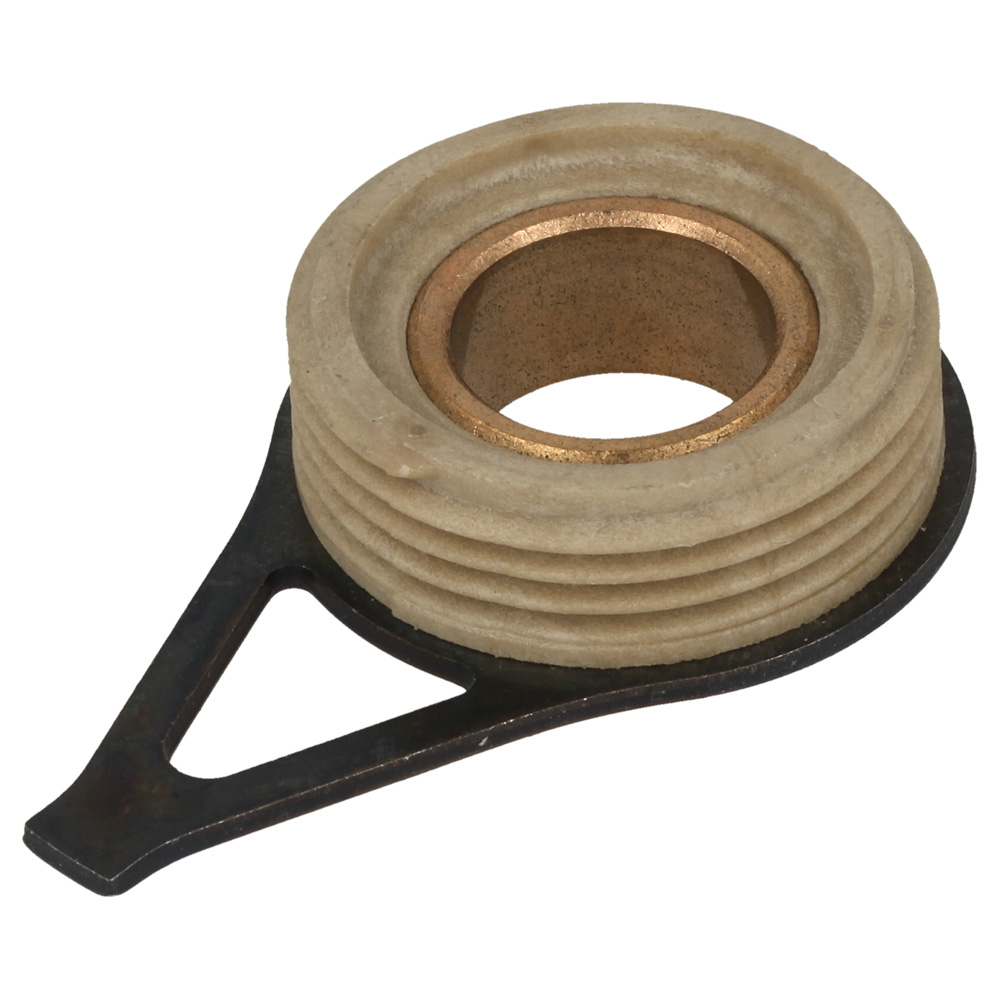

40	ECV652000261 Available to backorder	Worm Gear	£10.88 £9.07
41	EC90070100015 Available to backorder	Retaining Ring	£0.49 £0.41
42	ECX502001300 Available to backorder	Echo Label	£4.01 £3.34
43	ECX505010490 Available to backorder	Caution Label	£3.46 £2.88
