CS 430 Li - 2019 - 295441063/19 - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: CS 430 Li - 2019 - 295441063/19 - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: cs_430_li_295441063_19_handle_upper_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

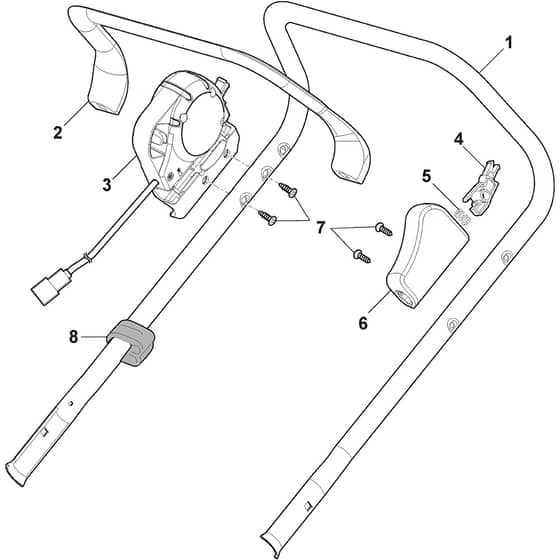

CS 430 Li - 2019 - 295441063/19 - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

Castel Garden CS 430 Li Parts Diagram

Product Name - CS 430 Li

Model Year - 2019

Model Type - CS 430 Li 60

Art.N - 295441063/19

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007644/0 Available to backorder	Handle. Upper Part Black	£29.50 £24.58
2	MO322322881/2 Available to backorder	Lever. Engine Brake Black From S.N 19KA2WBH001409	£7.88 £6.57
3	MO381600575/1 Available to backorder	Dead Hand Switch - Battery	£33.79 £28.16
4	MO322230350/2 Available to backorder	Fulcrum Pin	£1.97 £1.64
5	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
6	MO322785144/1 Available to backorder	Support	£2.81 £2.34
7	MO112728701/0 Available to backorder	Screw	£1.40 £1.17
8	MO122192000/1 Available to backorder	Cable Clamp	£1.82 £1.52
