CS 122c - 2023-2025 - 292616168/STX - Stiga Chainsaw Chainsaw Diagram

Description

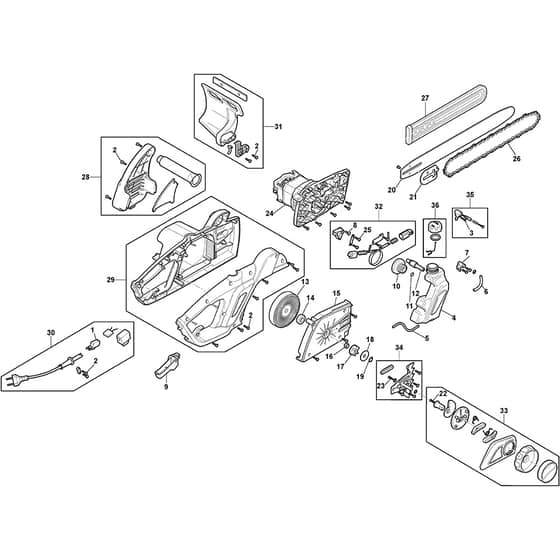

Stiga CS 122c Parts Diagram

Product Name - CS 122c

Model Year - 2023-2025

Model Type - ES 2216 Q

Art.N - 292616168/STX

Engine Model -

	Part No.	Details
1	MO118801612/0 Available to backorder	Power Switch	£4.93 £4.11
3	MO112727356/0 Available to backorder	Screw	£1.87 £1.56
4	MO118805335/0 Available to backorder	Oil Tank	£7.74 £6.45
6	MO118805336/0 Available to backorder	Oil Tube	£2.94 £2.45
7	MO118805337/0 Available to backorder	Oil Tube Connector	£1.55 £1.29
8	MO123878009/0 Available to backorder	Screw	£1.38 £1.15
9	MO118805338/0 Available to backorder	Trigger	£1.55 £1.29
10	MO118805329/0 Available to backorder	Clutch Drum	£10.40 £8.67
12	MO118805339/0 Available to backorder	Axle	£19.98 £16.65
13	MO118805340/0 Available to backorder	Gear	£10.50 £8.75
14	MO118805341/0 Available to backorder	Ball Bearing	£7.33 £6.11
15	MO118805342/0 Available to backorder	Holder	£13.09 £10.91
16	MO118805343/0 Available to backorder	Sleeve	£1.55 £1.29
17	MO118805332/0 Available to backorder	Pinion	£2.94 £2.45
18	MO118805333/0 Available to backorder	Spacer	£1.55 £1.29
19	MO112608500/0 Available to backorder	Seeger	£1.70 £1.42
20	MO118800128/0 Available to backorder	Guide Bar 16"-3.8"-0.050"	£41.81 £34.84
21	MO118810919/0 Available to backorder	Tensioner Cover Plate	£2.69 £2.24
22	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
23	MO112727815/0 Available to backorder	Screw	£1.39 £1.16
24	MO118805344/0 Available to backorder	2200W Electric Motor	£104.18 £86.82
25	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
26	OR91PXL056E In stock	Chain 16"	£16.82 £14.02
27	MO4181307 Available to backorder	Chain Cover 16Inch	£6.05 £5.04
28	MO118805360/0 Available to backorder	Front Handle Kit	£15.78 £13.15
29	MO118805361/0 Available to backorder	Housing Kit	£54.90 £45.75
30	MO118805362/0 Available to backorder	Power Cord & Switches Assy	£23.23 £19.36
31	MO118805363/0 Available to backorder	Hand Guard Kit	£14.80 £12.33
32	MO118805364/0 Available to backorder	Brake System Kit	£13.50 £11.25
33	MO118805365/0 Available to backorder	Chain Tensioner Kit	£17.04 £14.20
34	MO118805366/0 Available to backorder	Spike Kit	£6.77 £5.64
35	MO118805354/0 Available to backorder	Oil Pump Assy	£10.72 £8.93
36	MO118805355/0 Available to backorder	Oil Tank Cap Assembly	£3.79 £3.16
