Billy Goat CR550HC - Compact Power Rake (2016) Main Diagram

Name: Billy Goat CR550HC - Compact Power Rake (2016) Main Diagram
SKU: cr550hc_compact_power_rake_2016_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat CR550HC - Compact Power Rake (2016) Main Diagram

Description

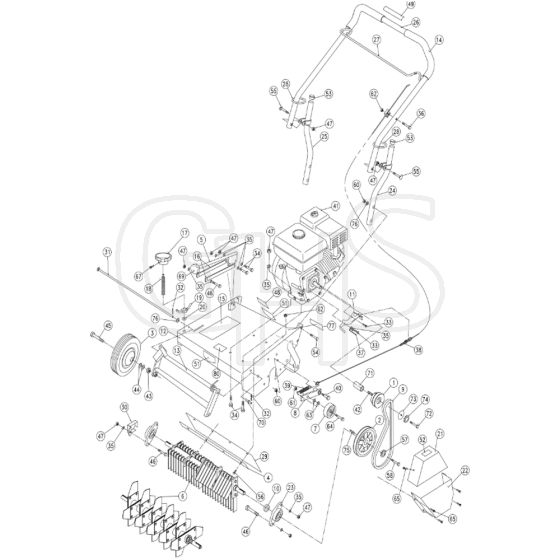

CR550HC Parts Diagram

Be the first to review this product

0 product questions

	Img.	Part No.	Details
1		BG350101 Available to backorder	Pulley 30" Od	£105.50 £87.92
2		BG350206 Available to backorder	Pulley 55" Od X ¾"	£73.46 £61.22
3		BG350236 Available to backorder	Wheel 8" Semi-Pneu White	£44.92 £37.43
6		BG350241-S Available to backorder	Reel Flail Assy (See View B On Right Dropdown)	£415.20 £346.00
7		BG350114 Available to backorder	Pulley Idler 275"	£39.68 £33.07
9		BG350207 Available to backorder	Belt 5L X 34"	£54.26 £45.22
10		BG350118 Available to backorder	Spacer Reel Pulley	£14.16 £11.80
13		BG350213 Available to backorder	Frame Front Wa	£220.82 £184.02
14		BG400570 Available to backorder	Grip 1" X 13"	£6.74 £5.62
17		BG850154 Available to backorder	Knob Height Adj	£9.80 £8.17
18		BG810538 Available to backorder	Stud 3/4"-10 X 5 1/2" Pltd	£40.76 £33.97
19		BG800227 Available to backorder	Locknut Assy	£23.82 £19.85
20	$Washer 3\4$ $Washer 3\4$	BG800109 Available to backorder	Washer 3\4" Nylon	£1.08 £0.90
23		BG350209 Available to backorder	Bearing ¾" Cast Flange	£39.46 £32.88
24		BG350134 Available to backorder	Handle Lower Lh Wa	£48.95 £40.79
25		BG350135 Available to backorder	Handle Lower Rh Wa	£48.95 £40.79
28		BG350138 Available to backorder	Loop Folding Handle	£11.59 £9.66
32		BG900471 Available to backorder	Pin Cotter 1/8" X 1" Z/P	£1.28 £1.07
35		BG8171002 Available to backorder	Washer 1/4" Flat Z/P	£0.78 £0.65
36		BG8041008 Available to backorder	Screwcap 1/4"-20X15"	£1.20 £1.00
37		BG350301 Available to backorder	Belt Finger Wire	£7.88 £6.57
38		BG350181 Available to backorder	Cable Clutch Reel Pr500	£31.39 £26.16
40		BG500114 Available to backorder	Bolt Shoulder 1/2" X 1"	£8.72 £7.27
42		BG9201078 Available to backorder	Key 3/16" X 1"	£3.12 £2.60
44		BG8172011 In stock	Washer 1/2 Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
46		BG8041029 Available to backorder	Screwcap 5/16"-18X1 1/4" Hcs Zp	£0.97 £0.81
47		BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
48		BG810736 Available to backorder	Label Danger Thrown Object	£3.71 £3.09
51		BG400424 Available to backorder	Label Warning	£3.71 £3.09
52		BG900327 Available to backorder	Label Danger Guard	£3.71 £3.09
53		BG890132 Available to backorder	Plug Cap 1" Rd	£0.97 £0.81
55		BG8024043 Available to backorder	Bolt Carraige 5/16-18 X 1 3/4	£0.97 £0.81
56		BG8041006 Available to backorder	Screwcap 1/4-20X1"	£0.97 £0.81
57		BG400502 Available to backorder	Lock Washer Twisted Tooth	£4.20 £3.50
58		BG8041050 Available to backorder	Screwcap 3/8-16X1" Reel Assembly	£1.20 £1.00
60		BG8160003 Available to backorder	Nut Lock 3/8-16	£1.20 £1.00
61		BG8161042 Available to backorder	Nut Lock 3/8-16 Thin	£1.20 £1.00
62		BG8160001 Available to backorder	Nut Lock 1/4-20	£0.97 £0.81
63		BG8171003 Available to backorder	Washer 5/16 Flat Cut	£0.78 £0.65
64		BG8041052 Available to backorder	Screwcap 3/8-16X15"	£1.28 £1.07
67		BG8059143 Available to backorder	Screw Mach #10-24X2"	£0.97 £0.81
70		BG8172009 Available to backorder	Washer 5/16 Sae	£1.28 £1.07
76		BG8171004 Available to backorder	3/8 Flat Cut Washer	£1.20 £1.00
