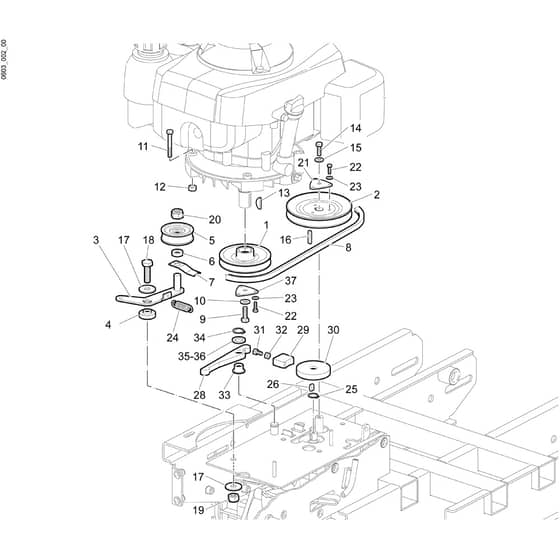

CR 340 H - Oleo-Mac Transporter Transmission Diagram

Name: CR 340 H - Oleo-Mac Transporter Transmission Diagram
SKU: cr_340_h_transmission-group
Price: 0.4 GBP
Availability: InStock

Part No. cr_340_h_transmission-group

Description

Oleo-Mac CR 340 H Parts Diagram

	Part No.	Details
0	EFYP0002295B Available to backorder	Drive Assy	£1,437.17 £1,197.64
5	EFYF1231615 Available to backorder	Bearing	£9.00 £7.50
11	EF3806074R Available to backorder	Screw	£1.08 £0.90
12	EFYN1457570 Available to backorder	Nut	£2.34 £1.95
14	EF3806063 Available to backorder	Screw	£1.08 £0.90
17	EFYN4382550 Available to backorder	Washer	£0.82 £0.68
18	EFYN6332800 Available to backorder	Screw	£2.00 £1.67
19	EF3914014R Available to backorder	Nut	£1.08 £0.90
22	EF301000042 Available to backorder	Screw	£3.48 £2.90
23	EFYN4358110 Available to backorder	Washer	£0.48 £0.40
32	EF094600112 Available to backorder	Nut	£1.08 £0.90
34	EF3024014R Available to backorder	Seeger	£1.08 £0.90
