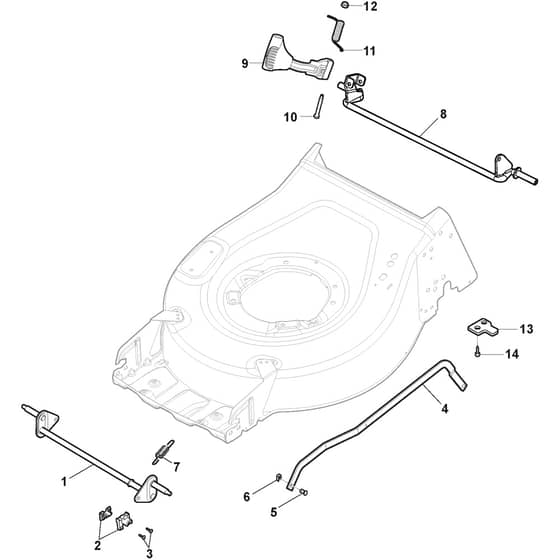

CP1 480 - 2019 - 2L0481093/19 - Castel Garden Rotary Mower Height Adjusting Diagram

Name: CP1 480 - 2019 - 2L0481093/19 - Castel Garden Rotary Mower Height Adjusting Diagram
SKU: cp1_480_2l0481093_19_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CP1 480 - 2019 - 2L0481093/19 - Castel Garden Rotary Mower Height Adjusting Diagram

Description

Castel Garden CP1 480 Parts Diagram

Product Name - CP1 480

Model Year - 2019

Model Type - CP1 480

Art.N - 2L0481093/19

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302943/0 Available to backorder	Axle. Front Wheels To S.N 20JA2WBH024643	£19.61 £16.34
1	MO381302943/1 Available to backorder	Axle. Front Wheels From S.N 20JA2WBH024644	£29.56 £24.63
2	MO322785305/1 In stock	Support	£2.68 £2.23
4	MO322869733/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH048300	£15.62 £13.02
4	MO322869733/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH048299	£17.45 £14.54
5	MO122519823/0 In stock	Pin	£2.26 £1.88
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO122446193/0 Available to backorder	Spring	£4.61 £3.84
8	MO381302945/0 Available to backorder	Rear Wheel Axle To S.N 21AA2WBH044794	£29.56 £24.63
8	MO381302945/1 Available to backorder	Rear Wheel Axle From S.N 21AA2WBH044795	£42.23 £35.19
9	MO381003356/1 Available to backorder	Wheels Rear Adj. Lever From S.N 20BA2WBH076281	£5.76 £4.80
10	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
11	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO322545157/1 Available to backorder	Front Axle Plate	£5.21 £4.34
14	MO112728697/0 In stock	Screw	£1.55 £1.29
