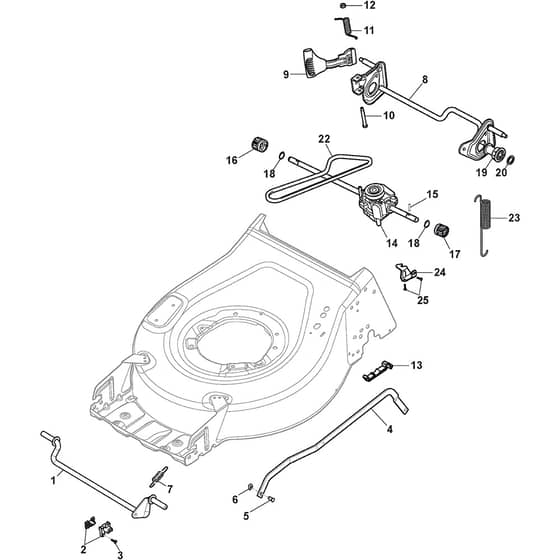

CP1 434-S - 2019 - 2L0432043/19 - Castel Garden Rotary Mower Height Adjusting Diagram

Name: CP1 434-S - 2019 - 2L0432043/19 - Castel Garden Rotary Mower Height Adjusting Diagram
SKU: cp1_434_s_2l0432043_19_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. cp1_434_s_2l0432043_19_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CP1 434-S - 2019 - 2L0432043/19 - Castel Garden Rotary Mower Height Adjusting Diagram

Description

Castel Garden CP1 434-S Parts Diagram

Product Name - CP1 434-S

Model Year - 2019

Model Type - CP1 434-S

Art.N - 2L0432043/19

Engine Model -

	Part No.	Details
1	MO381302941/0 Available to backorder	Axle. Front Wheels To S.N 20CA2WBH052922	£21.95 £18.29
1	MO381302941/1 Available to backorder	Axle. Front Wheels From S.N 20CA2WBH052923	£29.57 £24.64
2	MO322785305/1 In stock	Support	£2.69 £2.24
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869731/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH076123	£18.16 £15.13
5	MO122519823/0 In stock	Pin	£2.24 £1.87
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302851/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH045271	£45.04 £37.53
9	MO381003356/1 In stock	Wheels Rear Adj. Lever From S.N 20BA2WBH076281	£5.76 £4.80
10	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
11	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO322785500/0 In stock	Support	£1.84 £1.53
14	MO181003134/0 Available to backorder	Gear Box	£98.56 £82.13
15	MO122753000/0 In stock	Pin	£1.55 £1.29
16	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
17	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
18	MO112608600/0 In stock	Seeger	£1.55 £1.29
19	MO322042066/0 In stock	Bushing	£1.84 £1.53
20	MO112521371/0 Available to backorder	Washer	£1.63 £1.36
22	MO135063710/0 In stock	Belt	£7.63 £6.36
23	MO122430254/0 In stock	Spring	£4.08 £3.40
24	MO322778473/1 Available to backorder	Bracket	£2.22 £1.85
25	MO112728904/0 Available to backorder	Self-Tapping Screw K60 X 22 Wn1451	£1.55 £1.29
